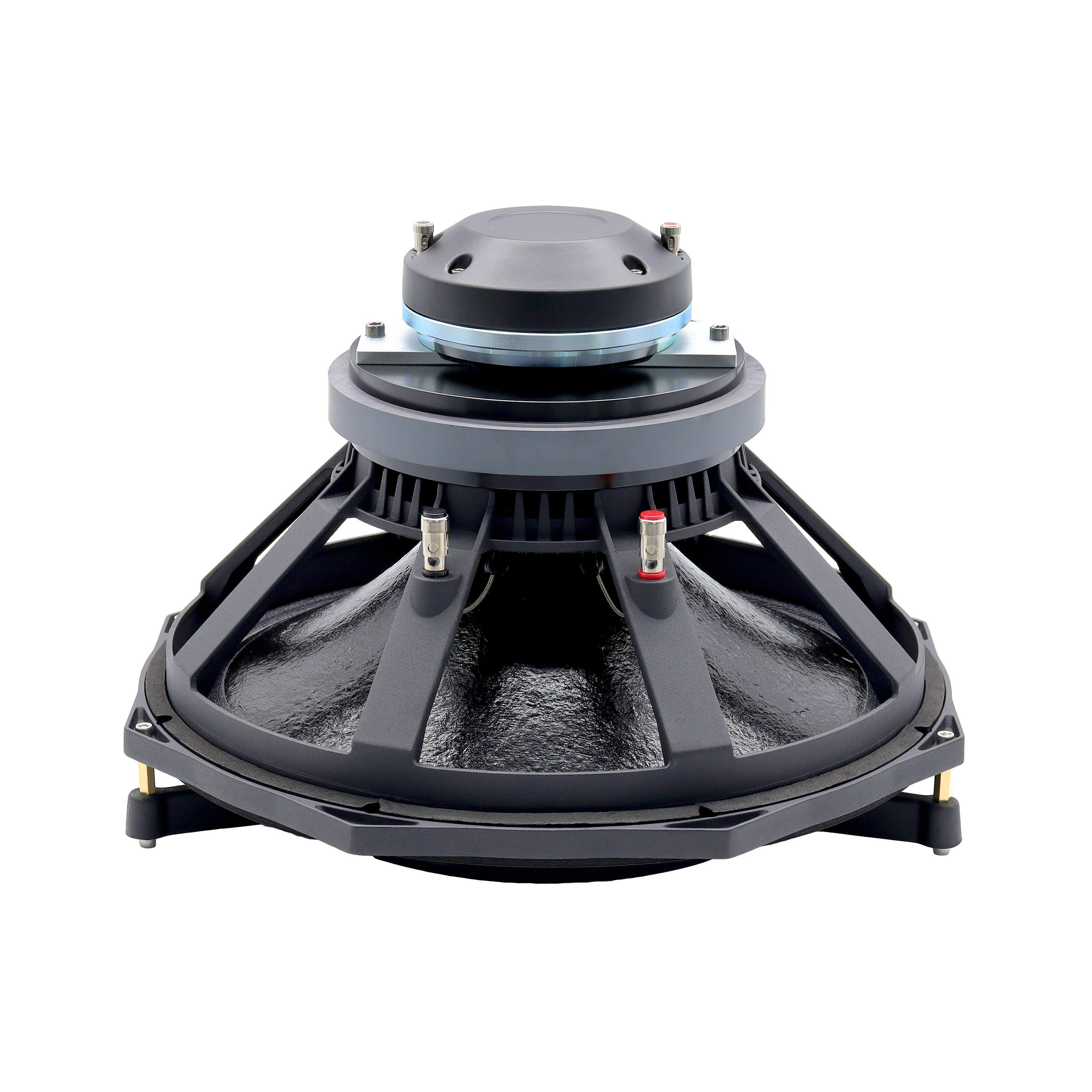

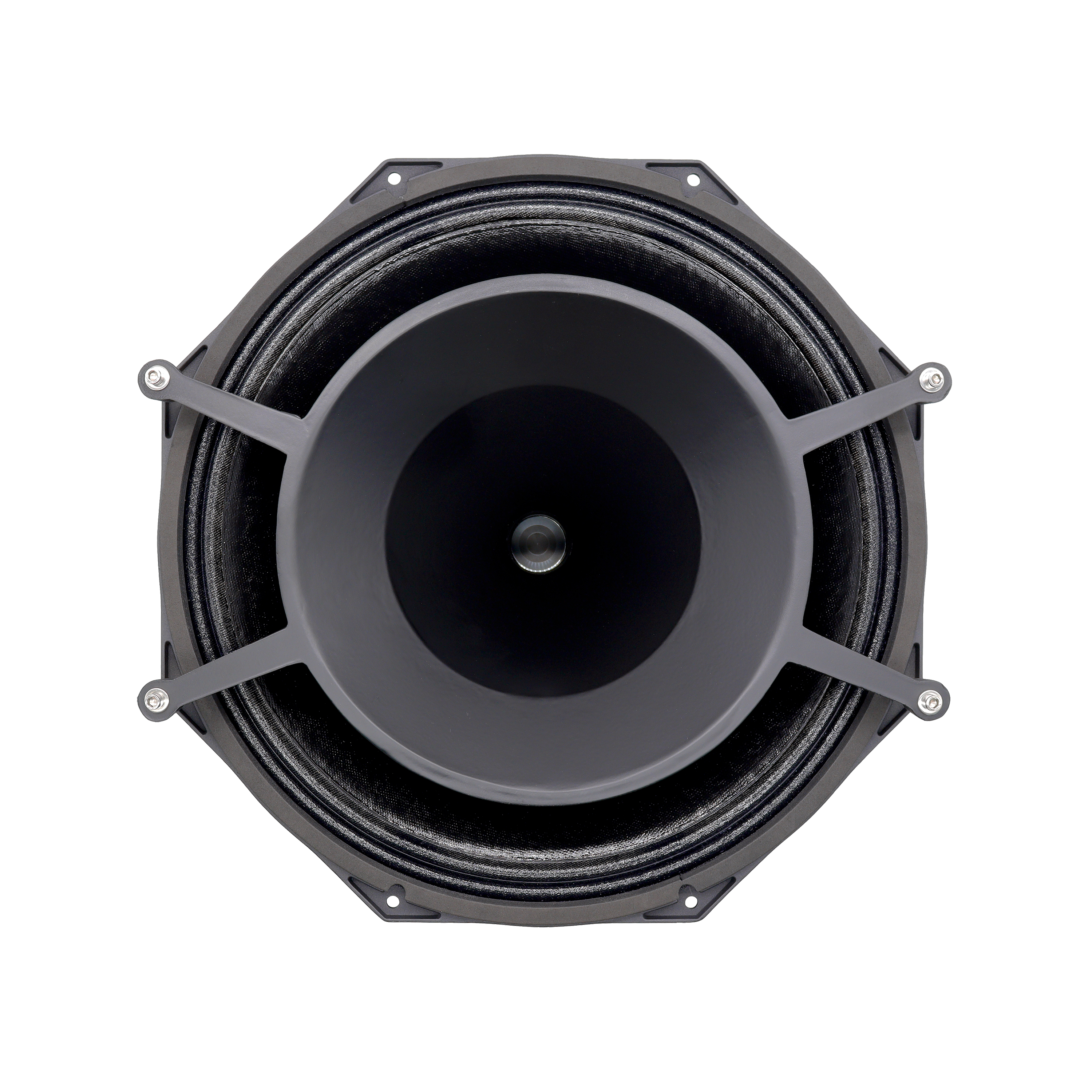

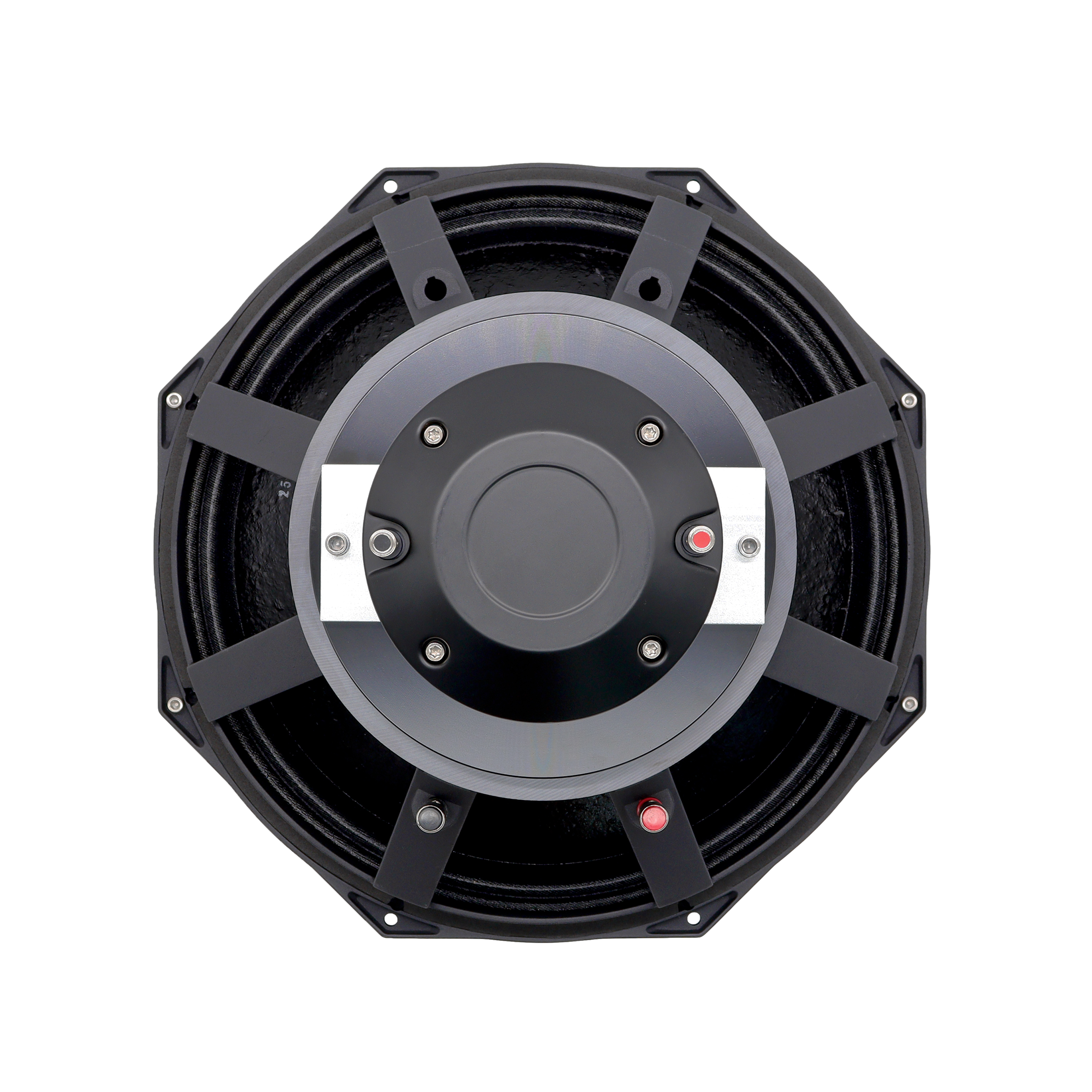

| LF+HF+Horn: | |
|---|---|
| Quantity: | |
Features
 | LF | ||
| 800W continuous program power capacity | |||
| 77 mm(3.0 in) Copper voice coil | |||
| 35-1000Hz response | |||
99dB sensitivity | |||
| HF | |||
| 160W continuous program power capacity | |||
| 75mm(3.0 in) Aluminium voice coil | |||
| 500-18000Hz response | |||
109dB sensitivity | |||

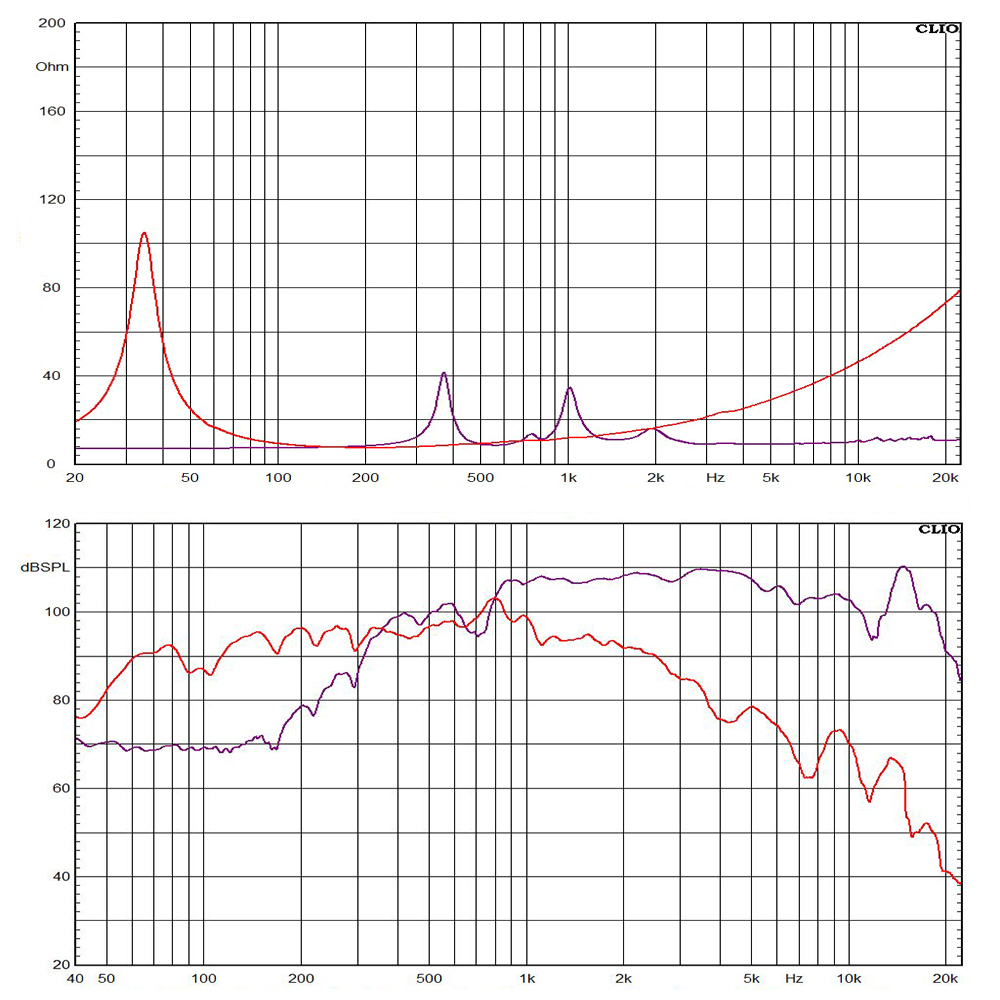

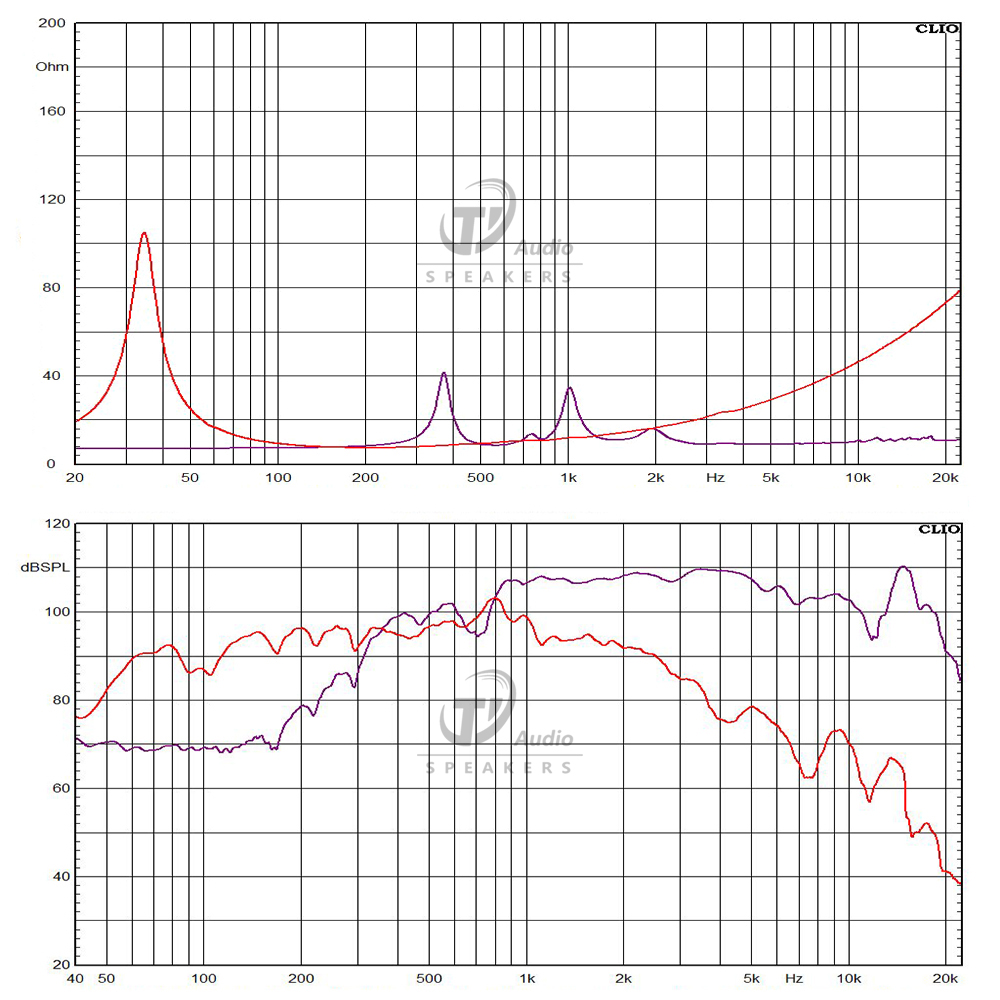

Specifications
| TYPE | FE COAXIAL | Minimum Impedance | 7.3Ω (LF) , 8.4Ω (HF) | |
Nominal Diameter | 380/15 (mm/in) | Frequency Range | 35-18000 Hz | |
| Rated Impedance | 8 (ohm) | Magnetic Material | Ferrite Ring | |
| LF UNIT | ||||
| Nominal Power Handling | 400 (Watts) | Voice Coil Diameter | 77/3.0 (mm/in) | |
| Continuous Power Handling | 800 (Watts) | Winding Material | Copper | |
| Sensitivity | 99 (dB) | Former Material | Glass Fibre | |
| Frequency Range | 35-1000 (HZ) | Winding Depth | 20/0.79 (mm/in) | |
Magnetic Gap Depth | 10/0.39 (mm/in) | |||
 HF UNIT | ||||
| Nominal Power Handling | 80 (Watts) | Voice Coil Diameter | 75/3.0 (mm/in) | |
| Continuous Power Handling | 160 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 109 (dB) | Former Material | Kapton | |
| Frequency Range | 500-18000 (HZ) | Diaphragm Material | Titanium |
| MORE→ |
T/S PARAMETERS
| Fs | 34 (Hz) | Mms | 108 (g) | |
| Re | 5.5 (ohm) | Vas | 215 (liters) | |
| Qms | 5.61 | Sd | 892 (cm2) | |
| Qes | 0.31 | L1kHz | 1.03 (mh) | |
| Qts | 0.29 | Xmax | ±7.5 (mm) | |
| Bl | 20.5 (T.M) | EBP | 109 (hz) |
Mounting And Shipping
| Overall Diameter | 406/15.98 (mm/in) | Speaker Depth | 270/10.63 (mm/in) | |
| Bolt Circle Diameter | 388/15.28 (mm/in) | Flange And Gasket Thickness | 18/0.71 (mm/in) | |
| Mount Baffle Cut-out | 354/13.94 (mm/in) | N.W.(1 pc) | 11.2 / 24.6 (kg/lb) | |
| Mounting Hole | 4 | G.W. (1 pc) | 14.8 / 32.6 (kg/lb) | |
| Shipping Size (1 pc) | 460x460x270 (mm) | |||
| MORE→ |
