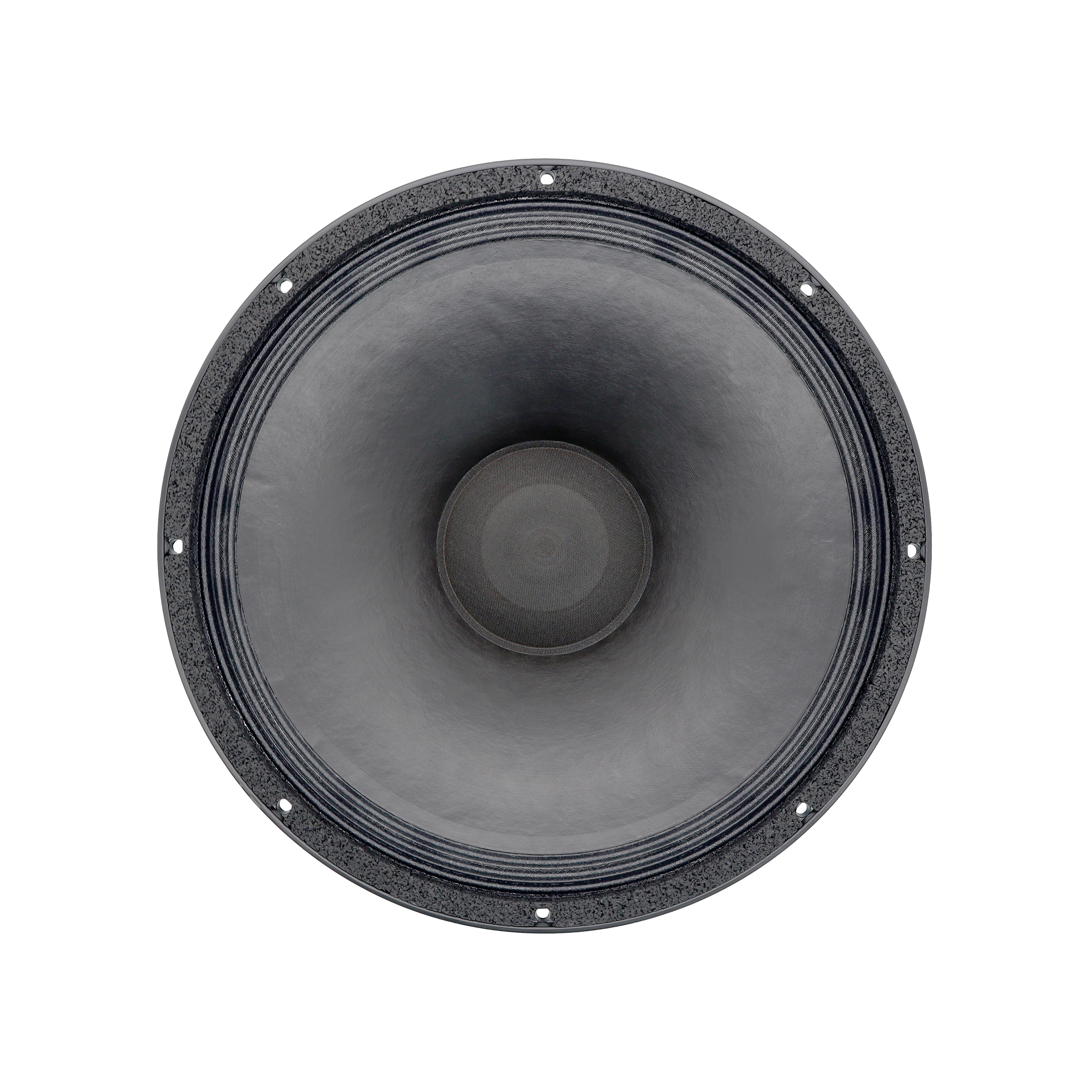

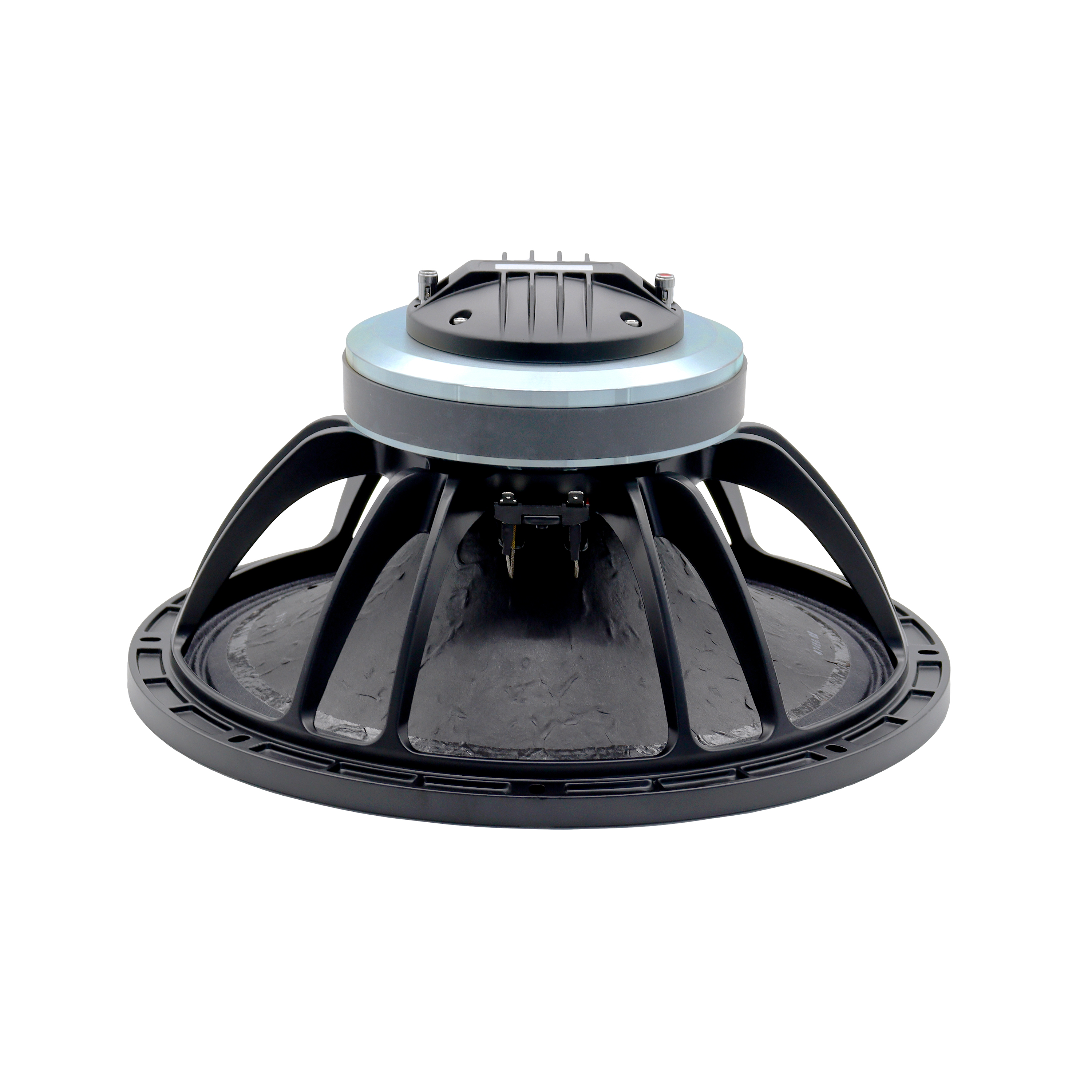

Features
 | LF | ||
| 800W continuous program power capacity | |||
| 76 mm(3.0 in) Copper voice coil | |||
| 40-1800Hz response | |||
97dB sensitivity | |||
| HF | |||
| 160W continuous program power capacity | |||
| 75mm(3.0 in) Aluminium voice coil | |||
| 1200-18000Hz response | |||
107dB sensitivity | |||

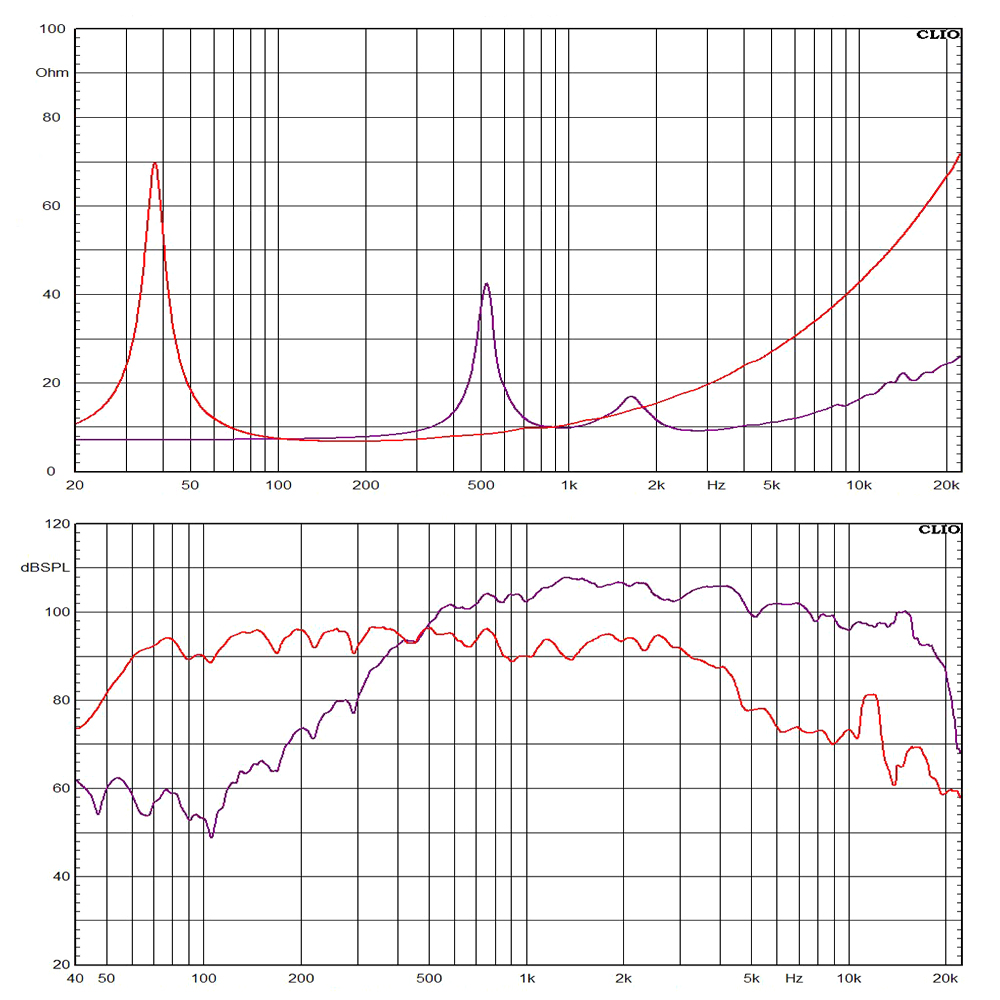

Specifications
| TYPE | FE COAXIAL | Minimum Impedance | 6.8Ω (LF) , 6.7Ω (HF) | |
Nominal Diameter | 380/15 (mm/in) | Frequency Range | 40-18000 Hz | |
| Rated Impedance | 8 (ohm) | Magnetic Material | Ferrite Ring | |
| LF UNIT | ||||
| Nominal Power Handling | 400 (Watts) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Continuous Power Handling | 800 (Watts) | Winding Material | Copper | |
| Sensitivity | 97 (dB) | Former Material | Glass Fibre | |
| Frequency Range | 40-1800 (HZ) | Winding Depth | 19/0.75 (mm/in) | |
Magnetic Gap Depth | 8/0.31 (mm/in) | |||
 HF UNIT | ||||
| Nominal Power Handling | 80 (Watts) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Continuous Power Handling | 160 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 107 (dB) | Former Material | Kapton | |
| Frequency Range | 1200-18000 (HZ) | Diaphragm Material | Titanium |
| MORE→ |
T/S PARAMETERS
| Fs | 37 (Hz) | Mms | 101 (g) | |
| Re | 5.2 (ohm) | Vas | 188 (liters) | |
| Qms | 6.57 | Sd | 876 (cm2) | |
| Qes | 0.53 | L1kHz | 0.99 (mh) | |
| Qts | 0.49 | Xmax | ±7.5 (mm) | |
| Bl | 15.4 (T.M) | EBP | 70 (hz) |
Mounting And Shipping
| Overall Diameter | 394/15.5 (mm/in) | Speaker Depth | 201/7.91 (mm/in) | |
| Bolt Circle Diameter | 374/14.7 (mm/in) | Flange And Gasket Thickness | 14.5/0.57 (mm/in) | |
| Mount Baffle Cut-out | 353/13.9 (mm/in) | N.W.(1 pc) | 9.2 / 20.2 (kg/lb) | |
| Mounting Hole | 8 | G.W. (1 pc) | 12.2 / 26.8 (kg/lb) | |
| Shipping Size (1 pc) | 460x460x270 (mm) | |||
