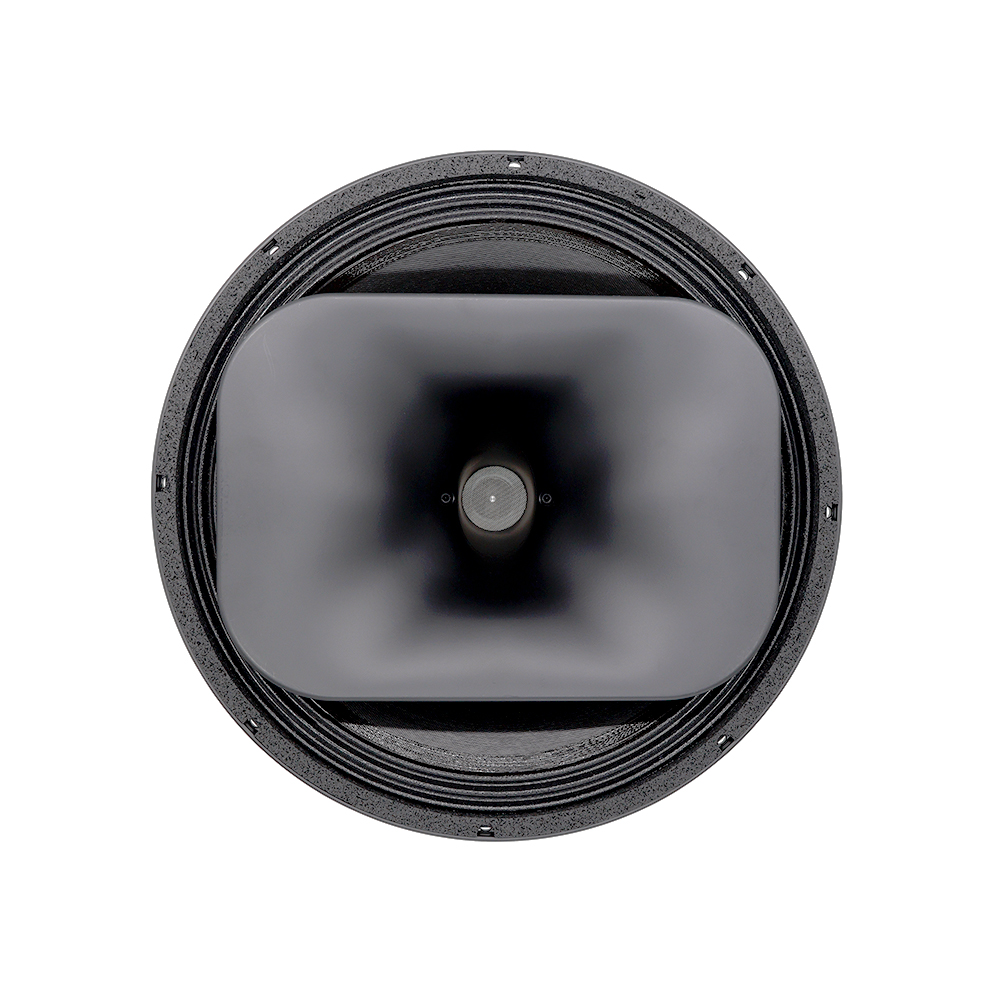

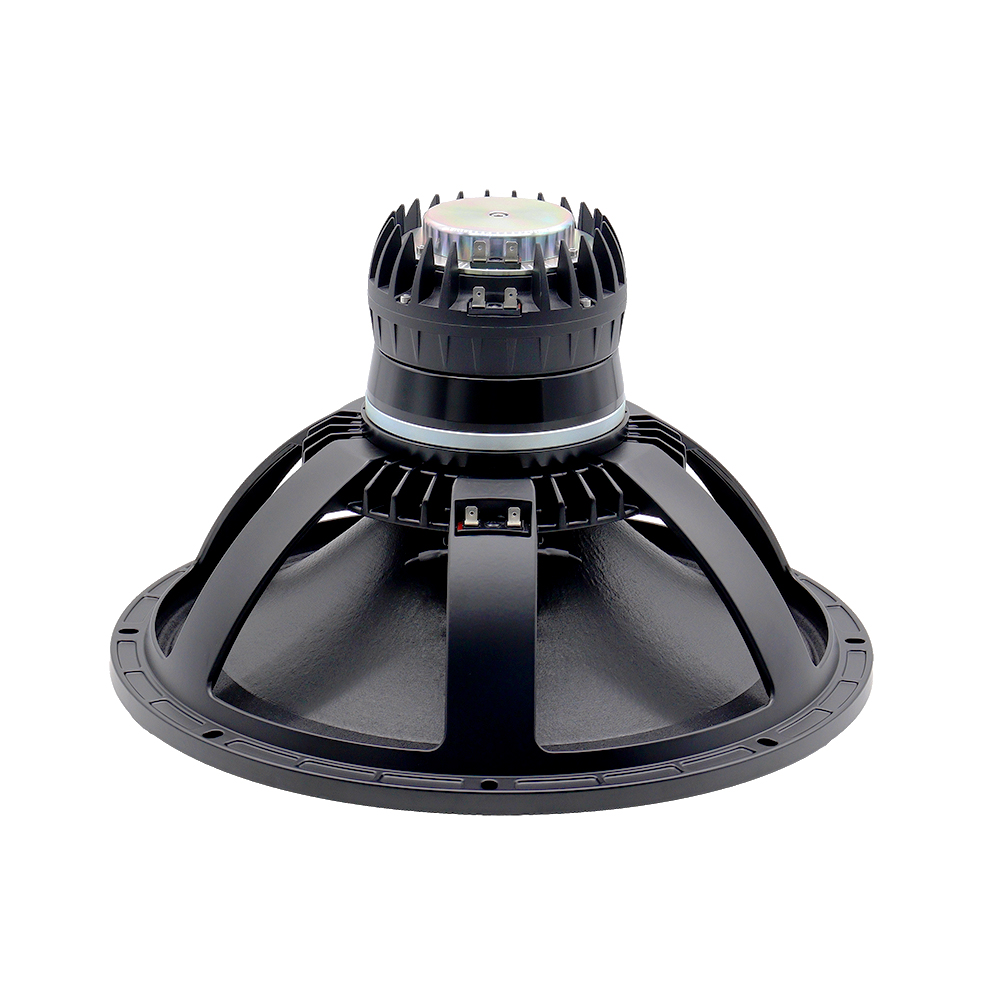

Features
 | LF 1600 W continuous program power capacity 100 mm(4.0 in) Aluminium voice coil 44-800 Hz response 100 dB sensitivity |
MID 220 W continuous program power capacity 100 mm(4.0 in) Aluminium voice coil 500-5500 Hz response 109 dB sensitivity | |
HF 160 W continuous program power capacity 65 mm(2.5 in) Aluminium voice coil 3500-18000 Hz response 109 dB sensitivity |
Specifications
| TYPE | ND TRIAXIALS | Minimum Impedance | 6.6Ω (LF) ,6.1Ω (MID), 10Ω (HF) | |
Nominal Diameter | 460/18 (mm/in) | Frequency Range | 44-18000 Hz | |
| Rated Impedance | 8 (ohm) | Magnetic Material | Neodymium Ring | |
| Nominal Coverage | 60° x 40° | |||
| LF UNIT | ||||
| Nominal Power Handling | 800 (Watts) | Voice Coil Diameter | 100/4.0 (mm/in) | |
| Continuous Power Handling | 1600 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 100 (dB) | Former Material | Glass Fibre | |
| Frequency Range | 44-800 (HZ) | Winding Depth | 25/0.98 (mm/in) | |
Magnetic Gap Depth | 10.2/0.4 (mm/in) | |||
| MF UNIT | ||||
| Nominal Power Handling | 110 (Watts) | Voice Coil Diameter | 100/4.0 (mm/in) | |
| Continuous Power Handling | 220 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 109 (dB) | Former Material | Kapton | |
| Frequency Range | 500-5500 (HZ) | Diaphragm Material | Polyimide | |
 HF UNIT | ||||
| Nominal Power Handling | 80 (Watts) | Voice Coil Diameter | 65/2.5 (mm/in) | |
| Continuous Power Handling | 160 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 109 (dB) | Former Material | Kapton | |
| Frequency Range | 3500-18000 (HZ) | Diaphragm Material | Polyimide |
| MORE→ |

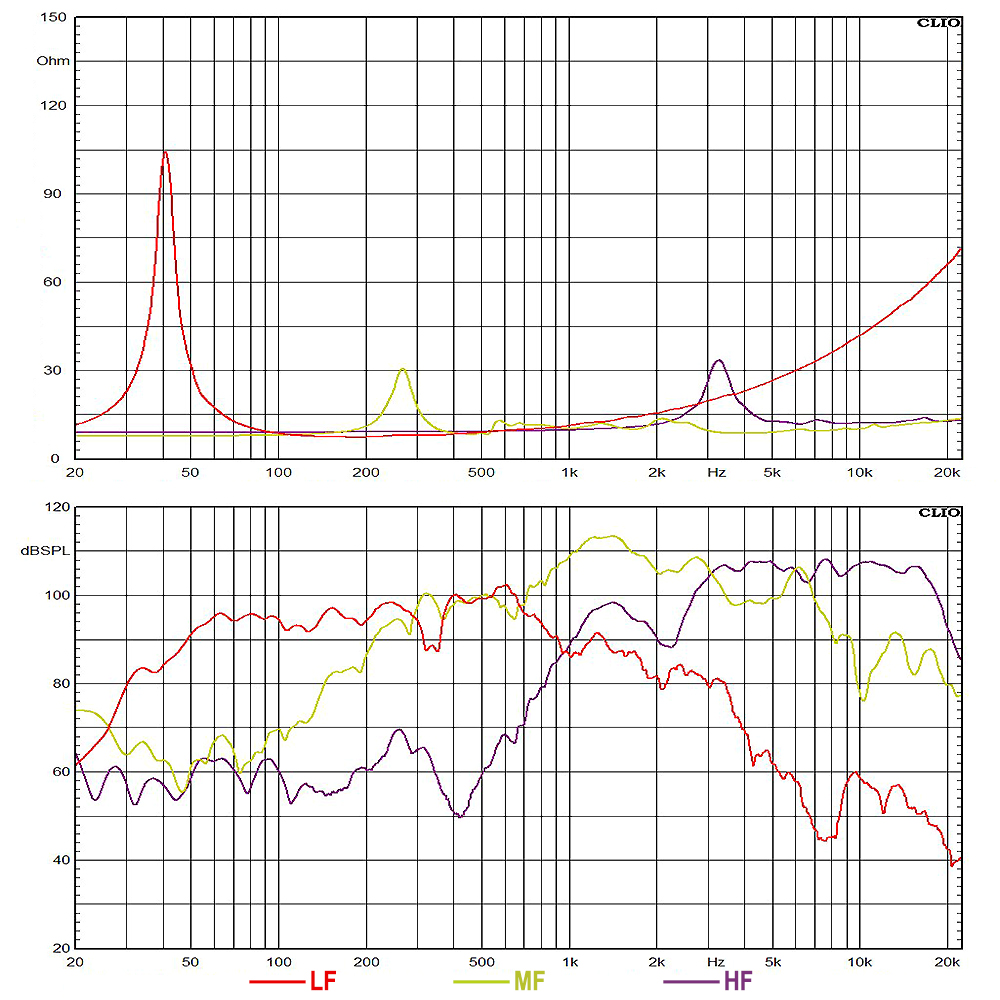

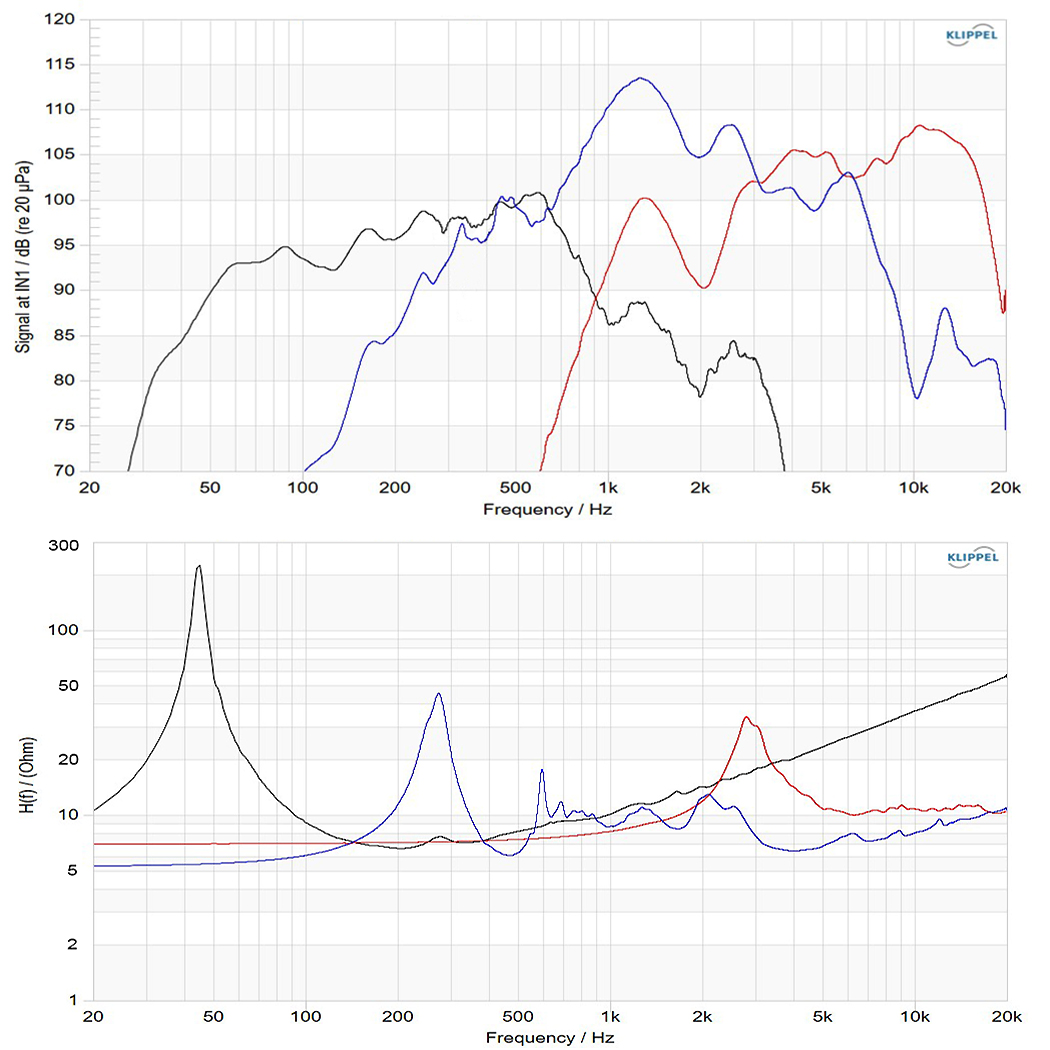

T/S PARAMETERS
| Fs | 44 (Hz) | Mms | 168 (g) | |
| Re | 5.4 (ohm) | Vas | 158 (liters) | |
| Qms | 15.5 | Sd | 1219 (cm2) | |
| Qes | 0.38 | L1kHz | 1.09 (mh) | |
| Qts | 0.37 | Xmax | ±10 (mm) | |
| Bl | 26 (T.M) | EBP | 116 (hz) |

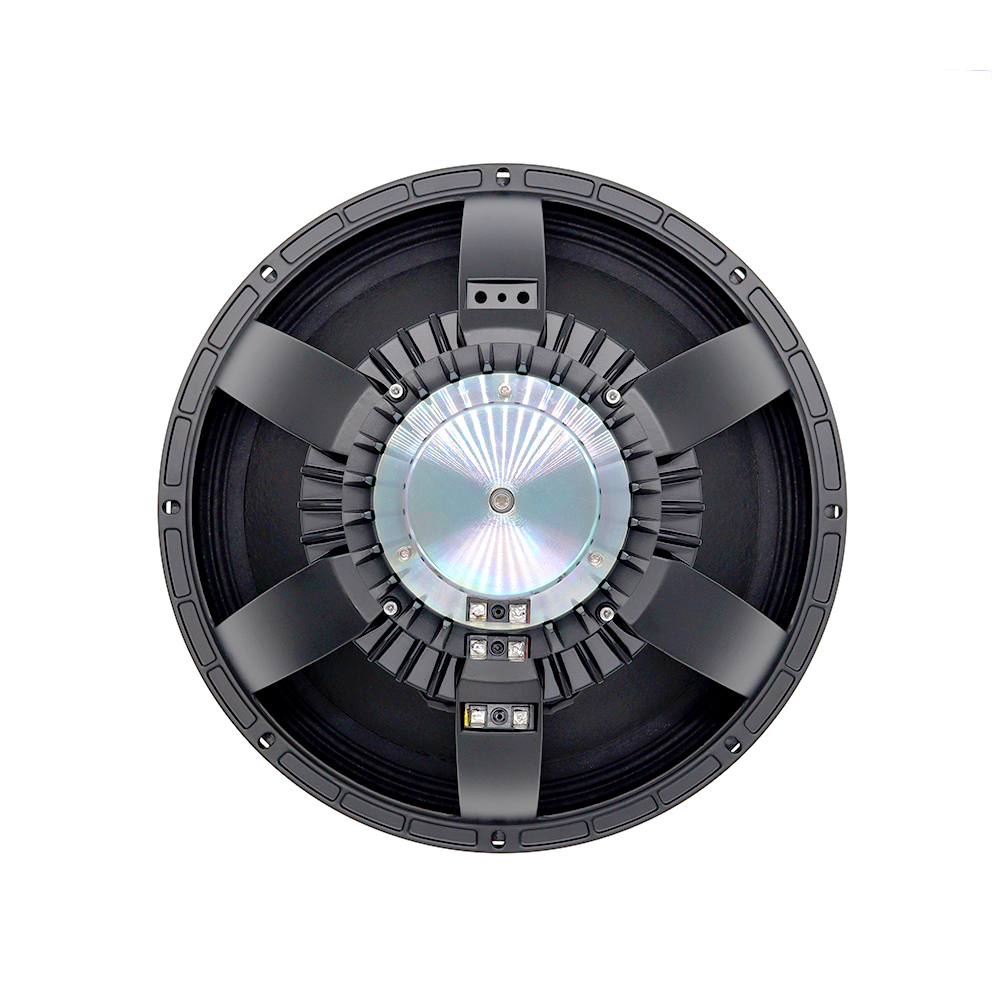

Mounting And Shipping
| Overall Diameter | 460/18.1 (mm/in) | Speaker Depth | 302/11.9 (mm/in) | |
| Bolt Circle Diameter | 440/17.3 (mm/in) | Flange And Gasket Thickness | 16.5/0.65 (mm/in) | |
| Mount Baffle Cut-out | 420/16.5 (mm/in) | N.W.(1 pc) | 12.6 / 27.7 (kg/lb) | |
| Mounting Hole | 8 | |||
