Features
 | 98 dB sensitivity | |

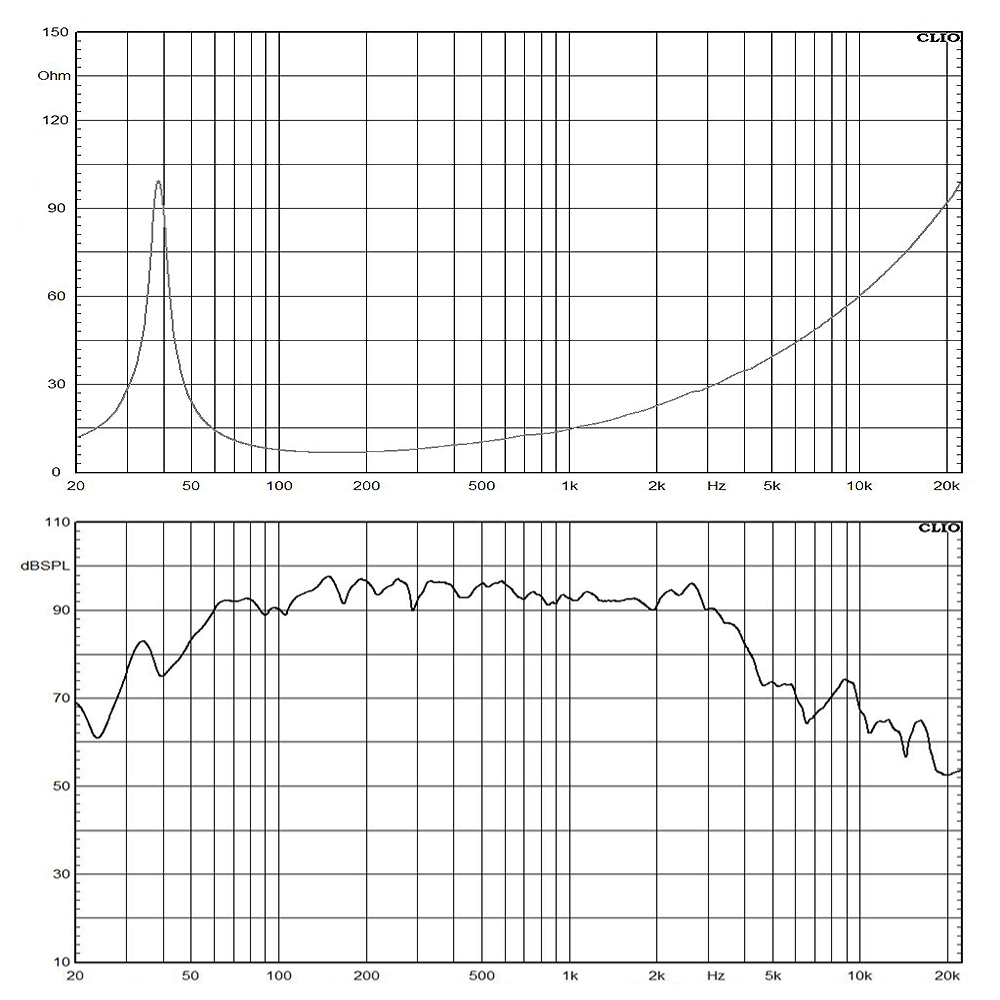

 40-2000 Hz response | ||
| 76mm(3.0 in) copper voice coil | ||
| 1000W continuous program power capacity | ||
Specifications
| TYPE | FE WOOFER | Frequency Range | 40-2000 (Hz) | |
| Nominal Diameter | 380/15 (mm/in) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Copper | |
| Minimum Impedance | 6.6 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 500 (Watts) | Winding Depth | 19/0.75 (mm/in) | |
| Continuous Power Handling | 1000 (Watts) | Magnetic Gap Depth | 10/0.39 (mm/in) | |
| Sensitivity | 98 (dB) | Magnetic Material | Ferrite ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 39 (Hz) | Mms | 110 (g) | |
| Re | 5.2 (ohm) | Vas | 171 (liters) | |
| Qms | 7.7 | Sd | 892 (cm2) | |
| Qes | 0.42 | L1kHz | 1.6 (mh) | |
| Qts | 0.4 | Xmax | ±7 (mm) | |
| Bl | 18 (T.M) | EBP | 93 (Hz) |
Mounting And Shipping
| Overall Diameter | 395/15.5 (mm/in) | Flange And Gasket Thickness | 15/0.59 (mm/in) | |
| Bolt Circle Diameter | 374/14.7 (mm/in) | N.W. (1 pc) | 7.15 / 15.7 (mm/in) | |
| Mount Baffle Cut-out | 355/13.9 (mm/in) | G.W. (1 pc) | 10.2 / 22.5 (kg/lb) | |
| Speaker Depth | 162/6.38 (mm/in) | Shipping Size (1 pc) | 460x460x270 (mm) | |
| Mounting Hole | 8 | |||
| MORE→ |
