Features
 | 95 dB sensitivity | ||

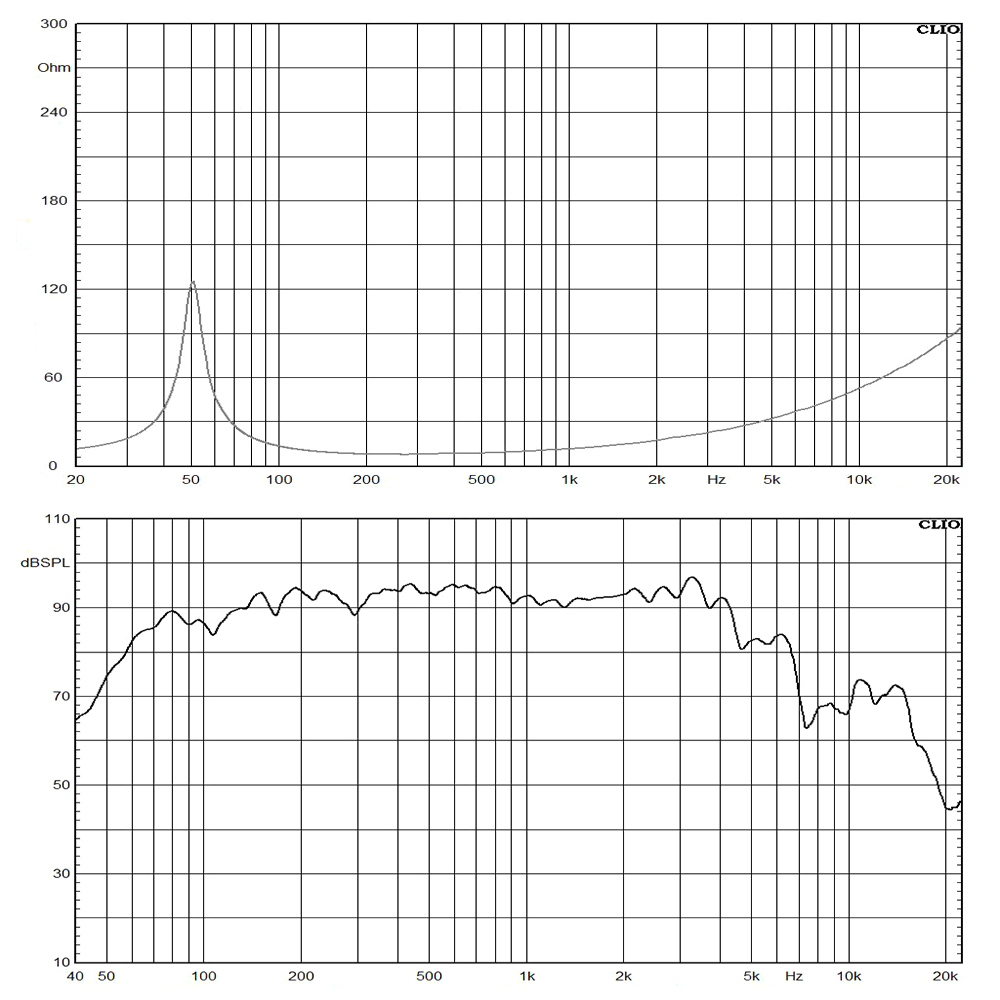

 50-3000 Hz response | |||
| 65mm(2.5 in) Aluminium voice coil | |||
| 600W continuous program power capacity | |||
Specifications
| TYPE | FE WOOFER | Frequency Range | 50-3000 (Hz) | |
| Nominal Diameter | 250/10 (mm/in) | Voice Coil Diameter | 65/2.5 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 7.7 (ohm) | Former Material | Kapton | |
| Nominal Power Handling | 300 (Watts) | Winding Depth | 16.3/0.64 (mm/in) | |
| Continuous Power Handling | 600 (Watts) | Magnetic Gap Depth | 9/0.35 (mm/in) | |
| Sensitivity | 96 (dB) | Magnetic Material | Ferrite Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 50 (Hz) | Mms | 47 (g) | |
| Re | 5.6 (ohm) | Vas | 39 (liters) | |
| Qms | 6.8 | Sd | 363 (cm2) | |
| Qes | 0.32 | L1kHz | 1.06 (mh) | |
| Qts | 0.3 | Xmax | ±5.9 (mm) | |
| Bl | 16.2 (T.M) | EBP | 156 (Hz) |
Mounting And Shipping
| Overall Diameter | 266/10.47 (mm/in) | Flange And Gasket Thickness | 12/0.47 (mm/in) | |
| Bolt Circle Diameter | 251/9.88 (mm/in) | N.W. (1 pc) | 4.8 / 10.5 (kg/lb) | |
| Mount Baffle Cut-out | 238/9.37 (mm/in) | G.W. (2 pcs) | 11.6 / 25.6 (kg/lb) | |
| Speaker Depth | 135/5.31 (mm/in) | Shipping Size (2 pcs) | 320x320x380 (mm) | |
| Mounting Hole | 8 | |||
