| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 100 dB sensitivity | ||

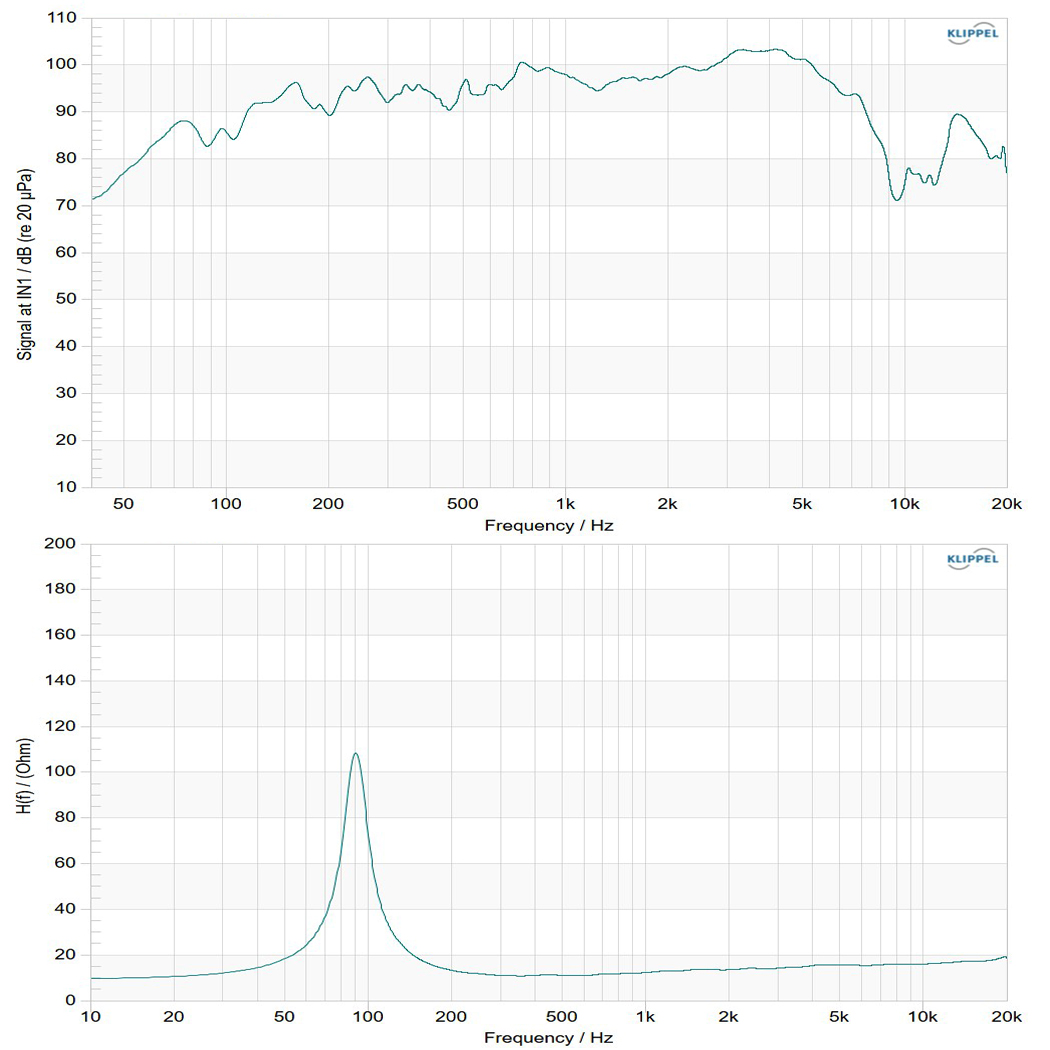

| 90-3000 Hz response | |||
| 50mm(2.0 in) Aluminium voice coil | |||
| 300W continuous program power capacity | |||
Specifications
| TYPE | ND MIDRANGE | Frequency Range | 90-3000 (Hz) | |
| Nominal Diameter | 200/8.0 (mm/in) | Voice Coil Diameter | 50/2.0 (mm/in) | |
| Rated Impedance | 16 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 10.8 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 150 (Watts) | Winding Depth | 8/0.31 (mm/in) | |
| Continuous Power Handling | 300 (Watts) | Magnetic Gap Depth | 8/0.31 (mm/in) | |
| Sensitivity | 100 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 90 (Hz) | Mms | 21 (g) | |
| Re | 9.3 (ohm) | Vas | 10.5 (liters) | |
| Qms | 6.3 | Sd | 224 (cm2) | |
| Qes | 0.54 | L1kHz | 0.77 (mh) | |
| Qts | 0.5 | Xmax | ±2 (mm) | |
| Bl | 14.2 (T.M) | EBP | 167 (Hz) |
Mounting And Shipping
| Overall Diameter | 230/9.06 (mm/in) | Flange And Gasket Thickness | 11/0.43 (mm/in) | |
| Bolt Circle Diameter | 212/8.34 (mm/in) | N.W. (1 pc) | 1.85 / 4.1 (kg/lb) | |
| Mount Baffle Cut-out | 180/7.05 (mm/in) | G.W. (4 pcs) | 9.1 / 20.1 (kg/lb) | |
| Speaker Depth | 90/3.54 (mm/in) | Shipping Size (4 pcs) | 420x260x290 (mm) | |
| Mounting Hole | 4 | |||
