| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 95 dB sensitivity | ||

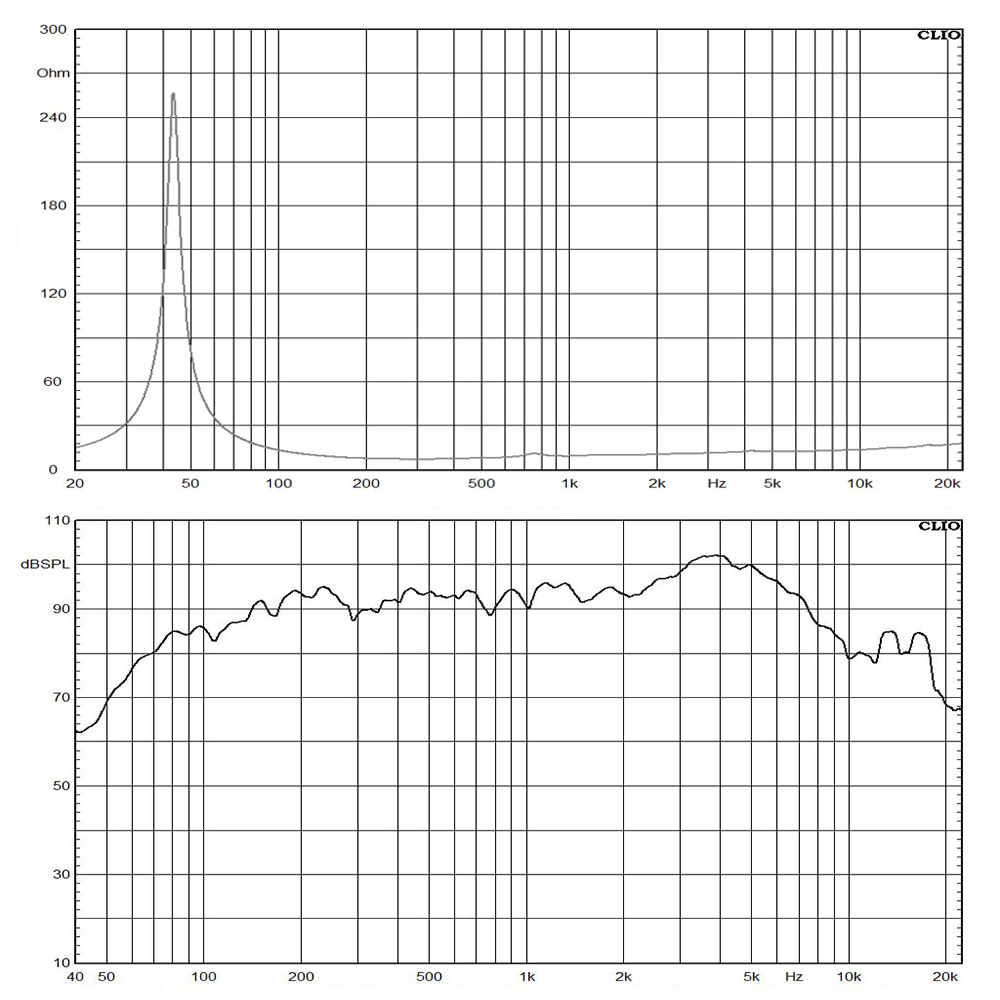

 40-2000 Hz response | |||
| 50mm(2.0 in) Aluminium voice coil | |||
| 360W continuous program power capacity | |||
Specifications
| TYPE | FE WOOFER | Frequency Range | 40-2000 (Hz) | |
| Nominal Diameter | 200/8 (mm/in) | Voice Coil Diameter | 50/2.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 7.1 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 180 (Watts) | Winding Depth | 12.8/0.5 (mm/in) | |
| Continuous Power Handling | 360 (Watts) | Magnetic Gap Depth | 8/0.31 (mm/in) | |
| Sensitivity | 95 (dB) | Magnetic Material | Ferrite Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 43 (Hz) | Mms | 23.8 (g) | |
| Re | 5.0 (ohm) | Vas | 39 (liters) | |
| Qms | 10.8 | Sd | 222 (cm2) | |
| Qes | 0.21 | L1kHz | 0.21 (mh) | |
| Qts | 0.21 | Xmax | ±4.4 (mm) | |
| Bl | 12.3 (T.M) | EBP | 205 (Hz) |
Mounting And Shipping
| Overall Diameter | 229/9.01 (mm/in) | Flange And Gasket Thickness | 12/0.47 (mm/in) | |
| Bolt Circle Diameter | 212/8.35 (mm/in) | N.W. (1 pc) | 3.4 / 7.5 (kg/lb) | |
| Mount Baffle Cut-out | 180/7.09 (mm/in) | G.W. (4 pcs) | 15.6 / 34.4 (kg/lb) | |
| Speaker Depth | 98/3.86 (mm/in) | Shipping Size (4 pcs) | 420x260x290 (mm) | |
| Mounting Hole | 4 | |||
| MORE→ |
