Features
 | 96 dB sensitivity | ||

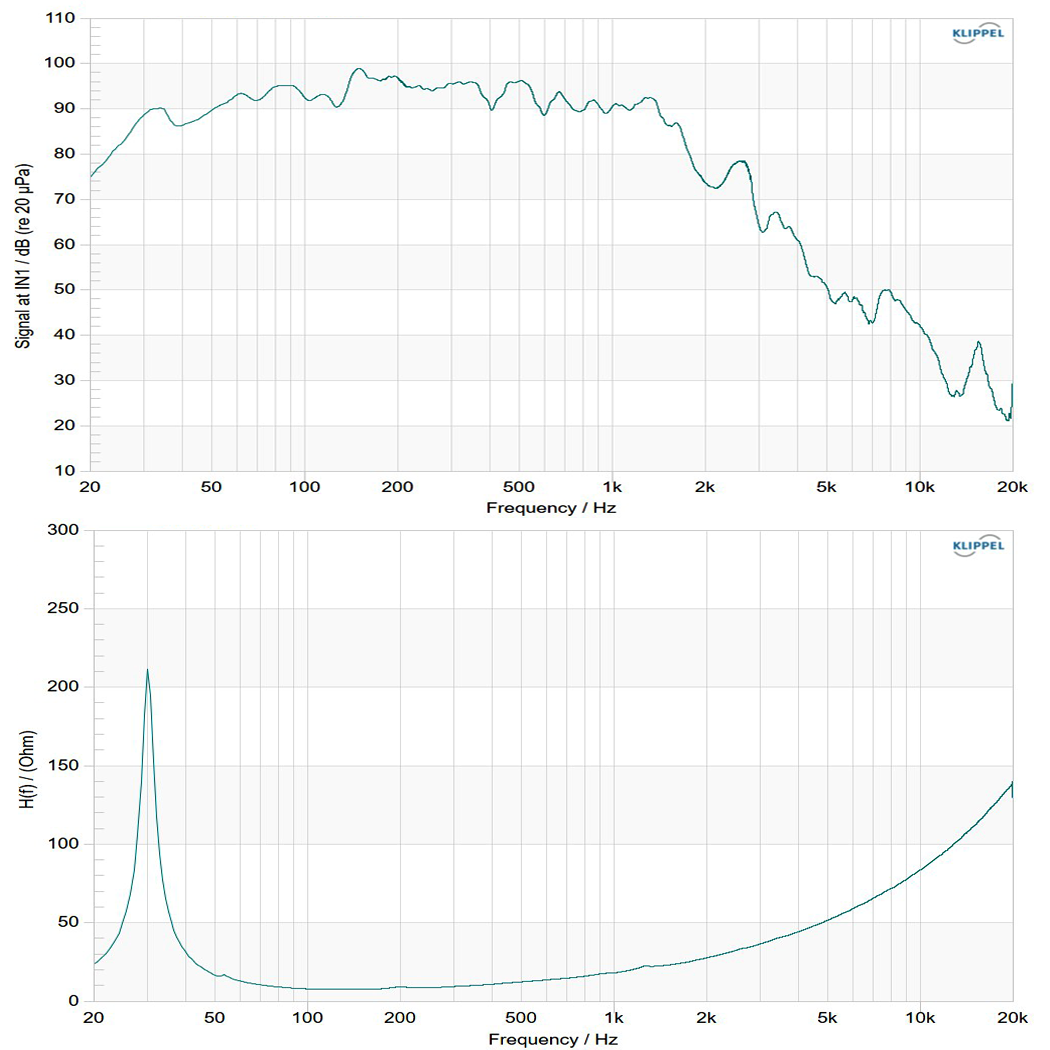

 30-1000 Hz response | |||
| 152mm(6.0 in) Copper voice coil | |||
| 4000W continuous program power capacity | |||
Specifications
| TYPE | ND SUBWOOFER | Frequency Range | 30-1000 (Hz) | |
| Nominal Diameter | 530/21 (mm/in) | Voice Coil Diameter | 153/6.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Copper | |
| Minimum Impedance | 7.4 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 2000 (Watts) | Winding Depth | 32.8/1.29 (mm/in) | |
| Continuous Power Handling | 4000 (Watts) | Magnetic Gap Depth | 12/0.47 (mm/in) | |
| Sensitivity | 96 (dB) | Magnetic Material | Neodymium Inside Slug |
| MORE→ |
Thiele & Small Parameters
| Fs | 30 (Hz) | Mms | 431 (g) | |
| Re | 6.1 (ohm) | Vas | 257 (liters) | |
| Qms | 12.15 | Sd | 1690 (cm2) | |
| Qes | 0.34 | L1kHz | 2.19 (mh) | |
| Qts | 0.33 | Xmax | ±13.4 (mm) | |
| Bl | 38.3 (T.M) | EBP | 88 (Hz) |
Mounting And Shipping
| Overall Diameter | 570/ 22.4 (mm/in) | Flange And Gasket Thickness | 19/ 0.75 (mm/in) | |
| Bolt Circle Diameter | 550/ 21.65 (mm/in) | N.W. (1 pc) | 18.9 / 41.7 (kg/lb) | |
| Mount Baffle Cut-out | 498/ 19.61 (mm/in) | G.W. (1 pc) | 24.9 / 54.9 (kg/lb) | |
| Speaker Depth | 248 / 9.76 (mm/in) | Shipping Size (1 pc) | 630x600x340 (mm) | |
| Mounting Hole | 12 | |||
