Features
 | 109.5 dB sensitivity | ||

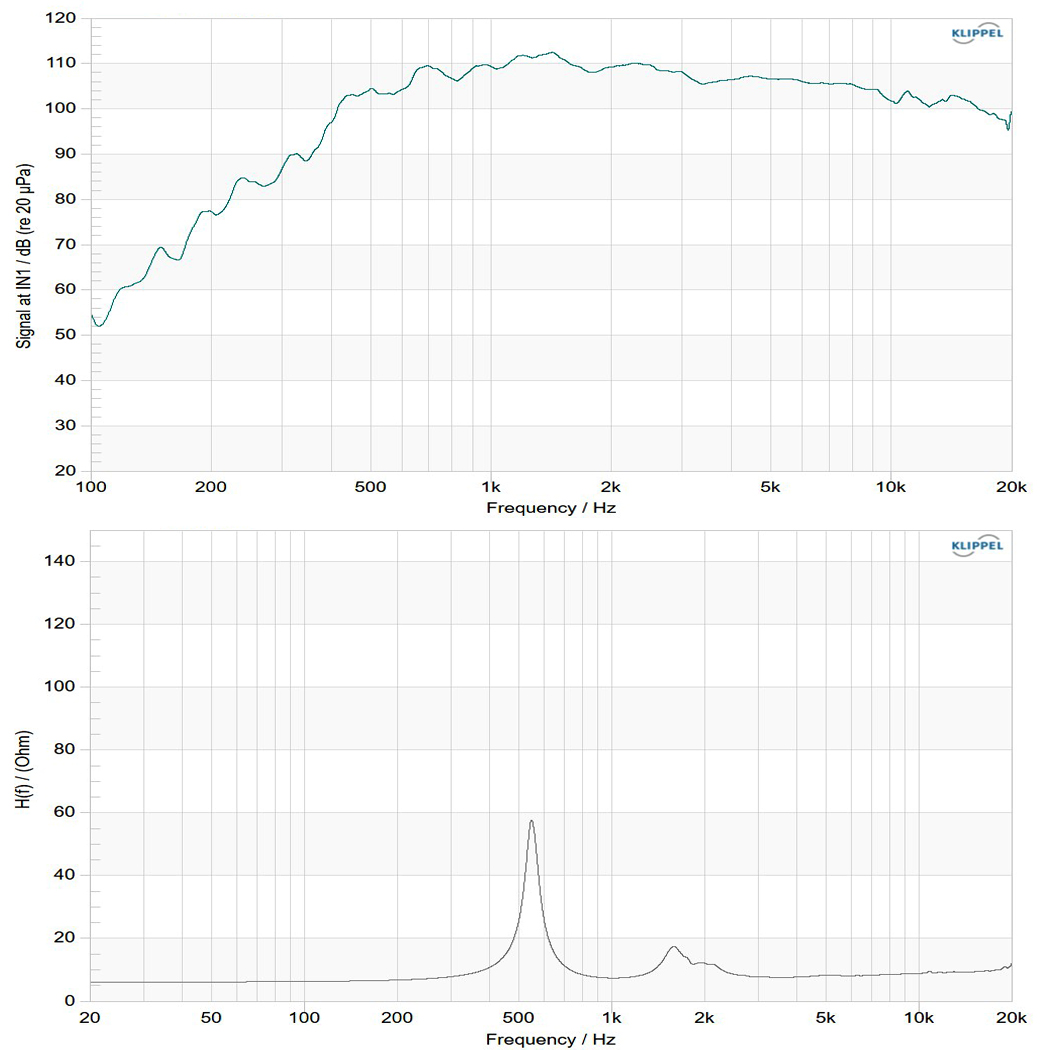

 500-20000 Hz response | |||
| 100mm(4.0 in) Aluminium voice coil | |||
| 280W continuous program power capacity | |||
Specifications
| TYPE | ND HF DRIVER | Frequency Range | 500-20000 (Hz) | |
| Throat Diameter | 38/1.5 (mm/in) | Recommended Crossover | 1000 (Hz) | |
| Rated Impedance | 8 (ohm) | Voice Coil Diameter | 100/4.0 (mm/in) | |
| Minimum Impedance | 7.4 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 140 (Watts) | Former Material | Kapton | |
| Continuous Power Handling | 280 (Watts) | Diaphragm Material | Titanium | |
| Sensitivity | 109.5 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 140/5.5 (mm/in) | N.W.（1 pc） | 2.8 / 6.2 (kg/lb) | |
| Driver Depth | 56.2/2.21 (mm/in) | G.W.（4 pcs） | 11.9 / 26.3 (kg/lb) | |
| Four M6 holes 90° on 102 mm diameter | 4 x M6 -102 -90° | Shipping size（4 pcs） | 340x200x190 (mm) | |
