Features
 | 109 dB sensitivity | ||

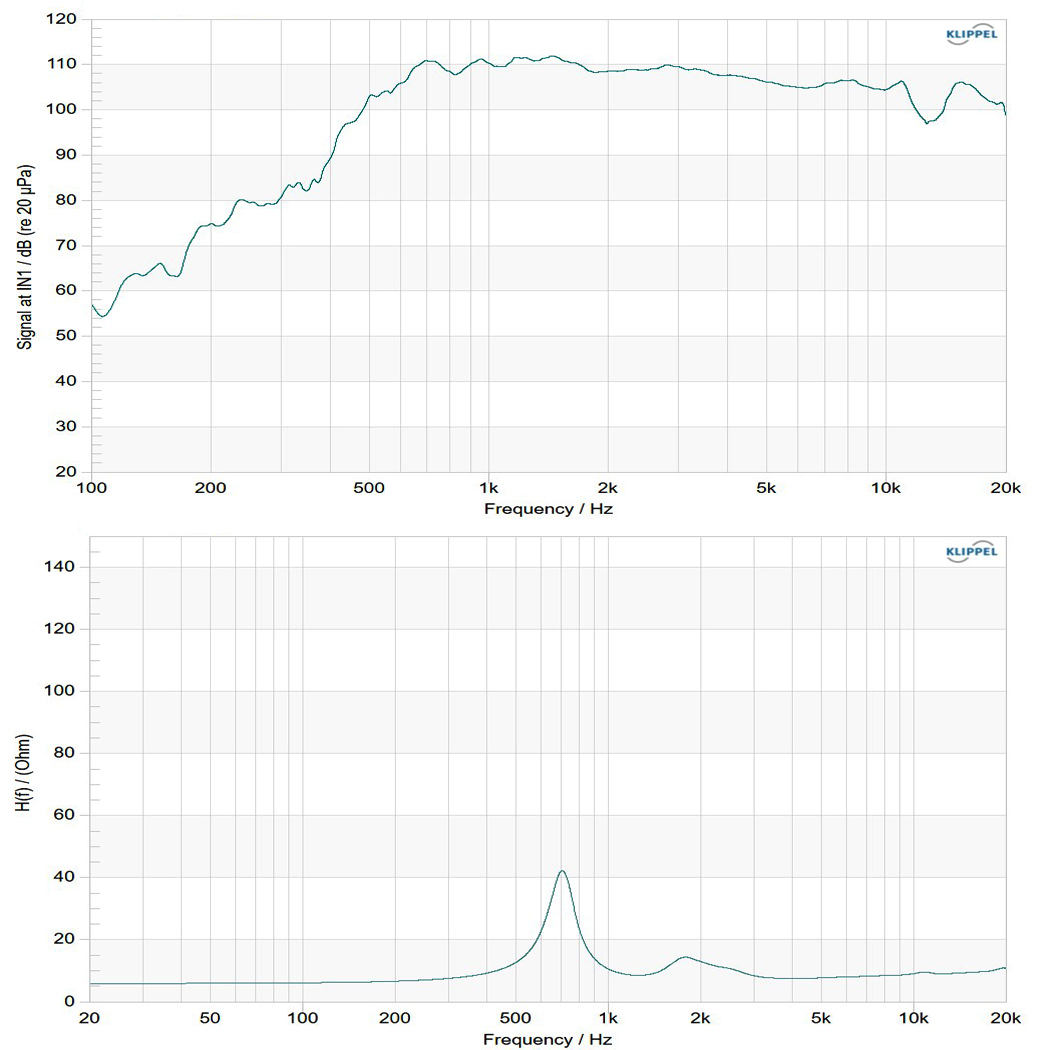

| 500-20000 Hz response | |||
| 75mm(3.0 in) Aluminium voice coil | |||
| 220W continuous program power capacity | |||
Specifications
| TYPE | ND HF DRIVER | Frequency Range | 500-20000 (Hz) | |
| Throat Diameter | 36/1.4 (mm/in) | Recommended Crossover | 1000 (Hz) | |
| Rated Impedance | 8 (ohm) | Voice Coil Diameter | 75/3.0 (mm/in) | |
| Minimum Impedance | 8.5 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 110 (Watts) | Former Material | Kapton | |
| Continuous Power Handling | 220 (Watts) | Diaphragm Material | Titanium | |
| Sensitivity | 109 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 115/4.52 (mm/in) | N.W.（1 pc） | 1.5 / 3.3 (kg/lb) | |
| Driver Depth | 47/1.85 (mm/in) | G.W.（6 pcs） | 9.9 / 21.9 (kg/lb) | |
| Four M6 holes 90° on 102 mm diameter | 4 x M6 -102 -90° | Shipping size（6 pcs） | 380x280x80 (mm) | |
| MORE→ |
Datasheet Downloads
