| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 97 dB sensitivity | ||

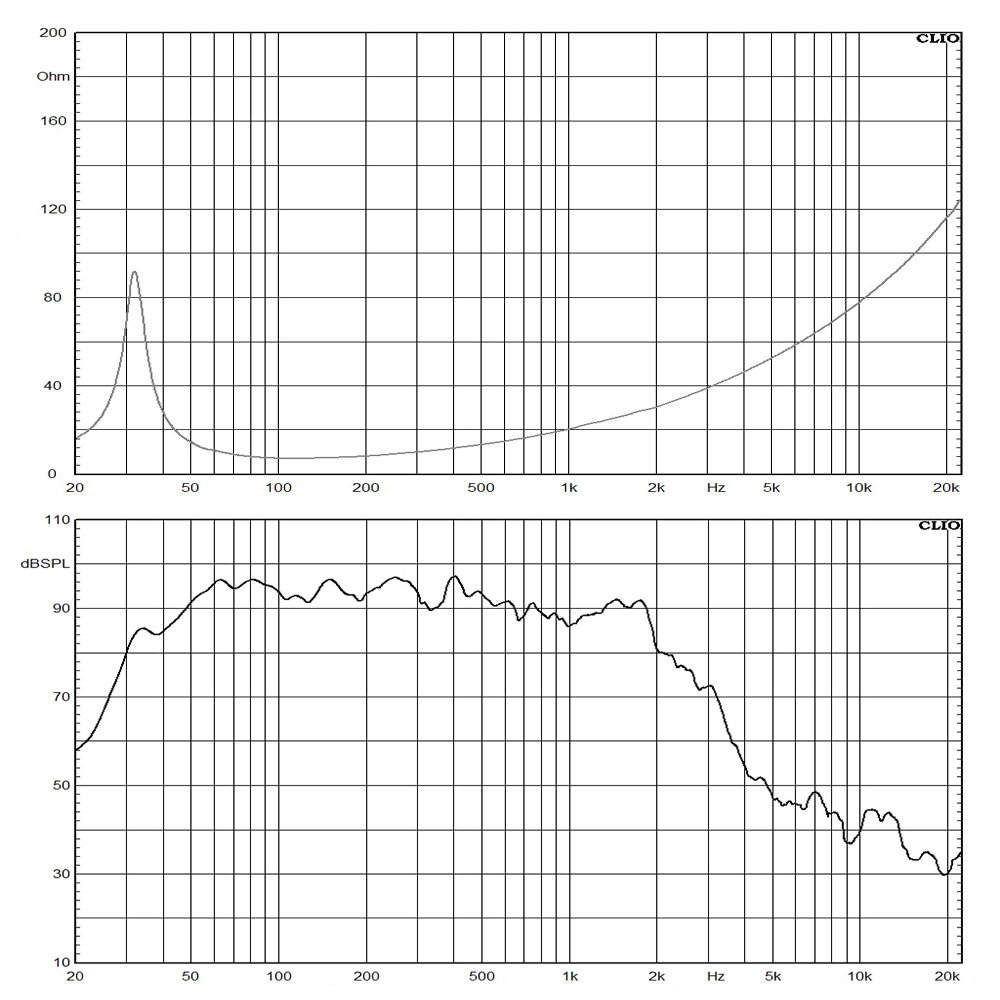

 30-1000 Hz response | |||
| 100mm(4.0 in) Copper voice coil | |||
| 3000W continuous program power capacity | |||
Specifications
| TYPE | ND SUBWOOFER | Frequency Range | 30-1000 (Hz) | |
| Nominal Diameter | 460/18 (mm/in) | Voice Coil Diameter | 100/4.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Copper | |
| Minimum Impedance | 6.9 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 1500 (Watts) | Winding Depth | 35/1.38 (mm/in) | |
| Continuous Power Handling | 3000 (Watts) | Magnetic Gap Depth | 15/0.59 (mm/in) | |
| Sensitivity | 97 (dB) | Magnetic Material | Neodymium Inside Slug |
| MORE→ |
Thiele & Small Parameters
| Fs | 32 (Hz) | Mms | 260 (g) | |
| Re | 4.9 (ohm) | Vas | 199 (liters) | |
| Qms | 7.07 | Sd | 1230 (cm2) | |
| Qes | 0.4 | L1kHz | 2.4 (mh) | |
| Qts | 0.38 | Xmax | ±13.75 (mm) | |
| Bl | 25.4 (T.M) | EBP | 80 (Hz) |
Mounting And Shipping
| Overall Diameter | 465/18.3 (mm/in) | Flange And Gasket Thickness | 22/0.87 (mm/in) | |
| Bolt Circle Diameter | 443/17.4 (mm/in) | N.W. (1 pc) | 8.95/19.7 (kg/lb) | |
| Mount Baffle Cut-out | 420/16.5 (mm/in) | G.W. (1 pc) | 13.5/29.7 (kg/lb) | |
| Speaker Depth | 220/8.6 (mm/in) | Shipping Size (1 pc) | 540x520x350 (mm) | |
| Mounting Hole | 8 | |||
