| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 109 dB sensitivity | ||

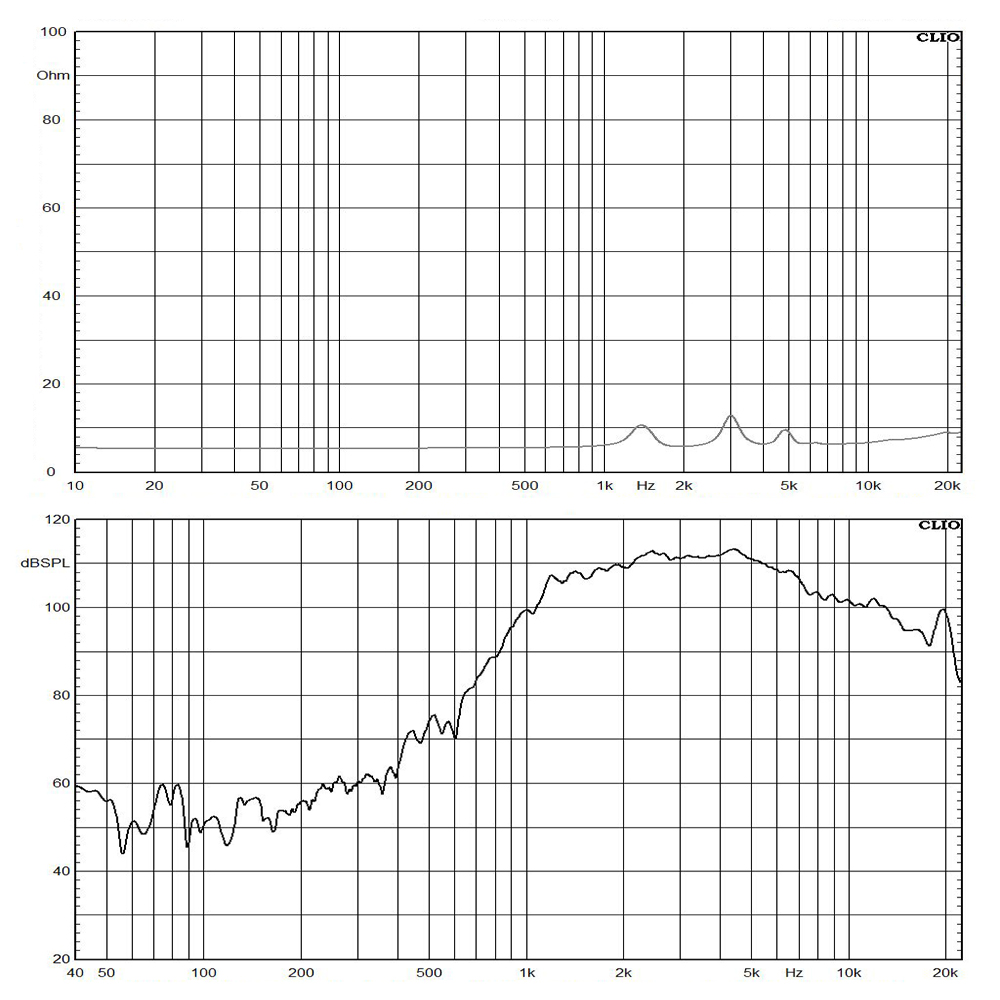

 1200-20000 Hz response | |||
| 38mm(1.5 in) Aluminium voice coil | |||
| 80W continuous program power capacity | |||
Specifications
| TYPE | ND HF DRIVER | Frequency Range | 1200-20000 (Hz) | |
| Throat Diameter | 25/1.0 (mm/in) | Recommended Crossover | 1200 (Hz) | |
| Rated Impedance | 8 (ohm) | Voice Coil Diameter | 38/1.5 (mm/in) | |
| Minimum Impedance | 6.2 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 40 (Watts) | Former Material | Kapton | |
| Continuous Power Handling | 80 (Watts) | Diaphragm Material | Polyimide | |
| Sensitivity | 109 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 70/2.75 (mm/in) | N.W.（1 pc） | 0.5 / 1.1 (kg/lb) | |
| Driver Depth | 53/2.08 (mm/in) | G.W.（10 pcs） | 5.8 / 12.8 (kg/lb) | |
| Diameter of mounting thread | 34.5 /1.35 (mm/in) | Shipping size（10 pcs） | 250x220x125 (mm) | |
| MORE→ |
