| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 110 dB sensitivity | ||
 1200-20000 Hz response | |||
| 38mm(1.5 in) Aluminium voice coil | |||
| 80W continuous program power capacity | |||
Specifications
| TYPE | ND HF DRIVER | Frequency Range | 1200-20000 (Hz) | |
| Throat Diameter | 25/1.0 (mm/in) | Recommended Crossover | 1200 (Hz) | |
| Rated Impedance | 8 (ohm) | Voice Coil Diameter | 38/1.5 (mm/in) | |
| Minimum Impedance | 6.3 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 40 (Watts) | Former Material | Kapton | |

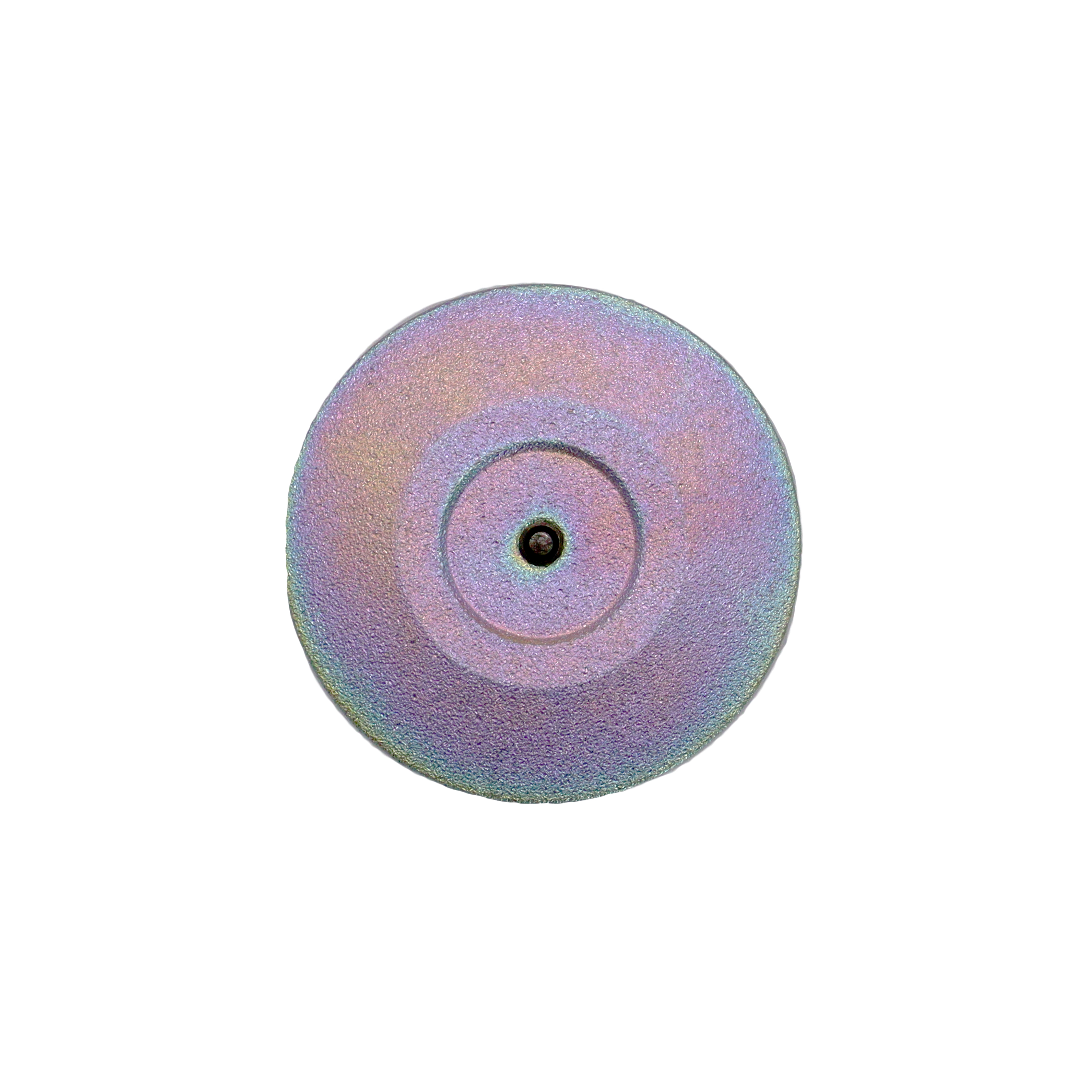

| Continuous Power Handling | 80 (Watts) | Diaphragm Material | Polyimide | |
| Sensitivity | 110 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 71/2.79 (mm/in) | N.W.（1 pc） | 0.65 / 1.4 (kg/lb) | |
| Driver Depth | 50/1.96 (mm/in) | G.W.（10 pcs） | 7.5 / 16.5 (kg/lb) | |
| Diameter of mounting thread | 34.5 /1.35 (mm/in) | Shipping size（10 pcs） | 250x220x125 (mm) | |
| MORE→ |
Datasheet Downloads
