Features
 |
107.5 dB sensitivity | ||

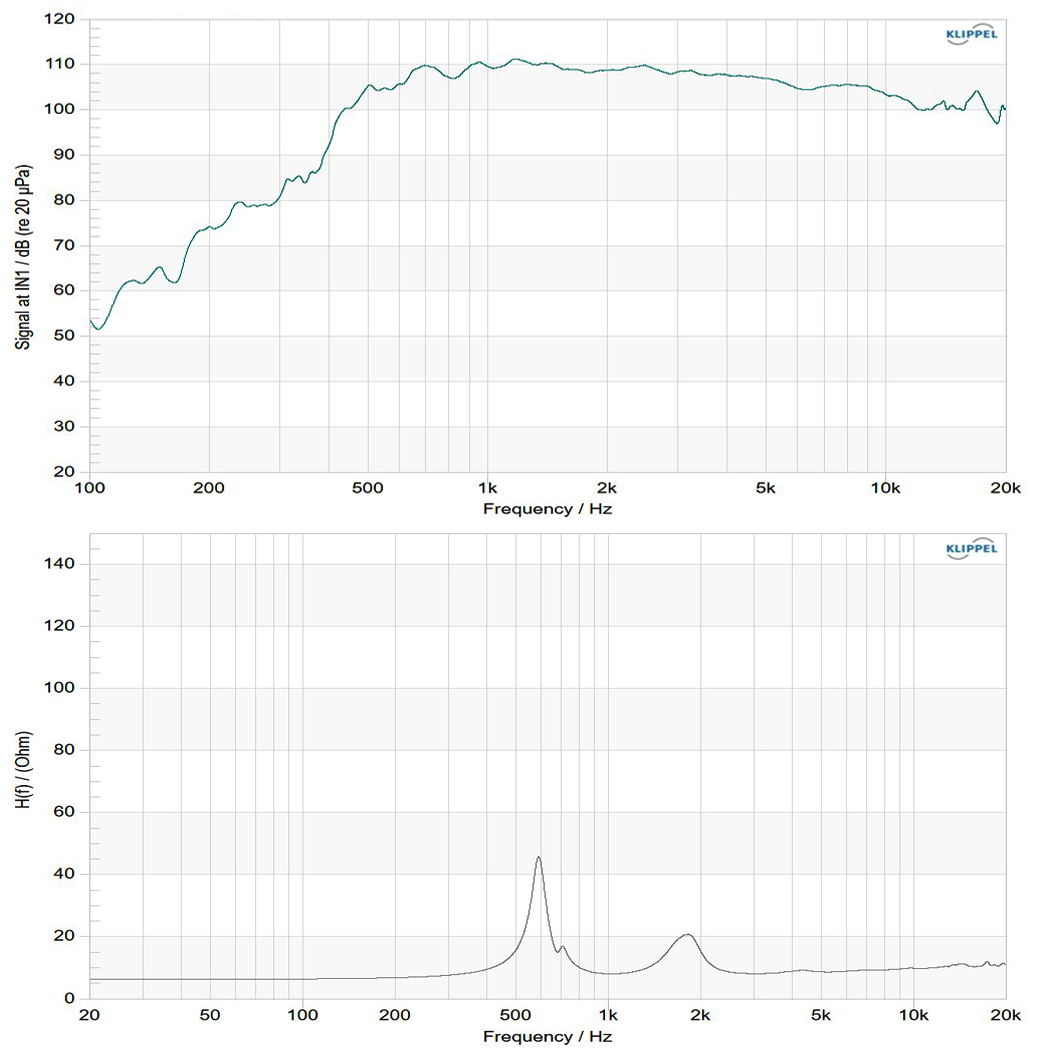

 500-18000 Hz response |
|||
| 75mm(3.0 in) Aluminium voice coil | |||
| 220W continuous program power capacity | |||
Specifications
| TYPE |
FE HF DRIVER |
Frequency Range | 500-18000 (Hz) | |
| Throat Diameter | 36/1.4 (mm/in) |
Recommended Crossover | 1000 (Hz) | |
| Rated Impedance |
8 (ohm) | Voice Coil Diameter | 75/3.0 (mm/in) | |
| Minimum Impedance | 8.5 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 110 (Watts) | Former Material | Kapton |
|
| Continuous Power Handling | 220 (Watts) | Diaphragm Material | Titanium |
|
| Sensitivity | 107.5 (dB) | Magnetic Material | Ferrite Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 170/6.69 (mm/in) | N.W.（1 pc） | 4.5 / 9.9 (kg/lb) | |
| Driver Depth | 65/2.5 (mm/in) | G.W.（4 pcs） | 19.5 / 43.0 (kg/lb) | |
| Four M6 holes 90° on 102 mm diameter | 4 x M6 -102 -90° | Shipping size（4 pcs） | 400x205x160 (mm) | |
