| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 101 dB sensitivity | ||

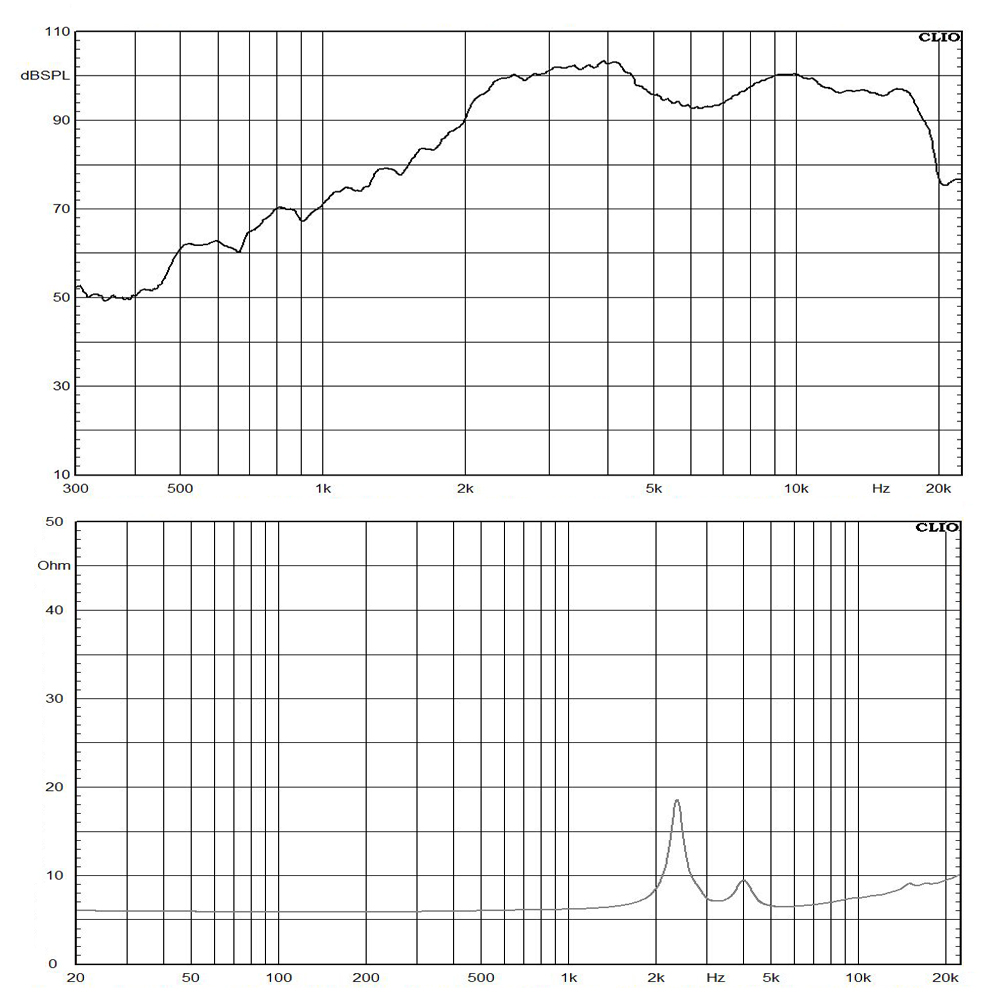

| 2000-18000 Hz response | |||
| 25mm(1.0 in) Aluminium voice coil | |||
| 20W continuous program power capacity | |||
Specifications
| TYPE | ND HF DRIVER | Frequency Range | 2000-18000 (Hz) | |
| Throat Diameter | 19/0.75 (mm/in) | Recommended Crossover | 2500 (Hz) | |
| Rated Impedance | 8 (ohm) | Voice Coil Diameter | 25/1.0 (mm/in) | |
| Minimum Impedance | 5.2 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 10 (Watts) | Former Material | Kapton | |
| Continuous Power Handling | 20 (Watts) | Diaphragm Material | Mylar | |
| Sensitivity | 101 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 62/2.44 (mm/in) | N.W.（1 pc） | 0.18 / 0.39 (kg/lb) | |
| Driver Depth | 35/1.38 (mm/in) | |||
| Two M4 holes 180° on 53 mm diameter | 2 x M4 -53 -180° | |||
| MORE→ |
Datasheet Downloads
