Features
 |
107 dB sensitivity | ||

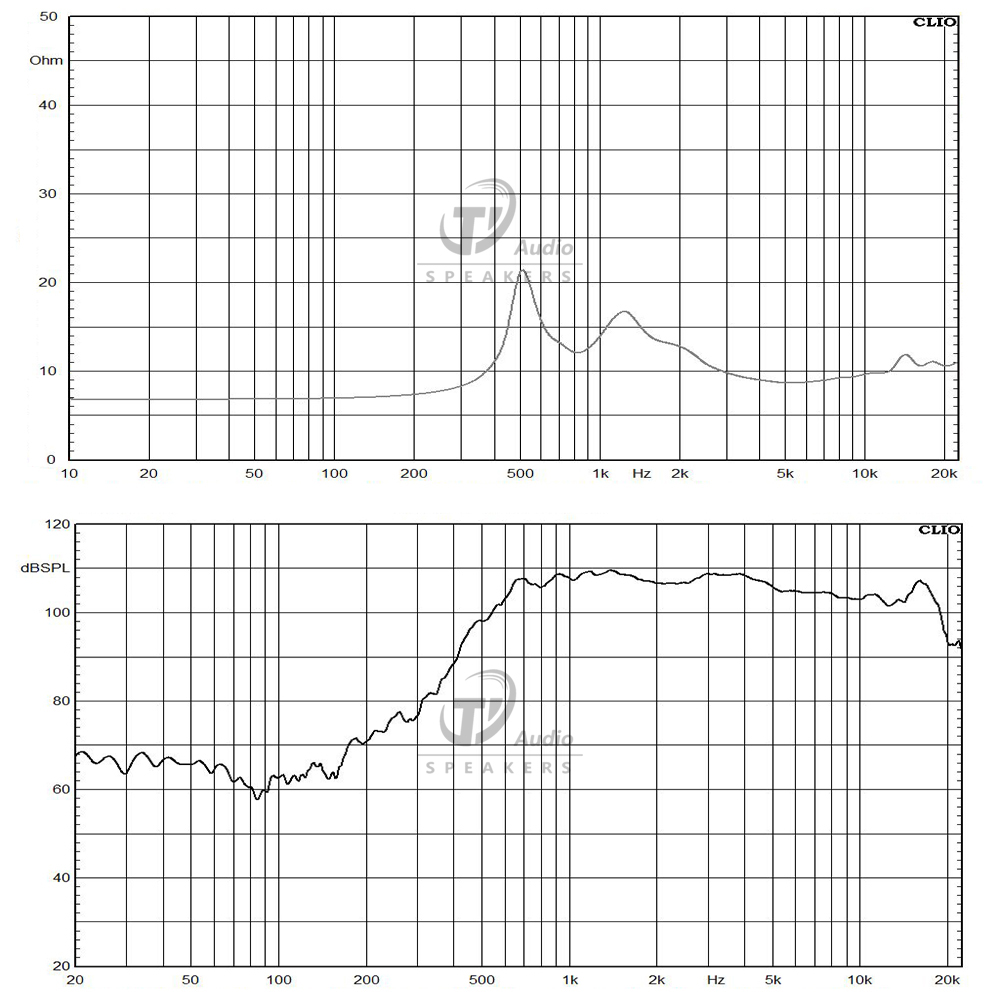

 1000-18000 Hz response |
|||
| 65mm(2.5 in) Aluminium voice coil | |||
| 160W continuous program power capacity | |||
Specifications
| TYPE |
ND HF DRIVER |
Frequency Range | 1000-18000 (Hz) | |
| Throat Diameter | 36/1.4 (mm/in) |
Recommended Crossover | 1200 (Hz) | |
| Rated Impedance |
8 (ohm) | Voice Coil Diameter | 65/2.5 (mm/in) | |
| Minimum Impedance | 8.6 (ohm) | Winding Material | Aluminium | |
| Nominal Power Handling | 80 (Watts) | Former Material | Kapton |
|
| Continuous Power Handling | 160 (Watts) | Diaphragm Material | Titanium |
|
| Sensitivity | 107 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Mounting And Shipping
| Overall Diameter | 115/4.5 (mm/in) | N.W.（1 pc） | 1.8 / 3.9 (kg/lb) | |
| Driver Depth | 52/2.04 (mm/in) | G.W.（6 pcs） | 11.4 / 25.1 (kg/lb) | |
| Four M6 holes 90° on 102 mm diameter | 4 x M6 -102 -90° | Shipping size（6 pcs） | 380x280x80 (mm) | |
