| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 94 dB sensitivity | ||

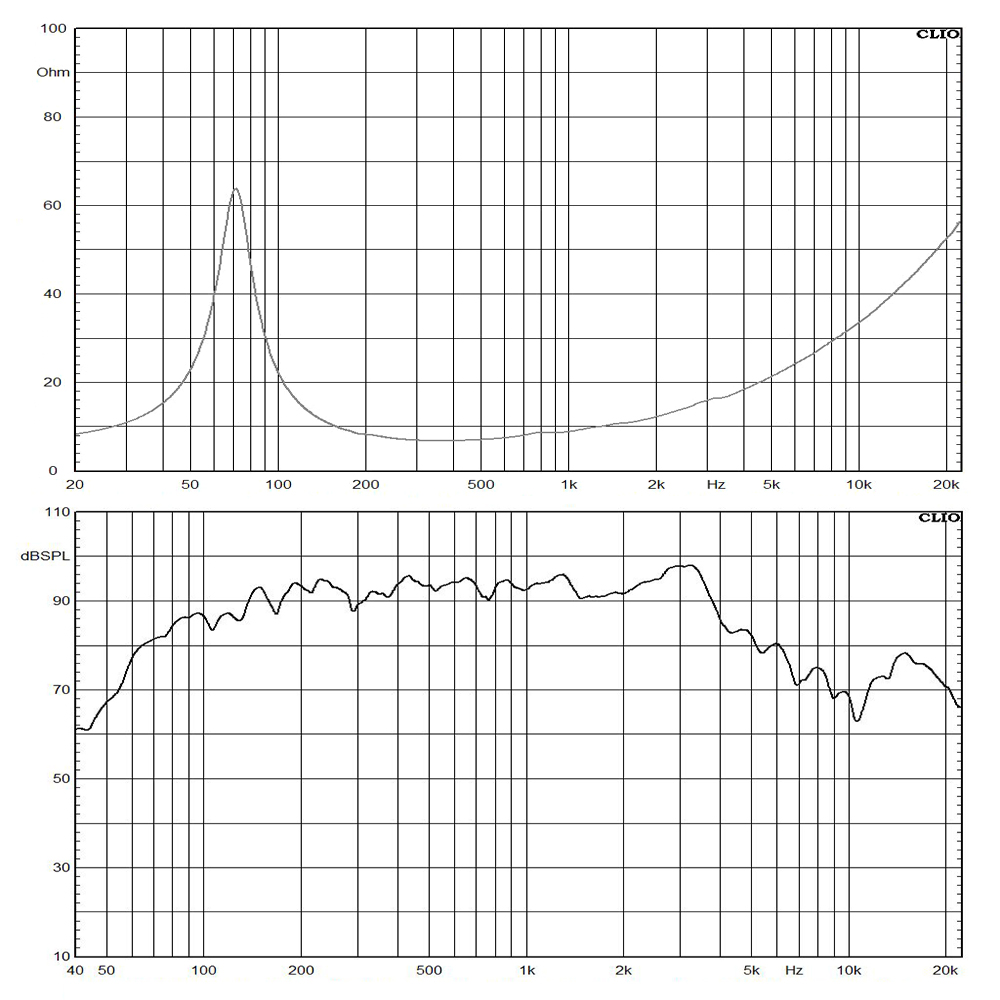

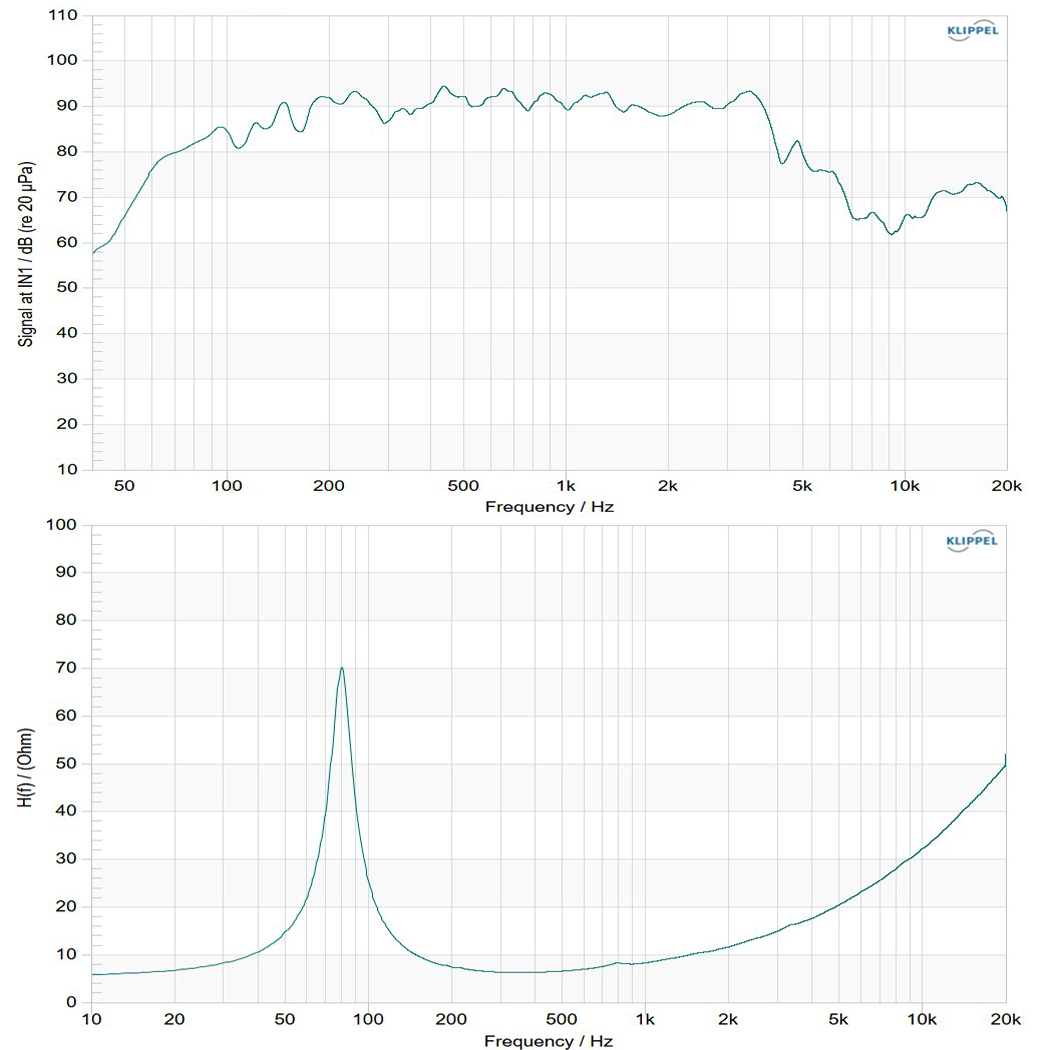

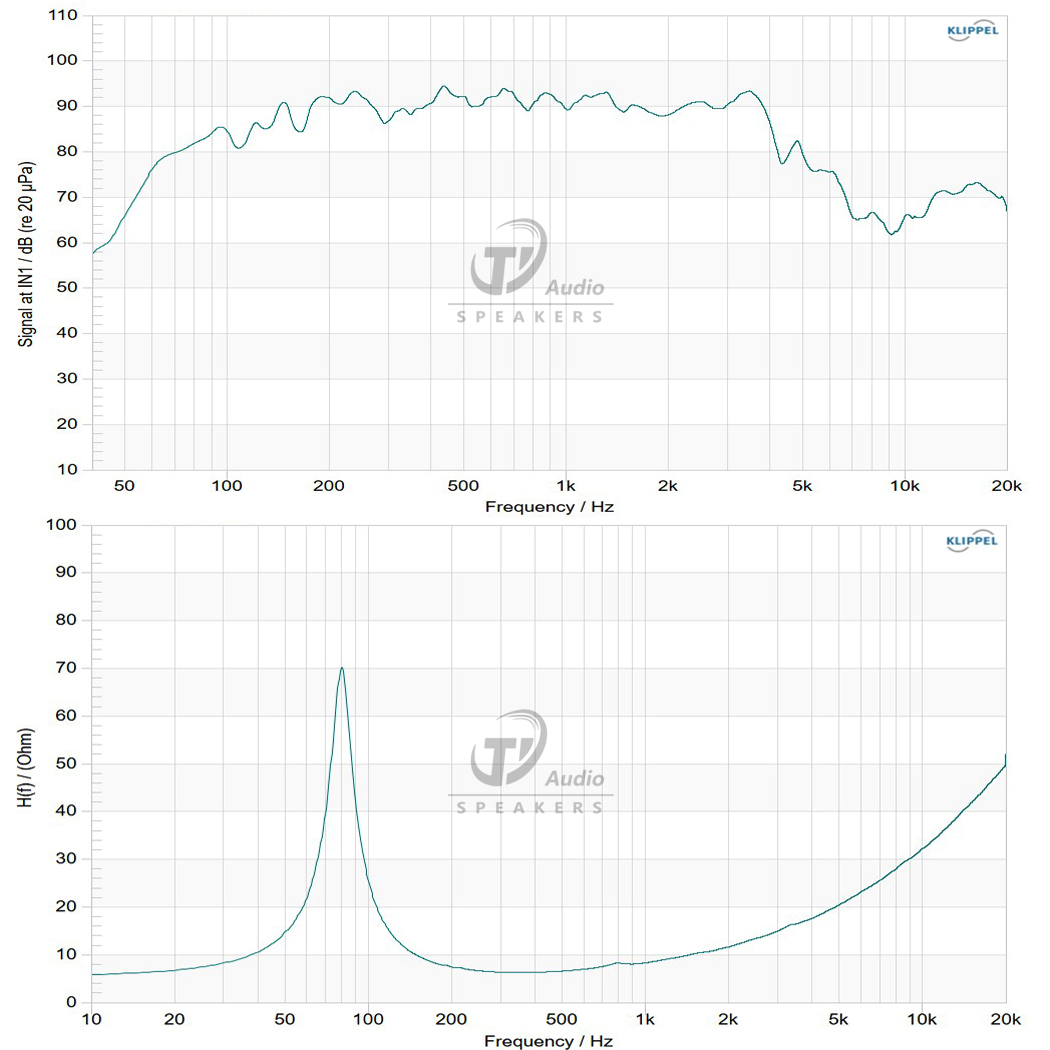

 80-3000 Hz response | |||
| 76mm(3.0 in) Aluminium voice coil | |||
| 800W continuous program power capacity | |||
Specifications
| TYPE | ND WOOFER | Frequency Range | 80-3000 (Hz) | |
| Nominal Diameter | 200/8 (mm/in) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 6.3 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 400 (Watts) | Winding Depth | 15/0.59 (mm/in) | |
| Continuous Power Handling | 800 (Watts) | Magnetic Gap Depth | 10/0.39 (mm/in) | |
| Sensitivity | 95.5 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 81 (Hz) | Mms | 28 (g) | |
| Re | 5.3 (ohm) | Vas | 10 (liters) | |
| Qms | 5.37 | Sd | 224 (cm2) | |
| Qes | 0.46 | L1kHz | 0.54 (mh) | |
| Qts | 0.42 | Xmax | ±5 (mm) | |
| Bl | 12.9 (T.M) | EBP | 176 (Hz) |
Mounting And Shipping
| Overall Diameter | 225/8.8 (mm/in) | Flange And Gasket Thickness | 11/0.43 (mm/in) | |
| Bolt Circle Diameter | 210/8.3 (mm/in) | N.W. (1 pc) | 4.3 / 9.4 (kg/lb) | |
| Mount Baffle Cut-out | 188/7.4 (mm/in) | G.W. (4 pcs) | 19.2 / 42.3 (kg/lb) | |
| Speaker Depth | 105/4.13 (mm/in) | Shipping Size (4 pcs) | 420x260x290 (mm) | |
| Mounting Hole | 8 | |||
| MORE→ |
