| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 96 dB sensitivity | ||

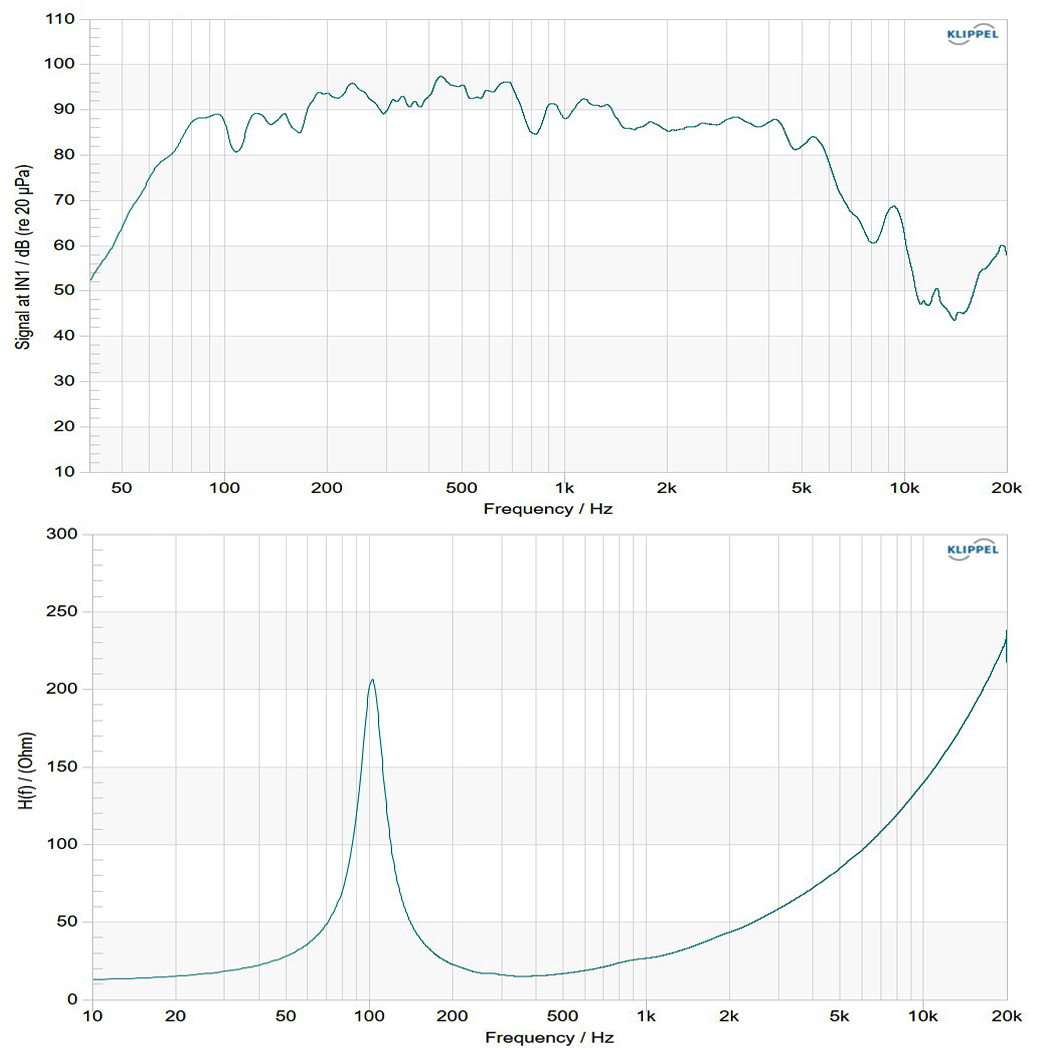

| 100-2000 Hz response | |||
| 64mm(2.5 in) Aluminium voice coil | |||
| 500W continuous program power capacity | |||
Specifications
| TYPE | ND MIDRANGE | Frequency Range | 100-2000 (Hz) | |
| Nominal Diameter | 200/8 (mm/in) | Voice Coil Diameter | 64/2.5 (mm/in) | |
| Rated Impedance | 16 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 15.2 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 250 (Watts) | Winding Depth | 21/0.83 (mm/in) | |
| Continuous Power Handling | 500 (Watts) | Magnetic Gap Depth | 8/0.31 (mm/in) | |
| Sensitivity | 96 (dB) | Magnetic Material | Neodymium Inside Slug |
| MORE→ |
Thiele & Small Parameters
| Fs | 102 (Hz) | Mms | 39.2 (g) | |
| Re | 12.2 (ohm) | Vas | 4.26 (liters) | |
| Qms | 6.32 | Sd | 222 (cm2) | |
| Qes | 0.36 | L1kHz | 2.13 (mh) | |
| Qts | 0.34 | Xmax | ±8.5 (mm) | |
| Bl | 28.9 (T.M) | EBP | 283 (Hz) |
Mounting And Shipping
| Overall Diameter | 225/8.8 (mm/in) | Flange And Gasket Thickness | 11/0.43 (mm/in) | |
| Bolt Circle Diameter | 210/8.3 (mm/in) | N.W. (1 pc) | 2.5 / 5.5 (kg/lb) | |
| Mount Baffle Cut-out | 187/7.36 (mm/in) | G.W. (4 pcs) | 12.2 / 27.6 (kg/lb) | |
| Speaker Depth | 100/3.94 (mm/in) | Shipping Size (4 pcs) | 420x260x290 (mm) | |
| Mounting Hole | 8 | |||
| MORE→ |
Datasheet Downloads
