| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 96 dB sensitivity | |||

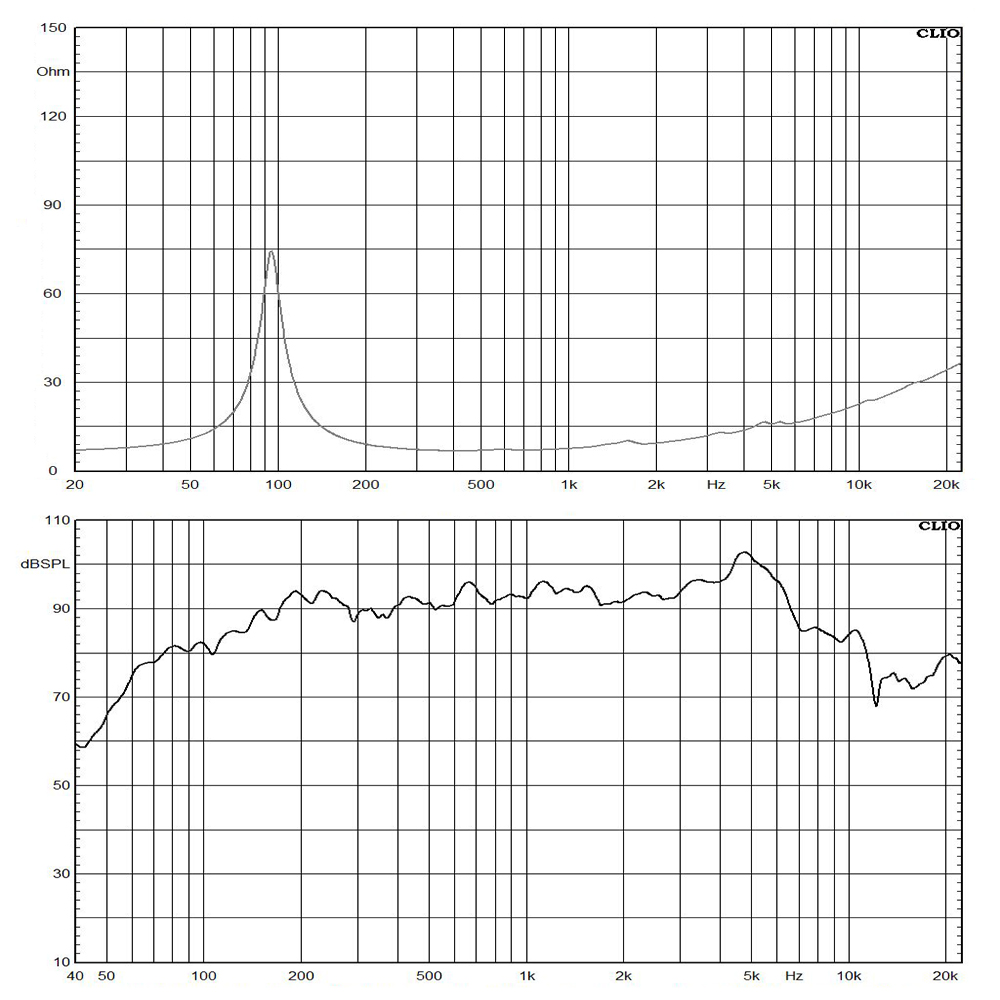

 95-5000 Hz response | ||||
| 38mm(1.5 in) Aluminium voice coil | ||||
| 300W continuous program power capacity | ||||
Specifications
| TYPE | FE MIDRANGE | Frequency Range | 95-5000 (Hz) | |
| Nominal Diameter | 165/6.5 (mm/in) | Voice Coil Diameter | 38/1.5 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 6.7 (ohm) | Former Material | Kapton | |
| Nominal Power Handling | 150 (Watts) | Winding Depth | 7.7/0.3 (mm/in) | |
| Continuous Power Handling | 300 (Watts) | Magnetic Gap Depth | 6/0.23 (mm/in) | |
| Sensitivity | 96 (dB) | Magnetic Material | Ferrite Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 95 (Hz) | Mms | 12 (g) | |
| Re | 5.5 (ohm) | Vas | 6 (liters) | |
| Qms | 6.34 | Sd | 137 (cm2) | |
| Qes | 0.5 | L1kHz | 0.38 (mh) | |
| Qts | 0.46 | Xmax | ±2.35 (mm) | |
| Bl | 8.9 (T.M) | EBP | 190 (Hz) |
Mounting And Shipping
| Overall Diameter | 187/7.36 (mm/in) | Flange And Gasket Thickness | 9.5/0.37 (mm/in) | |
| Bolt Circle Diameter | 172/6.77 (mm/in) | N.W. (1 pc) | 2.2 / 4.8 (kg/lb) | |
| Mount Baffle Cut-out | 146/5.75 (mm/in) | G.W. (4 pcs) | 11.1 / 24.4 (kg/lb) | |
| Speaker Depth | 80/3.15 (mm/in) | Shipping Size (4 pcs) | 340x220x280 (mm) | |
| Mounting Hole | 4 | |||
| MORE→ |
Datasheet Downloads
