| Impedance: | |
|---|---|
| Quantity: | |
Features
 | 93 dB sensitivity | |||

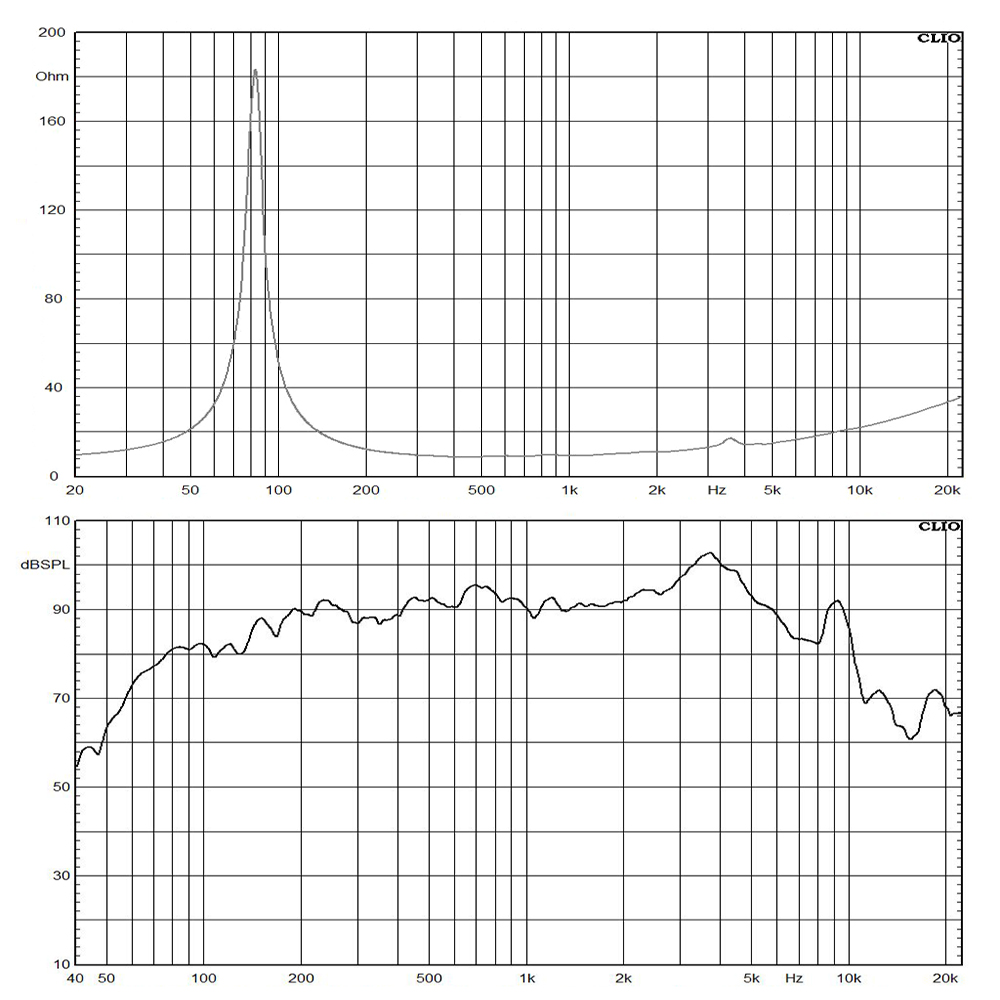

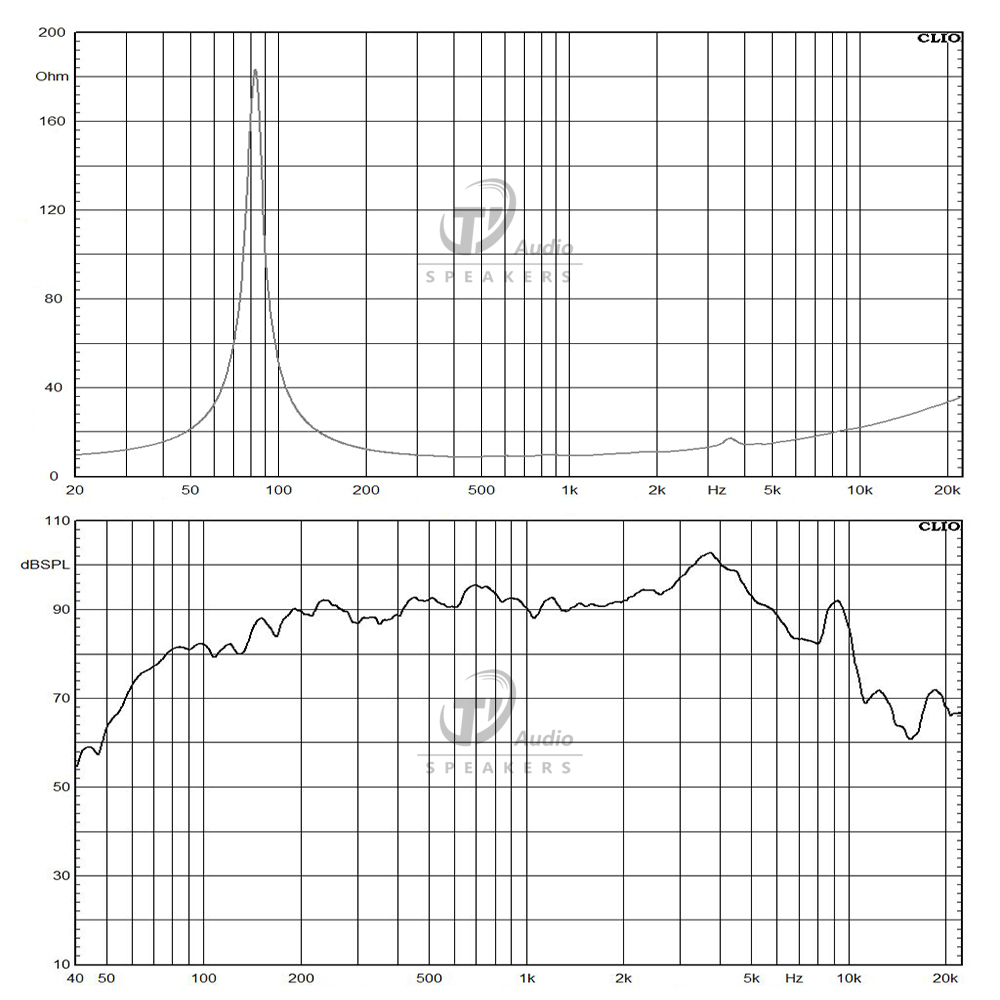

 80-5000 Hz response | ||||
| 38mm(1.5 in) Aluminium voice coil | ||||
| 300W continuous program power capacity | ||||
Specifications
| TYPE | ND MIDRANGE | Frequency Range | 80-5000 (Hz) | |
| Nominal Diameter | 165/6.5 (mm/in) | Voice Coil Diameter | 38/1.5 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 8.5 (ohm) | Former Material | Kapton | |
| Nominal Power Handling | 150 (Watts) | Winding Depth | 12.7/0.5 (mm/in) | |
| Continuous Power Handling | 300 (Watts) | Magnetic Gap Depth | 6/0.23 (mm/in) | |
| Sensitivity | 93 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 83 (Hz) | Mms | 12.5 (g) | |
| Re | 6.1 (ohm) | Vas | 6.7 (liters) | |
| Qms | 9.1 | Sd | 129 (cm2) | |
| Qes | 0.31 | L1kHz | 0.172 (mh) | |
| Qts | 0.3 | Xmax | ±5 (mm) | |
| Bl | 11.3 (T.M) | EBP | 268 (Hz) |
Mounting And Shipping
| Overall Diameter | 186/7.32 (mm/in) | Flange And Gasket Thickness | 9/0.35 (mm/in) | |
| Bolt Circle Diameter | 173/6.81 (mm/in) | N.W. (1 pc) | 1.05 / 2.31 (kg/lb) | |
| Mount Baffle Cut-out | 145/5.71 (mm/in) | G.W. (4 pcs) | 5.9 / 13.0 (kg/lb) | |
| Speaker Depth | 76/2.99 (mm/in) | Shipping Size (4 pcs) | 340x220x280 (mm) | |
| Mounting Hole | 4 | |||
| MORE→ |
