Features
 |
90 dB sensitivity | ||

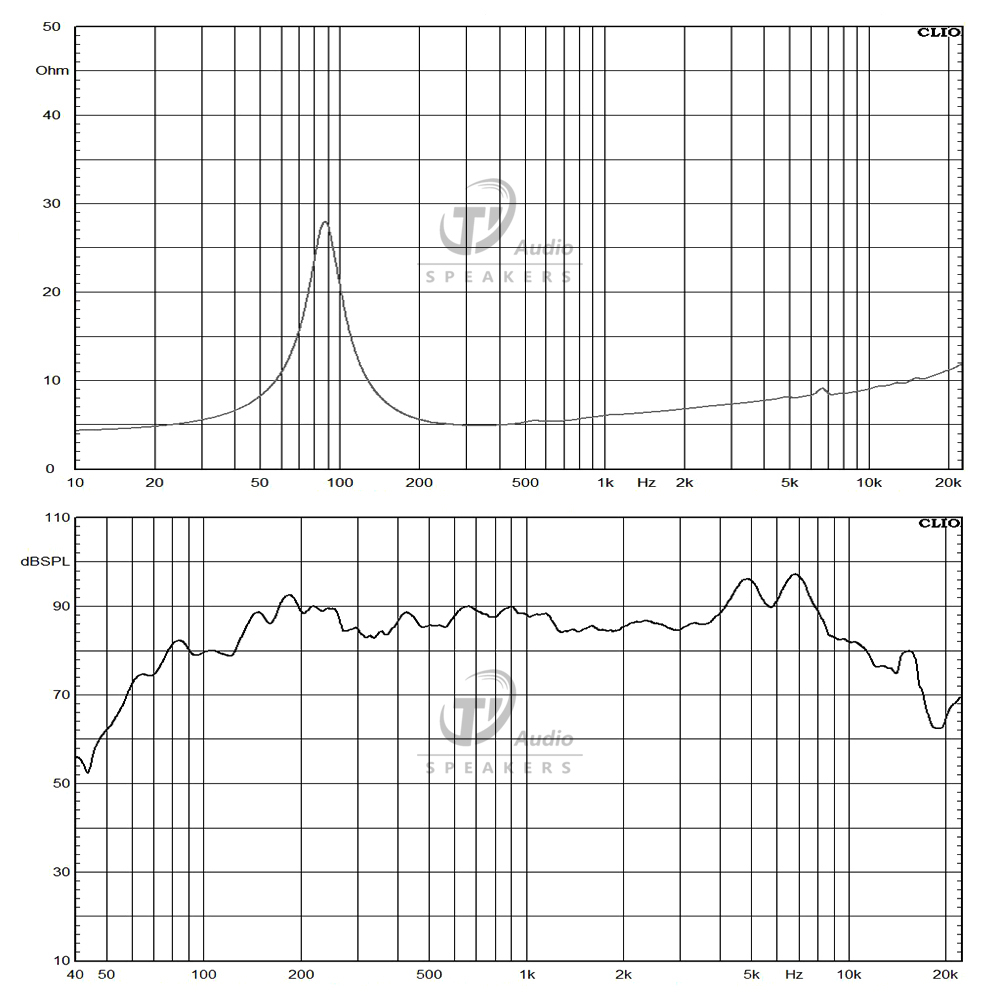

 88-5000 Hz response |
|||
| 50mm(2.0 in) Aluminium voice coil | |||
| 500W continuous program power capacity | |||
Specifications
| TYPE |
FE WOOFER |
Frequency Range | 88-5000 (Hz) | |
| Nominal Diameter |
165/6.5 (mm/in) |
Voice Coil Diameter | 50/2.0 (mm/in) | |
| Rated Impedance |
4 (ohm) | Winding Material |
Aluminium | |
| Minimum Impedance | 4.9 (ohm) | Former Material |
Kapton | |
| Nominal Power Handling | 250 (Watts) | Winding Depth |
12/0.47 (mm/in) |
|
| Continuous Power Handling | 500 (Watts) | Magnetic Gap Depth |
8/0.31 (mm/in) |
|
| Sensitivity | 90 (dB) | Magnetic Material |
Ferrite Ring |
| MORE→ |
Thiele & Small Parameters
| Fs |
88 (Hz) | Mms |
17.7 (g) | |
| Re |
3.4 (ohm) | Vas |
3.8 (liters) | |
| Qms |
3.6 | Sd |
123 (cm2) | |
| Qes |
0.5 | L1kHz |
0.19 (mh) | |
| Qts |
0.44 | Xmax |
±4 (mm) | |
| Bl |
8.1 (T.M) | EBP |
176 (Hz) |
Mounting And Shipping
| Overall Diameter | 187/7.36 (mm/in) | Flange And Gasket Thickness | 11/0.43 (mm/in) | |
| Bolt Circle Diameter | 172/6.77 (mm/in) | N.W. (1 pc) | 2.5 / 5.5 (kg/lb) | |
| Mount Baffle Cut-out | 145/5.71 (mm/in) | G.W. (4 pcs) | 13.1 / 28.8 (kg/lb) | |
| Speaker Depth | 86/3.39 (mm/in) | Shipping Size (4 pcs) | 340x220x280 (mm) |
|
| Mounting Hole | 4 | |||
