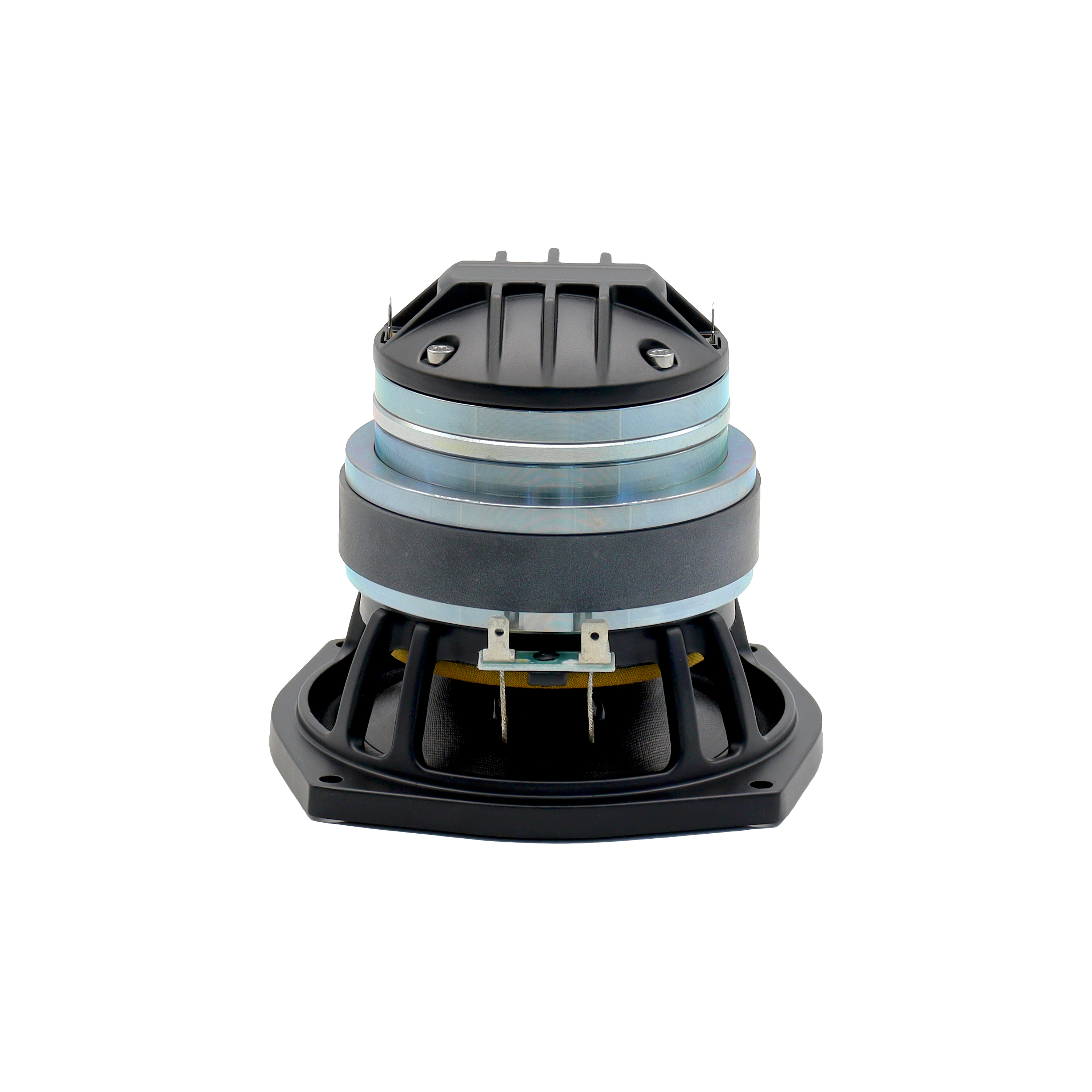

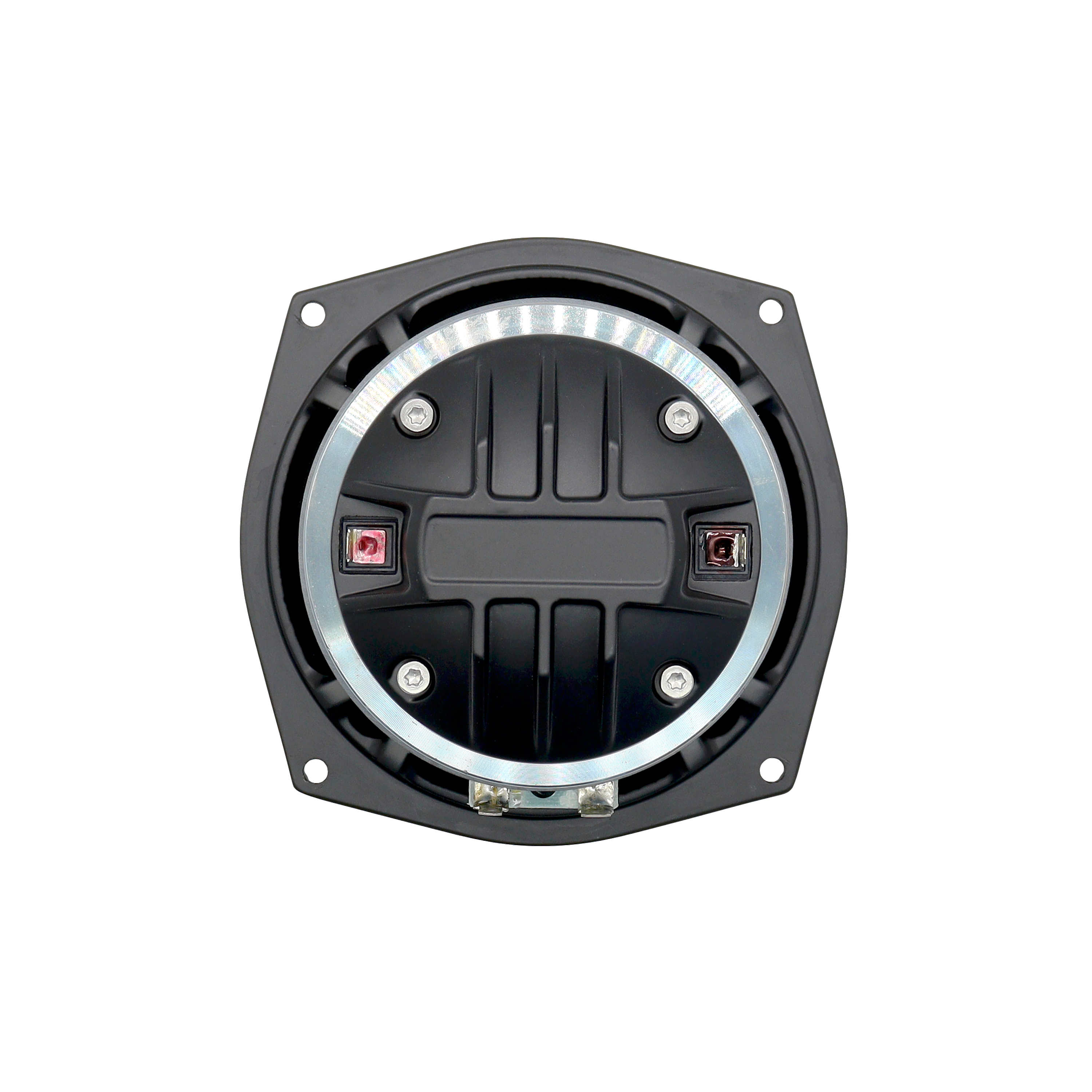

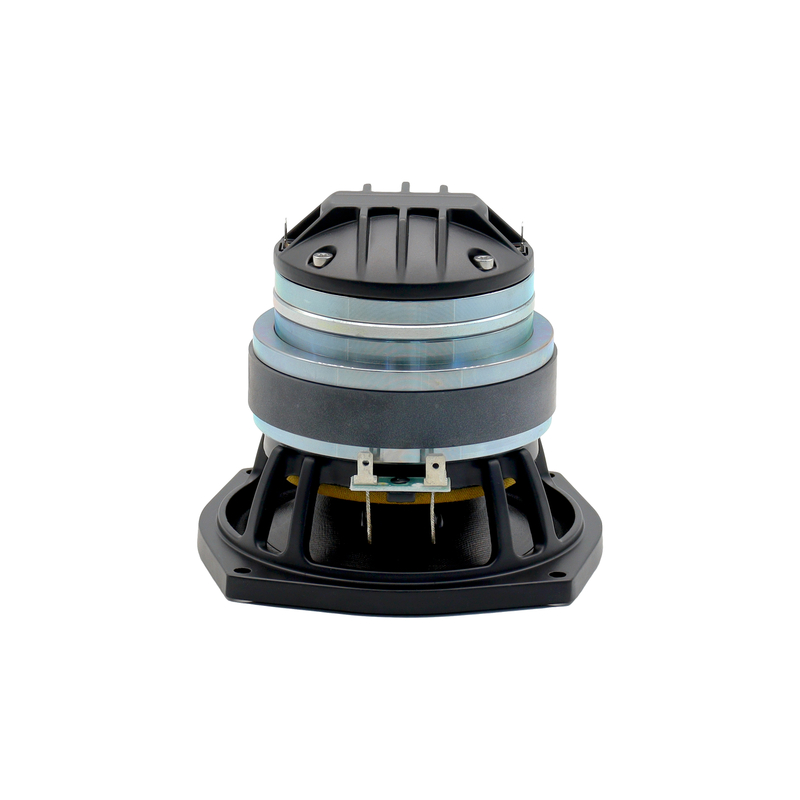

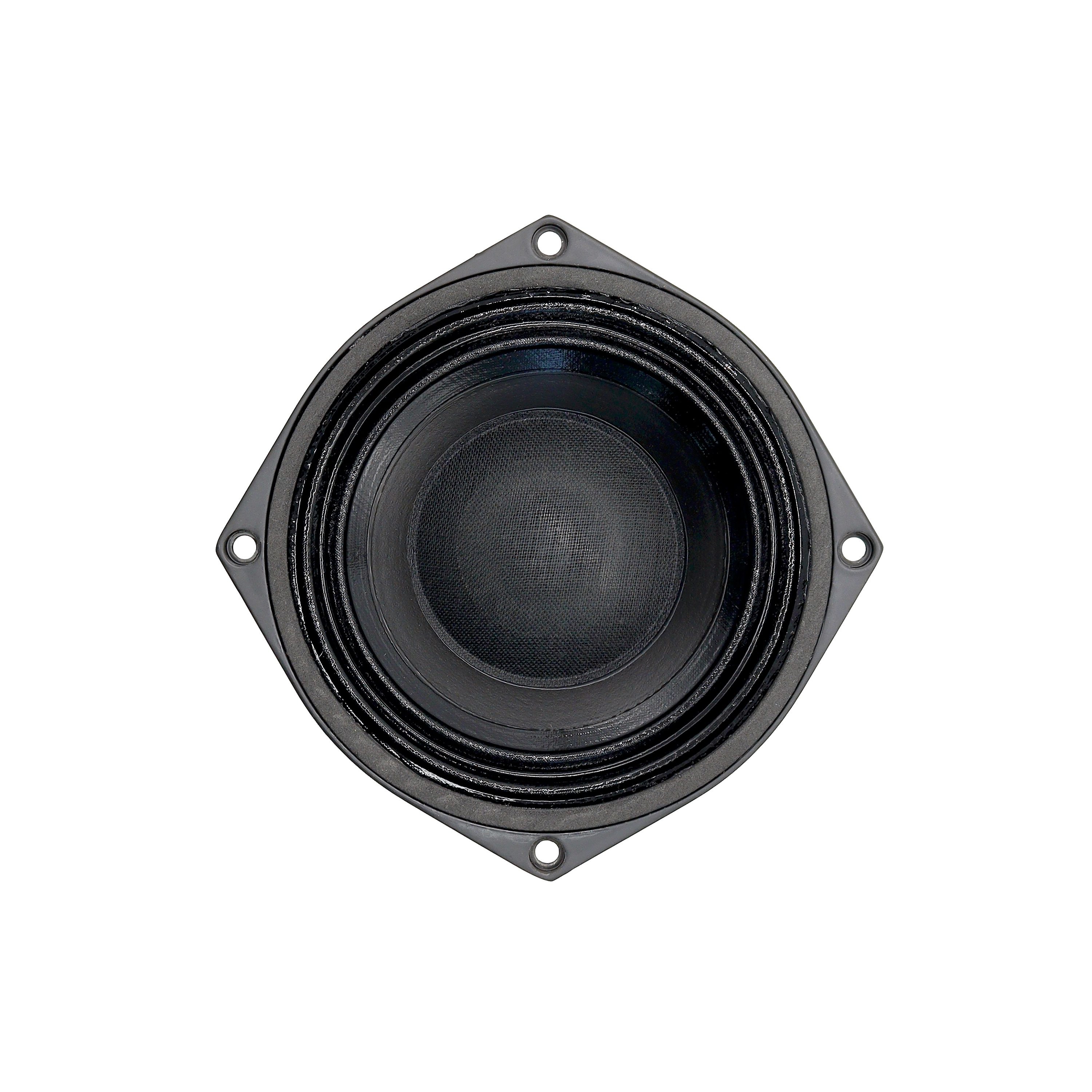

Features
 | LF | ||
| 200W continuous program power capacity | |||
| 44 mm(1.7 in) Copper voice coil | |||
| 95-6000Hz response | |||
90.5dB sensitivity | |||
| HF | |||
| 100W continuous program power capacity | |||
| 44mm(1.7 in) Aluminium voice coil | |||
| 1000-18000Hz response | |||
105dB sensitivity | |||
Specifications
| TYPE | FE COAXIAL | Minimum Impedance | 13.6Ω (LF) , 14.6Ω (HF) | |
Nominal Diameter | 127/5.0 (mm/in) | Frequency Range | 95-18000 Hz | |
| Rated Impedance | 16Ω (LF & HF) | Magnetic Material | Ferrite & Neodymium | |
| LF UNIT | ||||
| Nominal Power Handling | 100 (Watts) | Voice Coil Diameter | 44/1.7 (mm/in) | |
| Continuous Power Handling | 200 (Watts) | Winding Material | Copper | |
| Sensitivity | 90.5 (dB) | Former Material | Kapton | |
| Frequency Range | 95-6000 (HZ) | Winding Depth | 9/0.35 (mm/in) | |
Magnetic Gap Depth | 6/0.24 (mm/in) | |||
 HF UNIT | ||||
| Nominal Power Handling | 50 (Watts) | Voice Coil Diameter | 44/1.7 (mm/in) | |
| Continuous Power Handling | 100 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 105 (dB) | Former Material | Kapton | |
| Frequency Range | 1000-18000 (HZ) | Diaphragm Material | Polyimide |
| MORE→ |

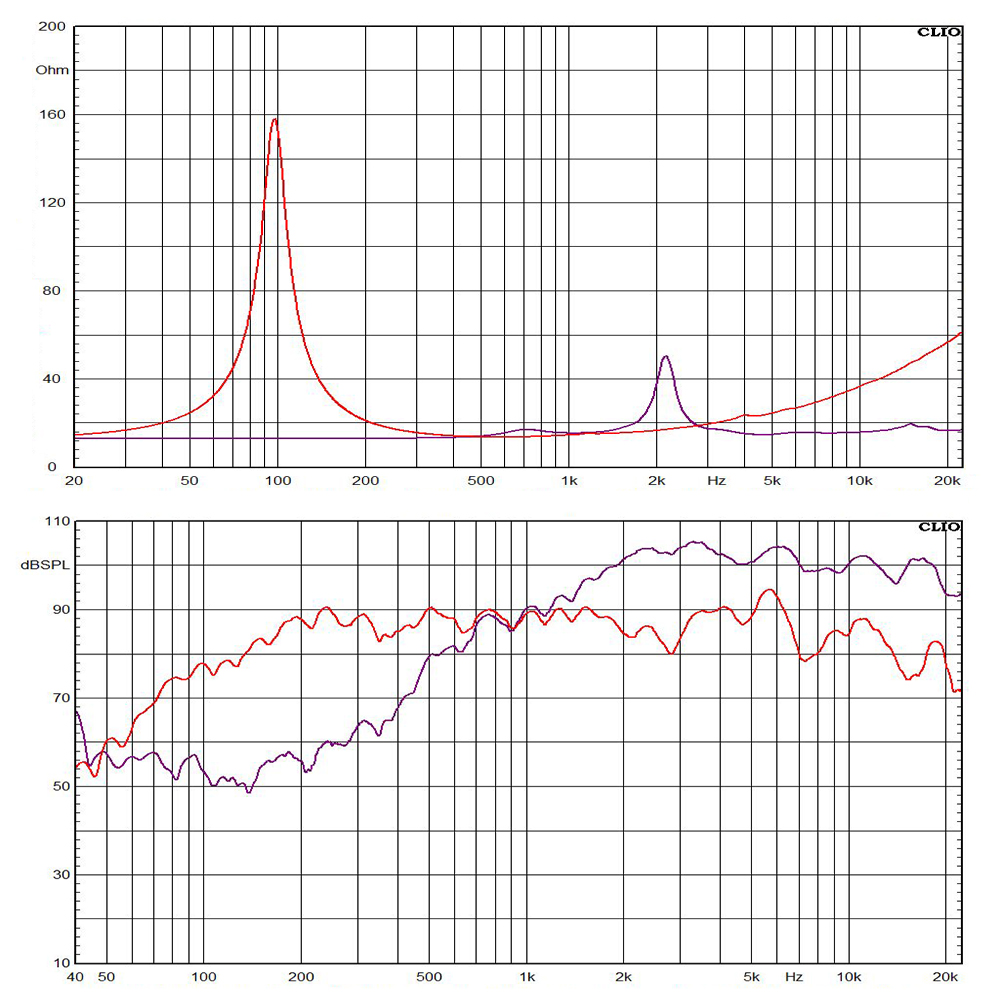

T/S PARAMETERS
| Fs | 97.5 (Hz) | Mms | 8.6 (g) | |
| Re | 11.1 (ohm) | Vas | 32 (liters) | |
| Qms | 5.53 | Sd | 86 (cm2) | |
| Qes | 0.42 | L1kHz | 0.36 (mh) | |
| Qts | 0.39 | Xmax | ±3 (mm) | |
| Bl | 11.9 (T.M) | EBP | 232 (hz) |
Mounting And Shipping
| Overall Diameter | 155/6.1 (mm/in) | Speaker Depth | 119/4.7 (mm/in) | |
| Bolt Circle Diameter | 142/5.6 (mm/in) | Flange And Gasket Thickness | 9/0.35 (mm/in) | |
| Mount Baffle Cut-out | 122/4.8 (mm/in) | N.W.(1 pc) | 2.5 / 5.5 (kg/lb) | |
| Mounting Hole | 4 | G.W. (4 pc) | 10.6 / 23.3 (kg/lb) | |
| Shipping Size (4 pc) | 295x380x145 (mm) | |||
