Features
 |
97 dB sensitivity | ||

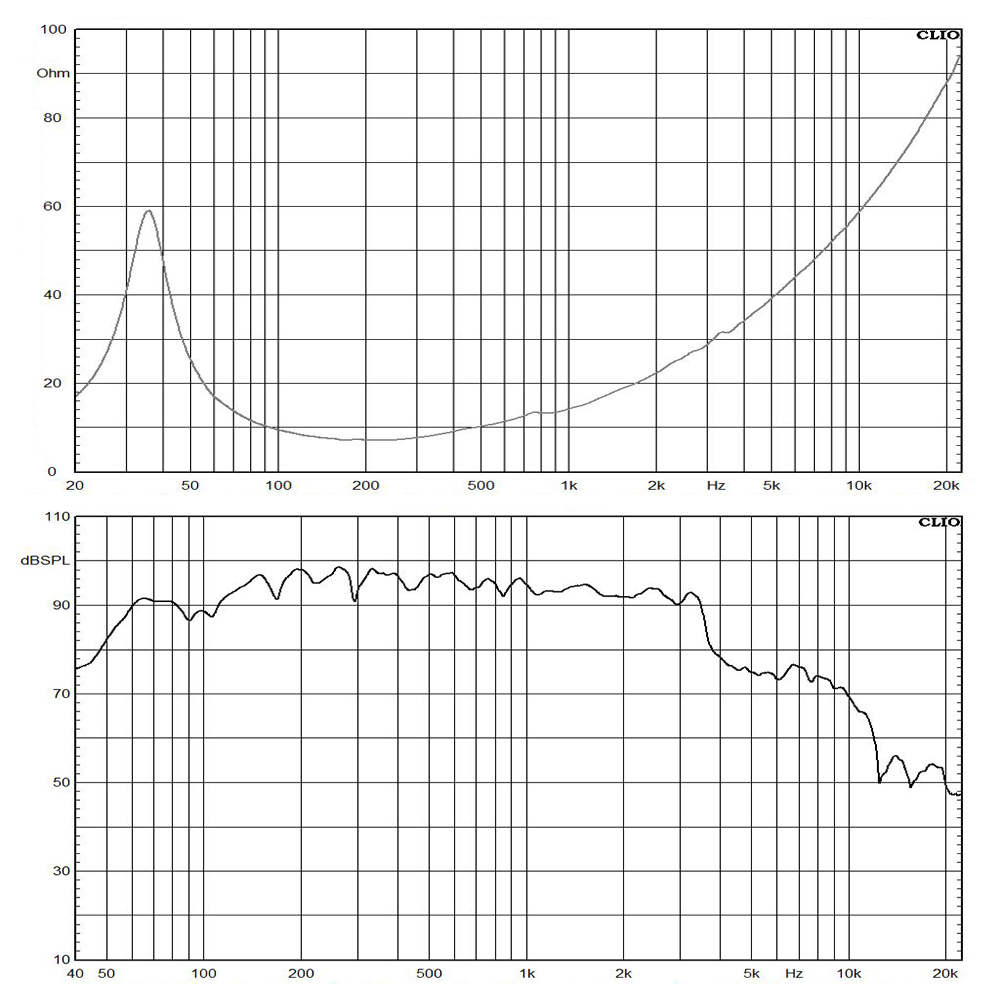

| 35-2000 Hz response | |||
| 76mm(3.0 in) copper voice coil | |||
| 1000W continuous program power capacity | |||
Specifications
| TYPE |
ND WOOFER |
Frequency Range | 35-2000 (Hz) | |
| Nominal Diameter |
380/15 (mm/in) |
Voice Coil Diameter | 76/3.0 (mm/in) | |
| Rated Impedance |
8 (ohm) | Winding Material |
Copper | |
| Minimum Impedance | 7.1 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 500 (Watts) | Winding Depth |
34.6/1.36 (mm/in) |
|
| Continuous Power Handling | 1000 (Watts) | Magnetic Gap Depth |
16.5/0.65 (mm/in) |
|
| Sensitivity | 97 (dB) | Magnetic Material |
Neodymium Inside Slug |
| MORE→ |
Thiele & Small Parameters
| Fs |
35 (Hz) | Mms |
134 (g) | |
| Re |
5.2 (ohm) | Vas |
170 (liters) | |
| Qms |
3.2 | Sd |
908 (cm2) | |
| Qes |
0.3 | L1kHz |
1.15 (mh) | |
| Qts |
0.28 | Xmax |
±13.2 (mm) | |
| Bl |
22.5 (T.M) | EBP |
117 (Hz) |
Mounting And Shipping
| Overall Diameter | 387/15.24 (mm/in) | Flange And Gasket Thickness | 13/0.5 (mm/in) | |
| Bolt Circle Diameter | 372/14.65 (mm/in) | N.W. (1 pc) | 4.8 / 10.6 (kg/lb) | |
| Mount Baffle Cut-out | 354/13.94 (mm/in) | G.W. (1 pc) | 6 / 13.3 (kg/lb) | |
| Speaker Depth | 207/78.15 (mm/in) | Shipping Size (1 pc) | 430x420x220 (mm) |
|
| Mounting Hole | 8 | |||
