| Impedance: | |
|---|---|
| Quantity: | |
Features
 |
97 dB sensitivity | ||

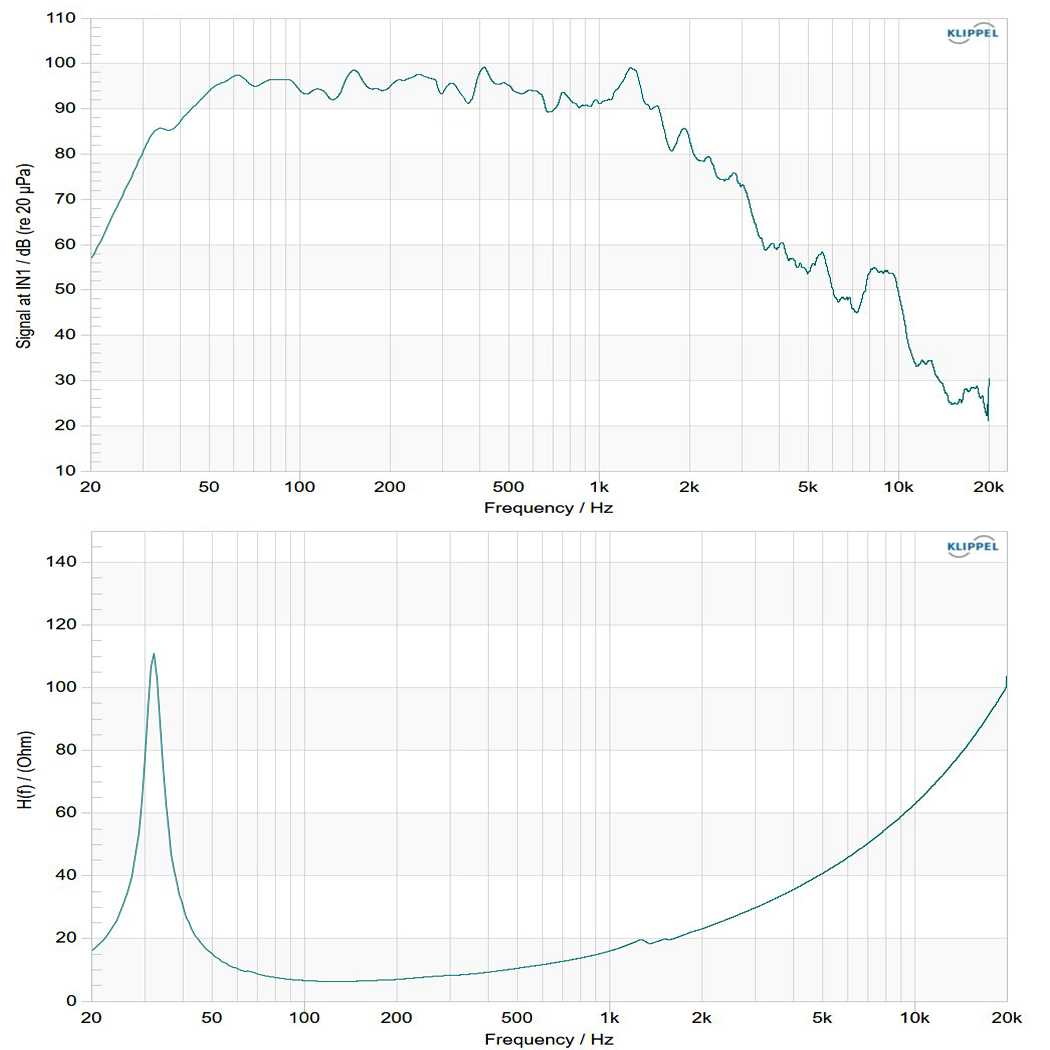

 32-1500 Hz response |
|||
| 116mm(4.5 in) copper voice coil | |||
| 3400W continuous program power capacity | |||
Specifications
| TYPE |
ND SUBWOOFER |
Frequency Range | 32-1500 (Hz) | |
| Nominal Diameter |
460/18 (mm/in) |
Voice Coil Diameter | 116/4.5 (mm/in) | |
| Rated Impedance |
8 (ohm) | Winding Material |
Copper | |
| Minimum Impedance | 6.3 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 1700 (Watts) | Winding Depth |
35/1.38 (mm/in) |
|
| Continuous Power Handling | 3400 (Watts) | Magnetic Gap Depth |
14/0.55 (mm/in) |
|
| Sensitivity | 97 (dB) | Magnetic Material |
Neodymium Inside Slug |
| MORE→ |
Thiele & Small Parameters
| Fs |
32 (Hz) | Mms |
280 (g) | |
| Re |
5.4 (ohm) | Vas |
176 (liters) | |
| Qms |
7.9 | Sd |
1188 (cm2) | |
| Qes |
0.4 | L1kHz |
1.8 (mh) | |
| Qts |
0.38 | Xmax |
±14 (mm) | |
| Bl |
27.3 (T.M) | EBP |
80 (Hz) |
Mounting And Shipping
| Overall Diameter | 460/18 (mm/in) | Flange And Gasket Thickness | 16/0.62 (mm/in) | |
| Bolt Circle Diameter | 443/17.4 (mm/in) | N.W. (1 pc) | 11.6 / 25.5 (mm/lb) | |
| Mount Baffle Cut-out | 422/16.6 (mm/in) | G.W. (1 pc) | 15.5 / 34.1 (kg/lb) | |
| Speaker Depth | 242/9.5 (mm/in) | Shipping Size (1 pc) | 550x550x320 (mm) |
|
| Mounting Hole | 8 | |||
| MORE→ |
Datasheet Downloads
