Features
 | 98 dB sensitivity | ||

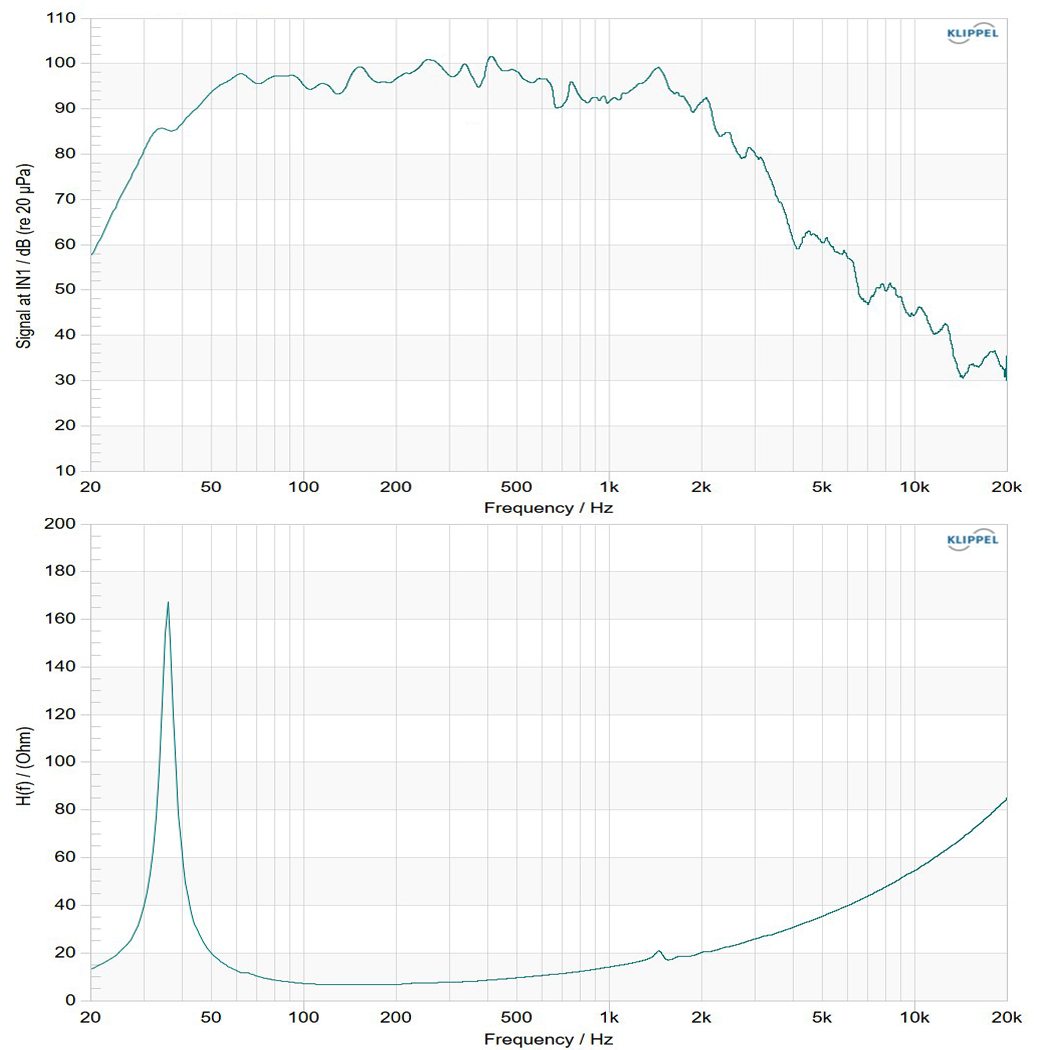

 35-1000 Hz response | |||
| 100mm(4.0 in) copper voice coil | |||
| 2600W continuous program power capacity | |||
Specifications
| TYPE | ND SUBWOOFER | Frequency Range | 35-1000 (Hz) | |
| Nominal Diameter | 460/18 (mm/in) | Voice Coil Diameter | 100/4.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Copper | |
| Minimum Impedance | 6.6 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 1300 (Watts) | Winding Depth | 25/0.98 (mm/in) | |
| Continuous Power Handling | 2600 (Watts) | Magnetic Gap Depth | 14/0.55 (mm/in) | |
| Sensitivity | 98 (dB) | Magnetic Material | Neodymium Ring |
| MORE→ |
Thiele & Small Parameters
| Fs | 36 (Hz) | Mms | 241 (g) | |
| Re | 5.3 (ohm) | Vas | 168 (liters) | |
| Qms | 14.9 | Sd | 1231 (cm2) | |
| Qes | 0.42 | L1kHz | 1.56 (mh) | |
| Qts | 0.41 | Xmax | ±9 (mm) | |
| Bl | 26.3 (T.M) | EBP | 86 (Hz) |
Mounting And Shipping
| Overall Diameter | 460/18.0 (mm/in) | Flange And Gasket Thickness | 16/0.62 (mm/in) | |
| Bolt Circle Diameter | 440/17.3 (mm/in) | N.W. (1 pc) | 8.7 / 19.1 (mm/lb) | |
| Mount Baffle Cut-out | 420/16.5 (mm/in) | G.W. (1 pc) | 12.2 / 26.9 (kg/lb) | |
| Speaker Depth | 209/8.2 (mm/in) | Shipping Size (1 pc) | 560x560x280 (mm) | |
| Mounting Hole | 8 | |||
