Features
 |
96 dB sensitivity | ||

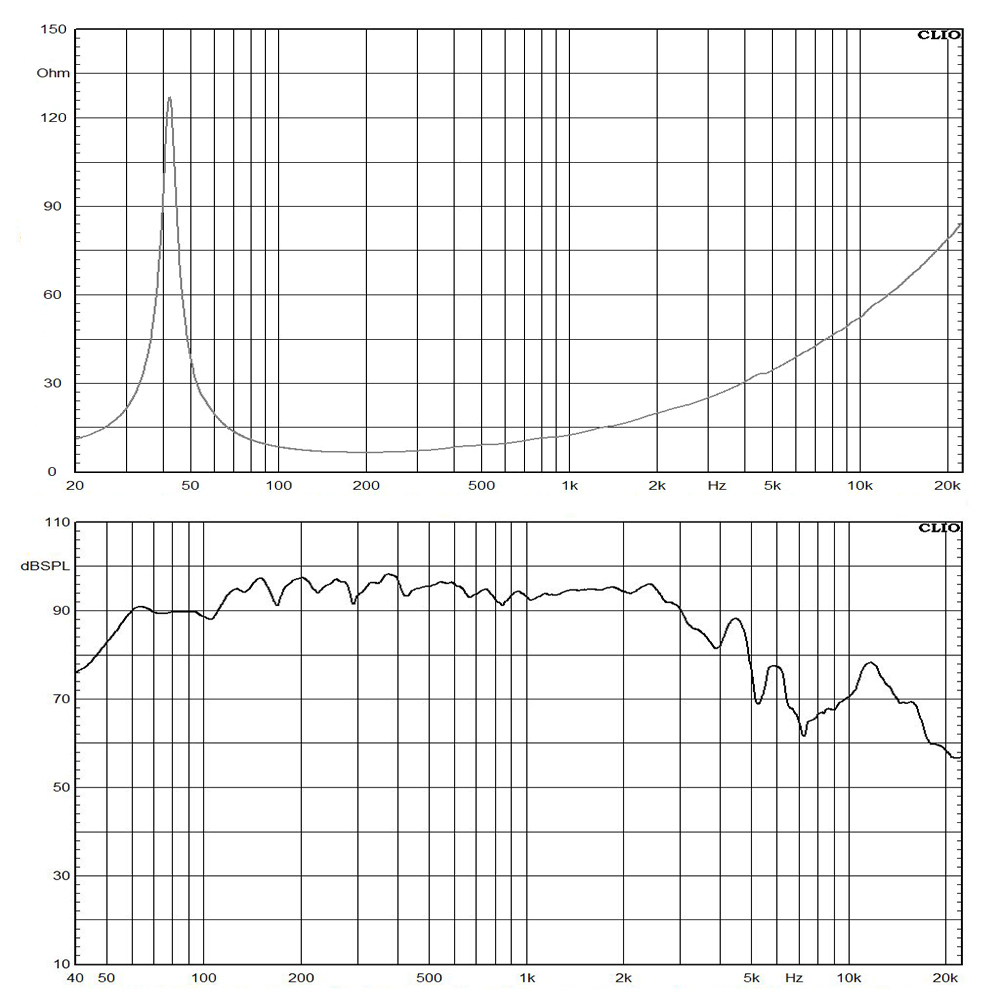

 40-1500 Hz response |
|||
| 100mm(4.0 in) Aluminium voice coil | |||
| 1400W continuous program power capacity | |||
Specifications
| TYPE |
FE WOOFER |
Frequency Range | 40-2000 (Hz) | |
| Nominal Diameter |
380/15 (mm/in) |
Voice Coil Diameter | 100/4.0 (mm/in) | |
| Rated Impedance |
8 (ohm) | Winding Material |
Aluminium | |
| Minimum Impedance | 6.5 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 700 (Watts) | Winding Depth |
20.5/0.81 (mm/in) |
|
| Continuous Power Handling | 1400 (Watts) | Magnetic Gap Depth |
12/0.47 (mm/in) |
|
| Sensitivity | 96 (dB) | Magnetic Material |
Ferrite ring |
| MORE→ |
Thiele & Small Parameters
| Fs |
42 (Hz) | Mms |
126 (g) | |
| Re |
5.0 (ohm) | Vas |
118 (liters) | |
| Qms |
9.2 | Sd |
866 (cm2) | |
| Qes |
0.38 | L1kHz |
1.35 (mh) | |
| Qts |
0.36 | Xmax |
±7.25 (mm) | |
| Bl |
21.1 (T.M) | EBP |
111 (Hz) |
Mounting And Shipping
| Overall Diameter | 395/15.6 (mm/in) | Flange And Gasket Thickness | 15/0.59 (mm/in) | |
| Bolt Circle Diameter | 374/14.7 (mm/in) | N.W. (1 pc) | 11.6 / 25.6 (mm/in) | |
| Mount Baffle Cut-out | 355/14.0 (mm/in) | G.W. (1 pc) | 13.4 / 29.6 (kg/lb) | |
| Speaker Depth | 180/7.1 (mm/in) | Shipping Size (1 pc) | 460x460x260 (mm) |
|
| Mounting Hole | 8 | |||
| MORE→ |
