| Quantity: | |
|---|---|
Features
 |
99 dB sensitivity | ||

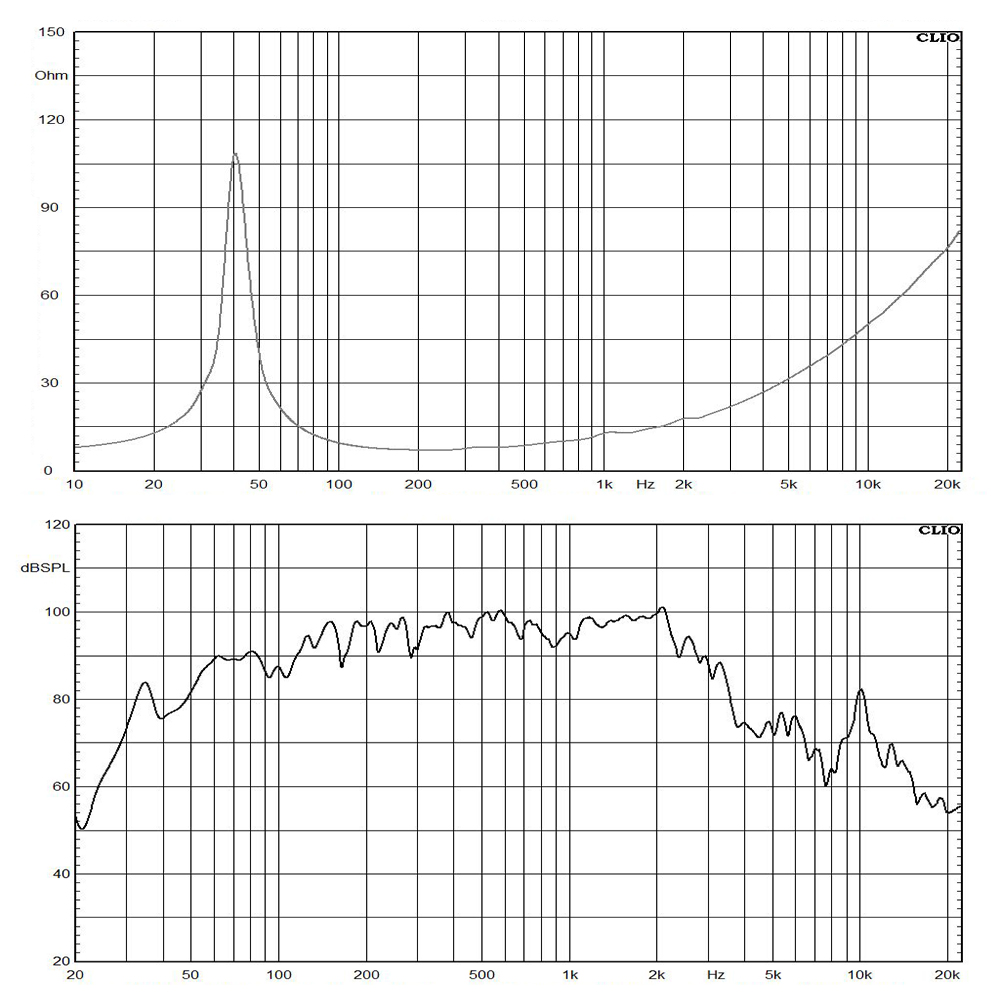

| 35-2000 Hz response | |||
| 100mm(4.0 in) copper voice coil | |||
| 1600W continuous program power capacity | |||
Specifications
| TYPE |
ND WOOFER |
Frequency Range | 35-2000 (Hz) | |
| Nominal Diameter |
380/15 (mm/in) |
Voice Coil Diameter | 100/4.0 (mm/in) | |
| Rated Impedance |
8 (ohm) | Winding Material |
Copper | |
| Minimum Impedance | 7.0 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 800 (Watts) | Winding Depth |
25/0.98 (mm/in) |
|
| Continuous Power Handling | 1600 (Watts) | Magnetic Gap Depth |
10/0.39 (mm/in) |
|
| Sensitivity | 99 (dB) | Magnetic Material |
Neodymium |
| MORE→ |
Thiele & Small Parameters
| Fs |
40 (Hz) | Mms |
133 (g) | |
| Re |
5.2 (ohm) | Vas |
121 (liters) | |
| Qms |
6.32 | Sd |
870 (cm2) | |
| Qes |
0.31 | L1kHz |
1.3 (mh) | |
| Qts |
0.3 | Xmax |
±10 (mm) | |
| Bl |
23.6 (T.M) | EBP |
129 (Hz) |
Mounting And Shipping
| Overall Diameter | 380/14.9 (mm/in) | Flange And Gasket Thickness | 14/0.55 (mm/in) | |
| Bolt Circle Diameter | 388/15.2 (mm/in) | N.W. (1 pc) | 5.8 / 12.7 (mm/in) | |
| Mount Baffle Cut-out | 353/13.9 (mm/in) | G.W. (1 pc) | 7.5/16.5 (kg/lb) | |
| Speaker Depth | 189/7.44 (mm/in) | Shipping Size (1 pc) | 460x460x270 (mm) |
|
| Mounting Hole | 8 | |||
| MORE→ |
