| Quantity: | |
|---|---|
Features
 |
99 dB sensitivity | ||

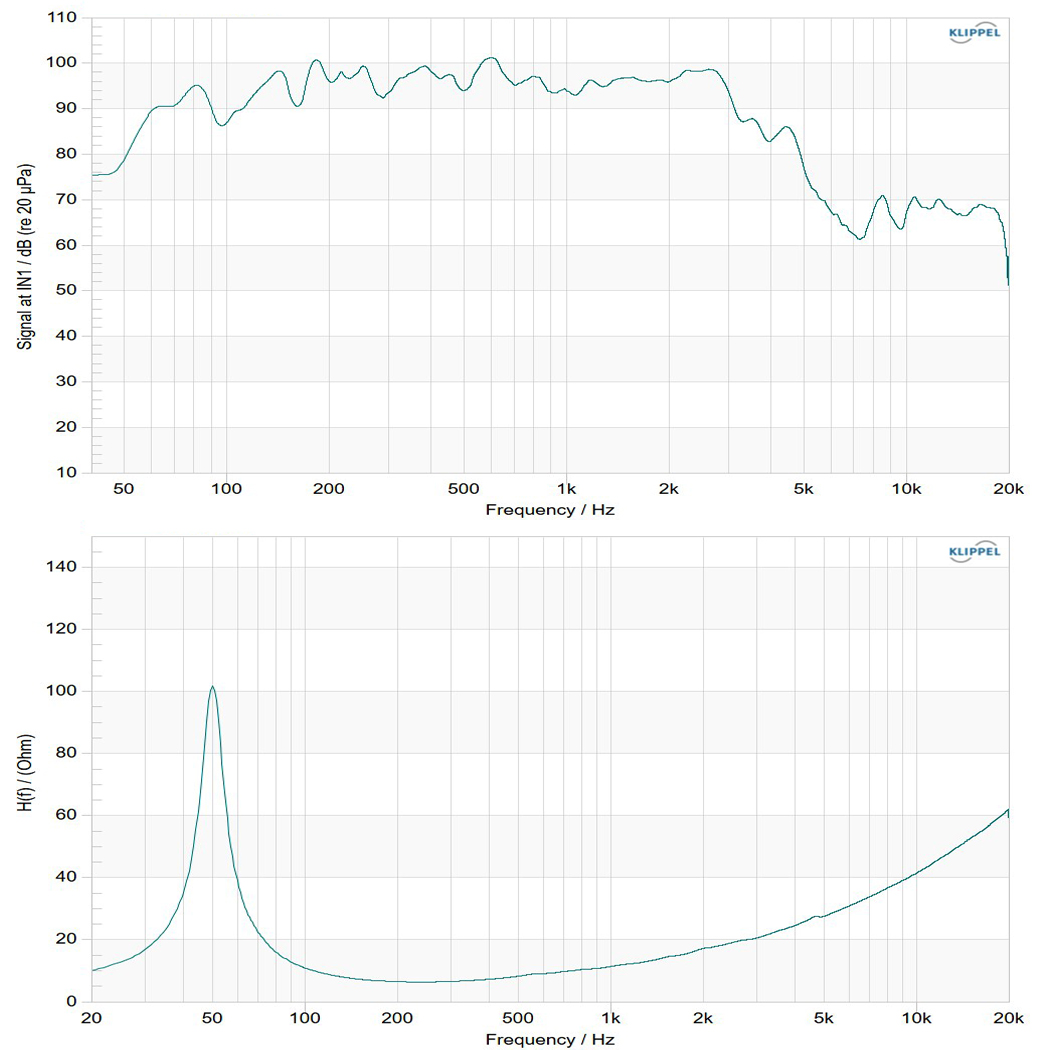

| 50-2000 Hz response | |||
| 76mm(3.0 in) Aluminium voice coil | |||
| 700W continuous program power capacity | |||
Specifications
| TYPE |
FE WOOFER |
Frequency Range | 50-2000 (Hz) | |
| Nominal Diameter |
320/12 (mm/in) |
Voice Coil Diameter | 76/3.0 (mm/in) | |
| Rated Impedance |
8 (ohm) | Winding Material |
Aluminium | |
| Minimum Impedance | 6.4 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 350 (Watts) | Winding Depth |
17/0.67 (mm/in) |
|
| Continuous Power Handling | 700 (Watts) | Magnetic Gap Depth |
11/0.43 (mm/in) |
|
| Sensitivity | 99 (dB) | Magnetic Material |
Ferrite Ring |
| MORE→ |
Thiele & Small Parameters
| Fs |
50 (Hz) | Mms |
57 (g) | |
| Re |
5.6 (ohm) | Vas |
70 (liters) | |
| Qms |
6.48 | Sd |
530 (cm2) | |
| Qes |
0.36 | L1kHz |
1.15 (mh) | |
| Qts |
0.34 | Xmax |
±5.8 (mm) | |
| Bl |
16.5 (T.M) | EBP |
139 (Hz) |
Mounting And Shipping
| Overall Diameter | 315/12.4 (mm/in) | Flange And Gasket Thickness | 14/0.55 (mm/in) | |
| Bolt Circle Diameter | 300/11.81 (mm/in) | N.W. (1 pc) | 7.6 / 16.7 (kg/lb) | |
| Mount Baffle Cut-out | 283/11.11 (mm/in) | G.W. (2 pcs) | 18.3 / 40.3 (kg/lb) | |
| Speaker Depth | 147/5.79 (mm/in) | Shipping Size (2 pcs) | 370x370x430 (mm) |
|
| Mounting Hole | 8 | |||
| MORE→ |
Datasheet Downloads
