Features
 | 100 dB sensitivity | ||

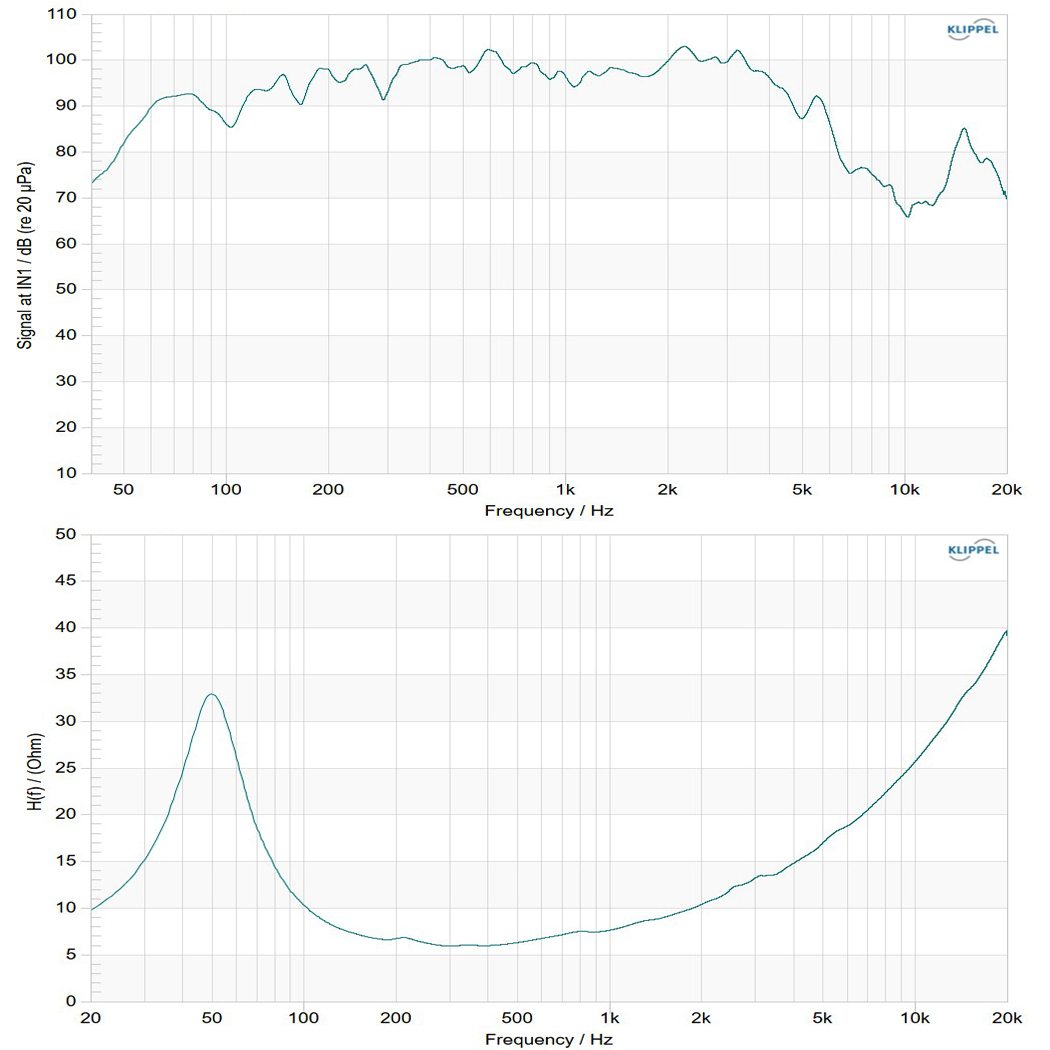

 50-2000 Hz response | |||
| 76mm(3.0 in) aluminium voice coil | |||
| 800W continuous program power capacity | |||
Specifications
| TYPE | ND WOOFER | Frequency Range | 50-2000 (Hz) | |
| Nominal Diameter | 320/12 (mm/in) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 6 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 400 (Watts) | Winding Depth | 17.2/0.68 (mm/in) | |
| Continuous Power Handling | 800 (Watts) | Magnetic Gap Depth | 8/0.31 (mm/in) | |
| Sensitivity | 100 (dB) | Magnetic Material | Neodymium Inside Slug |
| MORE→ |
Thiele & Small Parameters
| Fs | 50 (Hz) | Mms | 64 (g) | |
| Re | 5.1 (ohm) | Vas | 65 (liters) | |
| Qms | 2.11 | Sd | 539 (cm2) | |
| Qes | 0.38 | L1kHz | 0.54 (mh) | |
| Qts | 0.32 | Xmax | ±6.6 (mm) | |
| Bl | 16.4 (T.M) | EBP | 132 (Hz) |
Mounting And Shipping
| Overall Diameter | 328/12.91 (mm/in) | Flange And Gasket Thickness | 15/0.59 (mm/in) | |
| Bolt Circle Diameter | 305/12.01 (mm/in) | N.W. (1 pc) | 3.7 / 8.2 (kg/lb) | |
| Mount Baffle Cut-out | 281/11.06 (mm/in) | G.W. (1 pc) | 5.9 / 13.0 (kg/lb) | |
| Speaker Depth | 147/5.79 (mm/in) | Shipping Size (1 pc) | 370x370x180 (mm) | |
| Mounting Hole | 8 | |||
