| Impedance: | |
|---|---|
| Quantity: | |
Features
| 94 dB sensitivity |  | ||

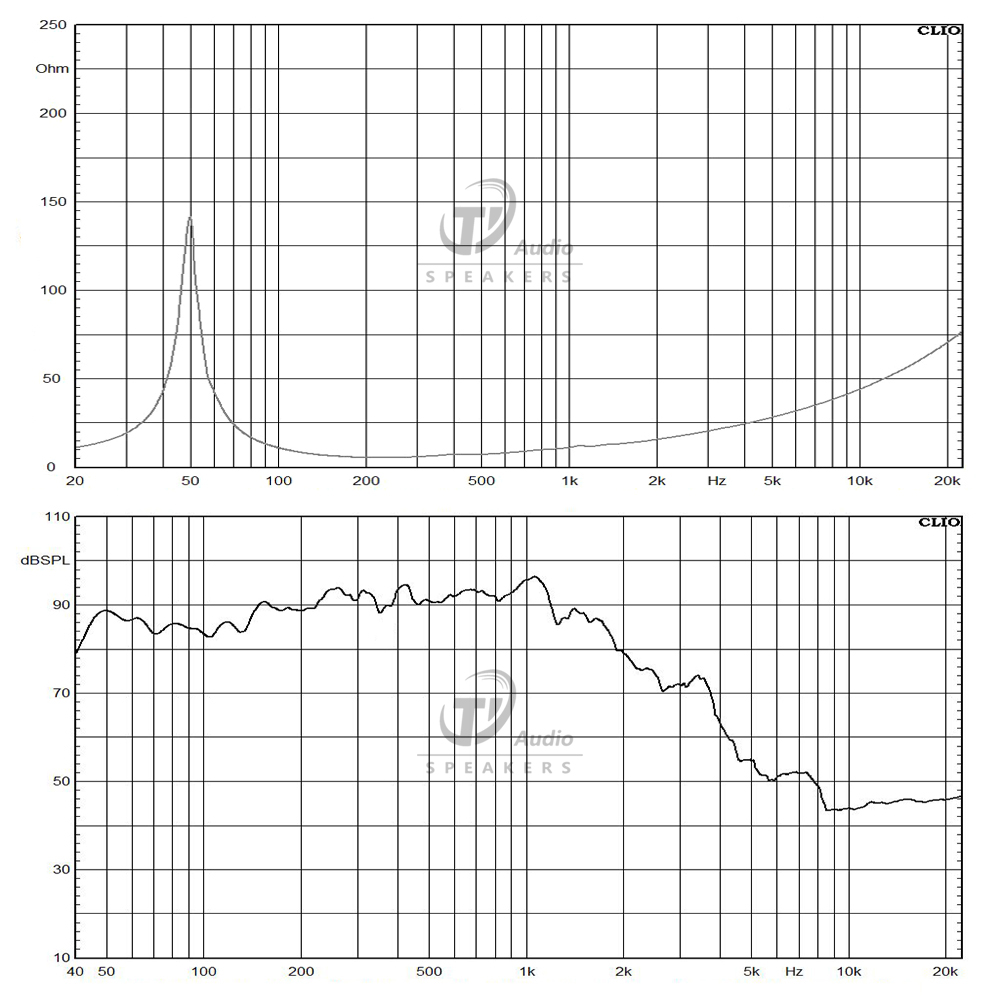

 45-1000 Hz response | |||
| 116mm(4.5 in) Aluminium voice coil | |||
| 3400W continuous program power capacity | |||
Specificatians
| TYPE | ND SUBWOOFER | Frequency Range | 45-1000 (Hz) | |
| Nominal Diameter | 320/12 (mm/in) | Voice Coil Diameter | 116/4.5 (mm/in) | |
| Rated Impedance | 4 (ohm) | Winding Material | Aluminium | |
| Minimum Impedance | 5.2 (ohm) | Former Material | Glass Fibre | |
| Nominal Power Handling | 1700 (Watts) | Winding Depth | 44/1.73 (mm/in) | |
| Continuous Power Handling | 3400 (Watts) | Magnetic Gap Depth | 14/0.55 (mm/in) | |
| Sensitivity | 94 (dB) | Magnetic Material | Neodymium Inside Slug |
Thiele & Small Parameters
| Fs | 49 (Hz) | Mms | 164 (g) | |
| Re | 3.2 (ohm) | Vas | 25 (liters) | |
| Qms | 8.35 | Sd | 539 (cm2) | |
| Qes | 0.19 | L1kHz | 1.15 (mh) | |
| Qts | 0.18 | Xmax | ±18.5 (mm) | |
| Bl | 29 (T.M) | EBP | 257 (Hz) |
Mounting And Shipping
| Overall Diameter | 315/12.4 (mm/in) | Flange And Gasket Thickness | 15/0.59 (mm/in) | |
| Bolt Circle Diameter | 300/12.4 (mm/in) | N.W. (1 pc) | 13.6 / 29.9 (kg/lb) | |
| Mount Baffle Cut-out | 283/11.1 (mm/in) | G.W. (1 pc) | 15.4 / 33.9 (kg/lb) | |
| Speaker Depth | 185/7.28 (mm/in) | Shipping Size (1 pc) | 370x370x240 (mm) | |
| Mounting Hole | 8 |
