| Impedance: | |
|---|---|
| Quantity: | |

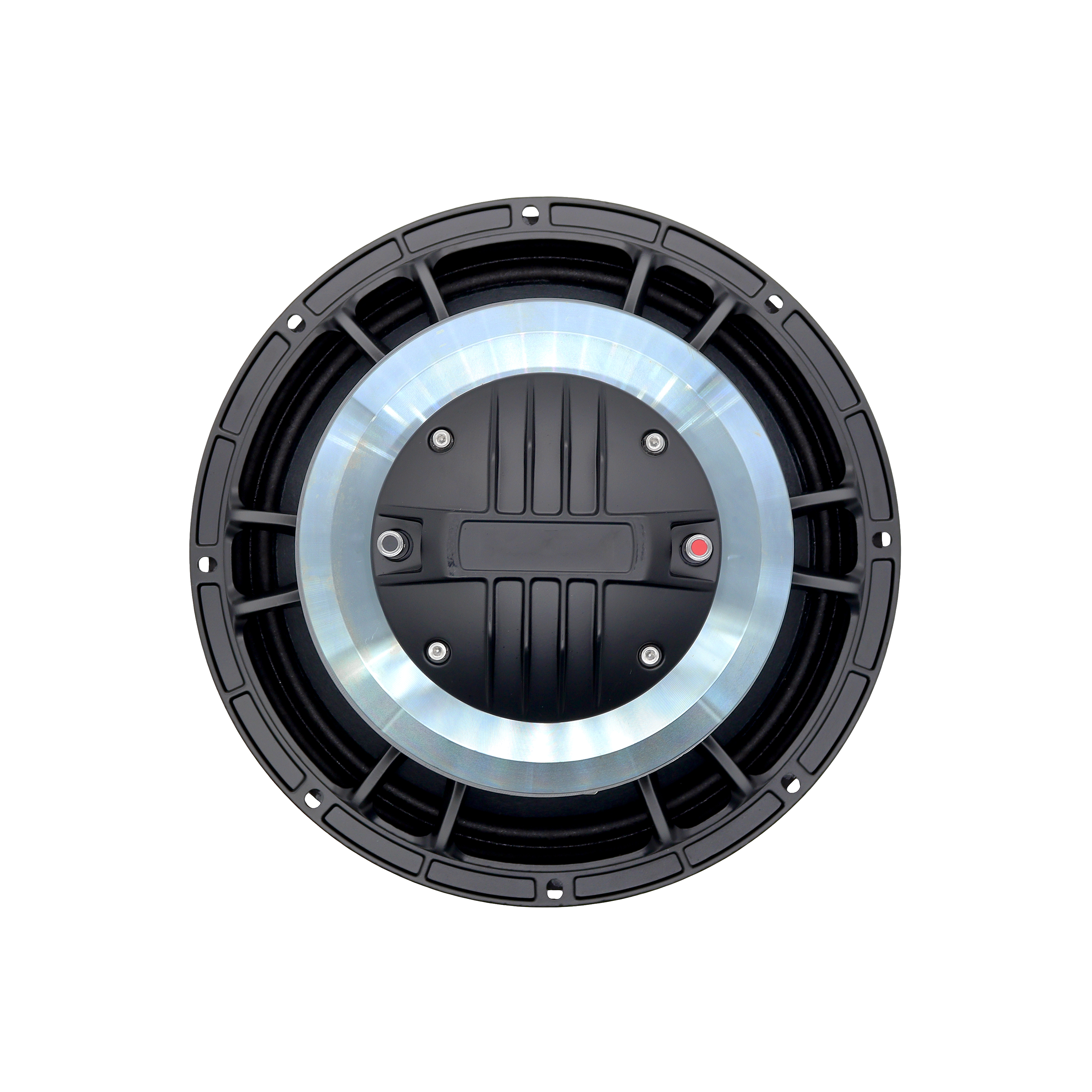

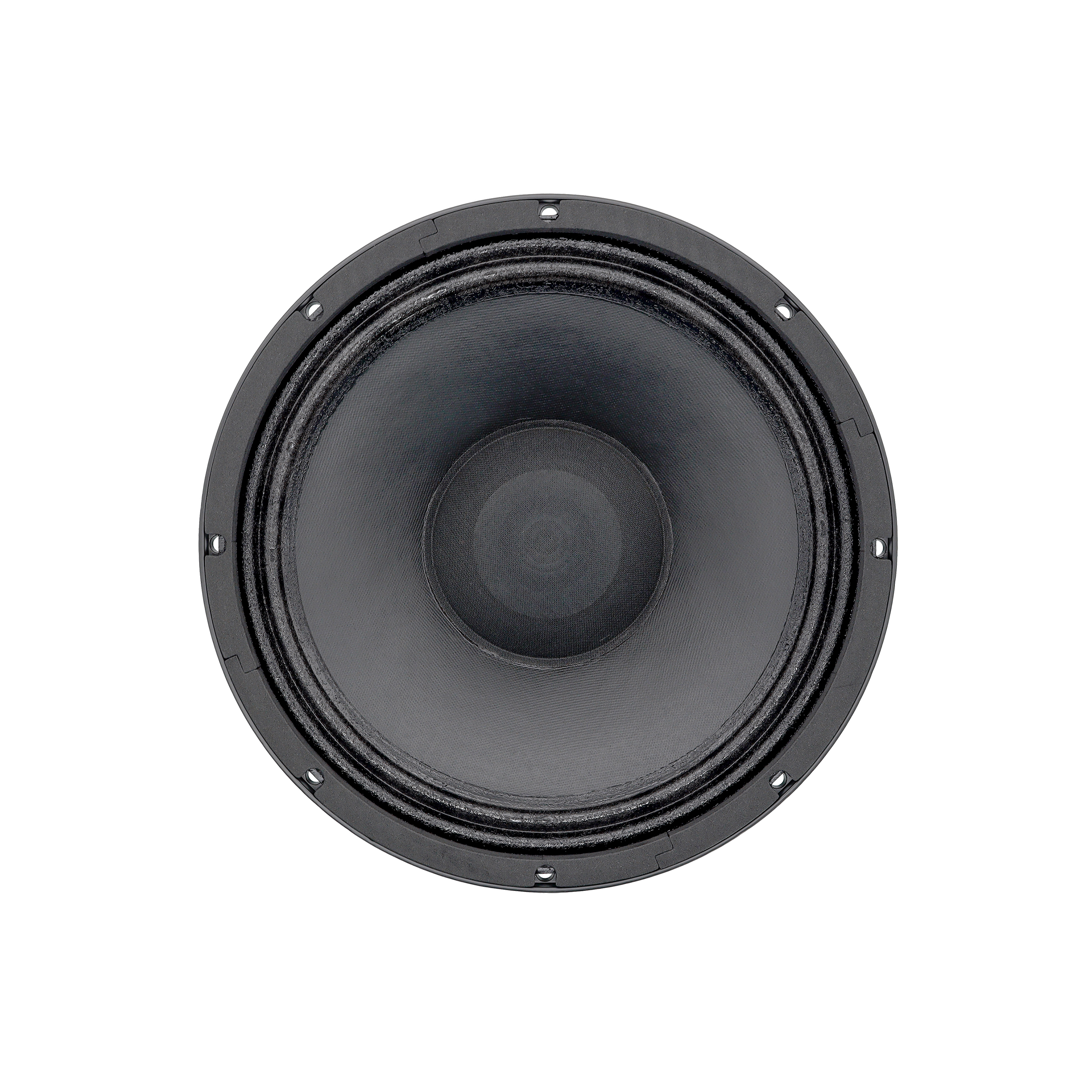

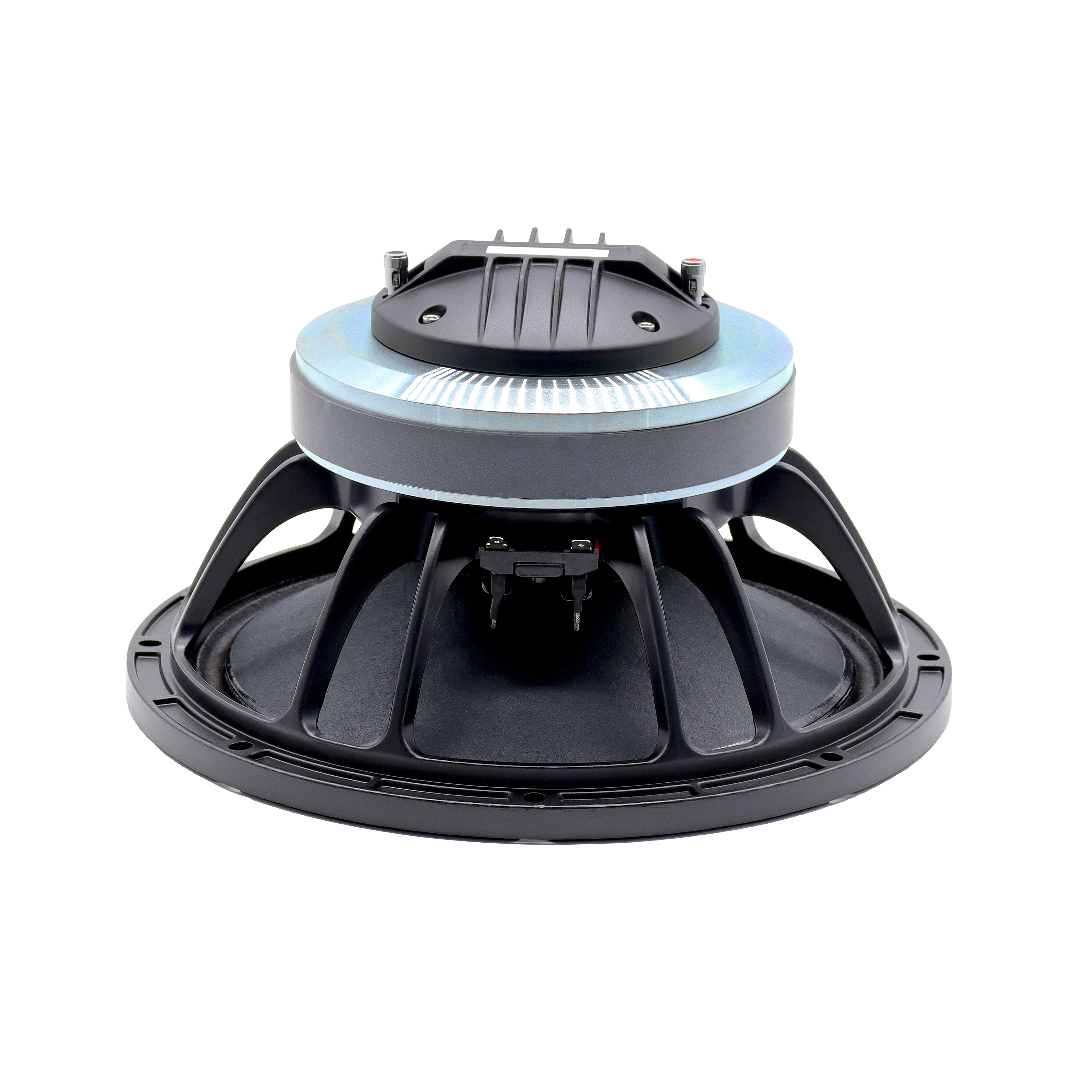

Features
 | LF | ||
| 700W continuous program power capacity | |||
| 76 mm(3.0 in) Copper voice coil | |||
| 45-1200Hz response | |||
96dB sensitivity | |||
| HF | |||
| 160W continuous program power capacity | |||
| 76mm(3.0 in) Aluminium voice coil | |||
| 1200-18000Hz response | |||
107dB sensitivity | |||

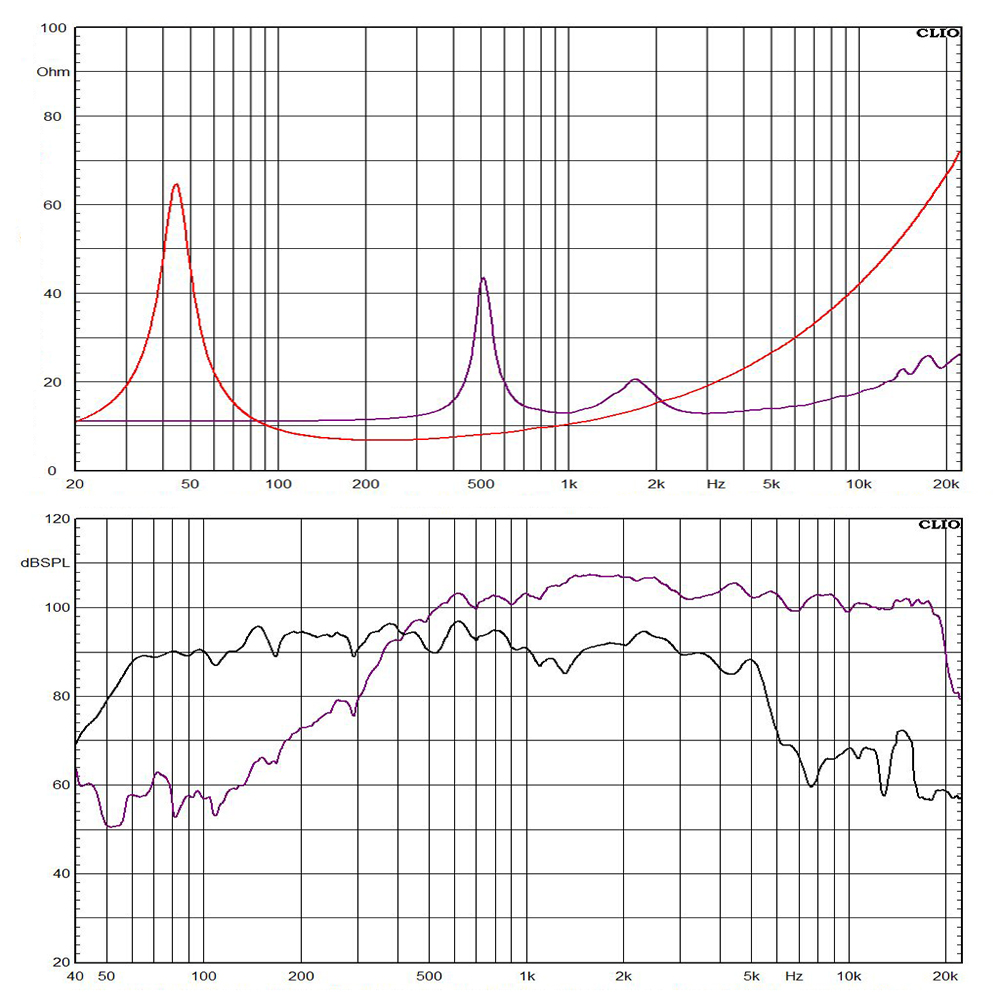

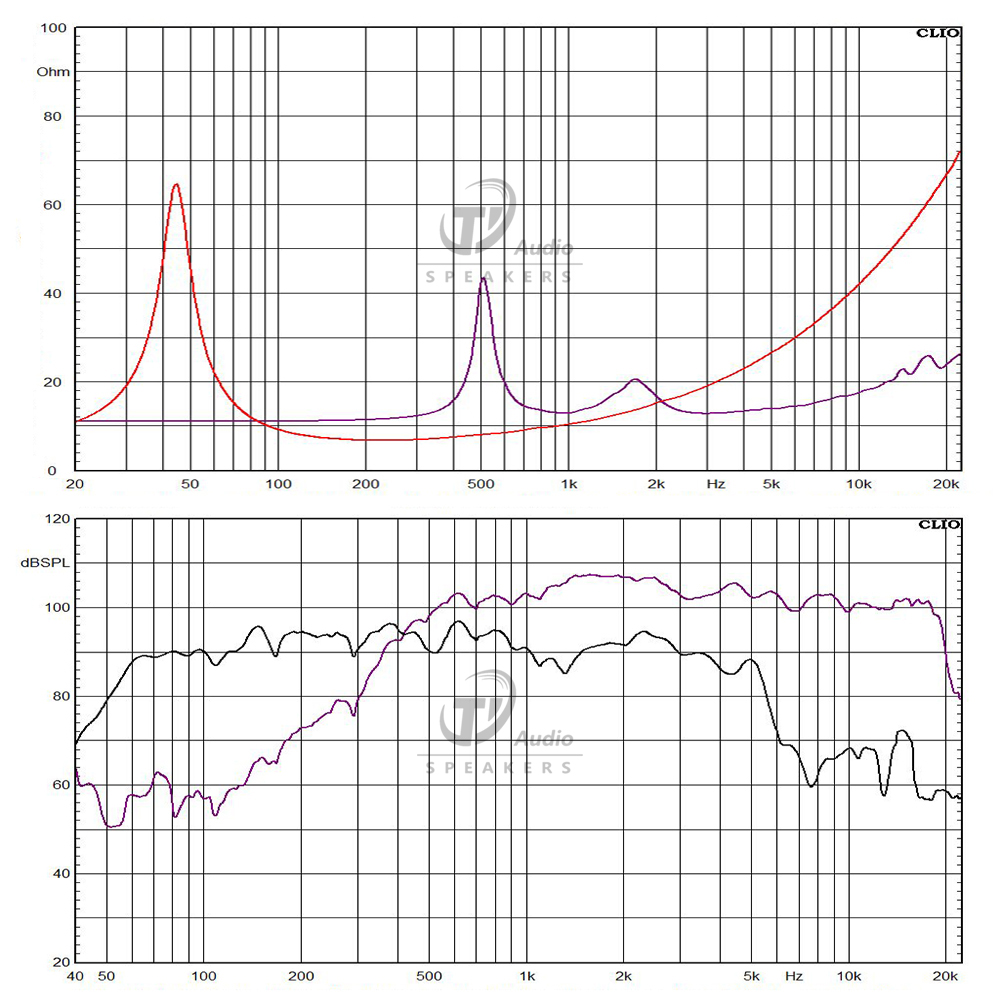

Specifications
| TYPE | FE COAXIAL | Minimum Impedance | 6.7Ω (LF) , 12.8Ω (HF) | |
Nominal Diameter | 320/12 (mm/in) | Frequency Range | 45-18000 Hz | |
| Rated Impedance | 8Ω (LF) , 16Ω (HF) | Magnetic Material | Ferrite Ring | |
| LF UNIT | ||||
| Nominal Power Handling | 350 (Watts) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Continuous Power Handling | 700 (Watts) | Winding Material | Copper | |
| Sensitivity | 96 (dB) | Former Material | Glass Fibre | |
| Frequency Range | 45-1200 (HZ) | Winding Depth | 19/0.75 (mm/in) | |
Magnetic Gap Depth | 8/0.31 (mm/in) | |||
 HF UNIT | ||||
| Nominal Power Handling | 80 (Watts) | Voice Coil Diameter | 76/3.0 (mm/in) | |
| Continuous Power Handling | 160 (Watts) | Winding Material | Aluminium | |
| Sensitivity | 107 (dB) | Former Material | Kapton | |
| Frequency Range | 1200-18000 (HZ) | Diaphragm Material | Titanium |
| MORE→ |
T/S PARAMETERS
| Fs | 44 (Hz) | Mms | 58 (g) | |
| Re | 5.2 (ohm) | Vas | 88 (liters) | |
| Qms | 3.57 | Sd | 539 (cm2) | |
| Qes | 0.4 | L1kHz | 0.94 (mh) | |
| Qts | 0.37 | Xmax | ±7.5 (mm) | |
| Bl | 14.6 (T.M) | EBP | 110 (hz) |
Mounting And Shipping
| Overall Diameter | 316/12.4 (mm/in) | Speaker Depth | 172.5/6.79 (mm/in) | |
| Bolt Circle Diameter | 298/11.7 (mm/in) | Flange And Gasket Thickness | 14/0.55 (mm/in) | |
| Mount Baffle Cut-out | 284/11.2 (mm/in) | N.W.(1 pc) | 8.5 / 18.7 (kg/lb) | |
| Mounting Hole | 8 | G.W. (1 pc) | 10.5 / 23.1 (kg/lb) | |
| Shipping Size (1 pc) | 370x370x280 (mm) | |||
| MORE→ |
