| Impedance: | |
|---|---|
| Quantity: | |
Features
 |
96 dB sensitivity | ||

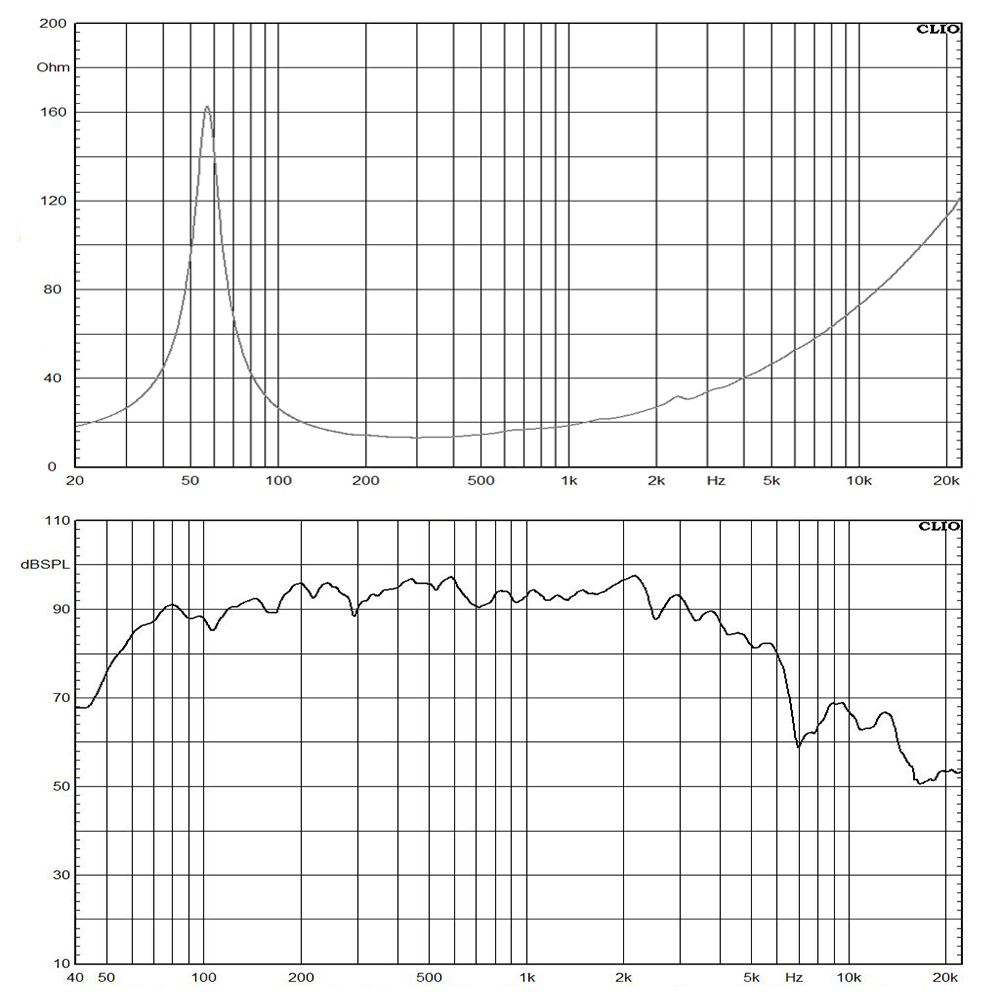

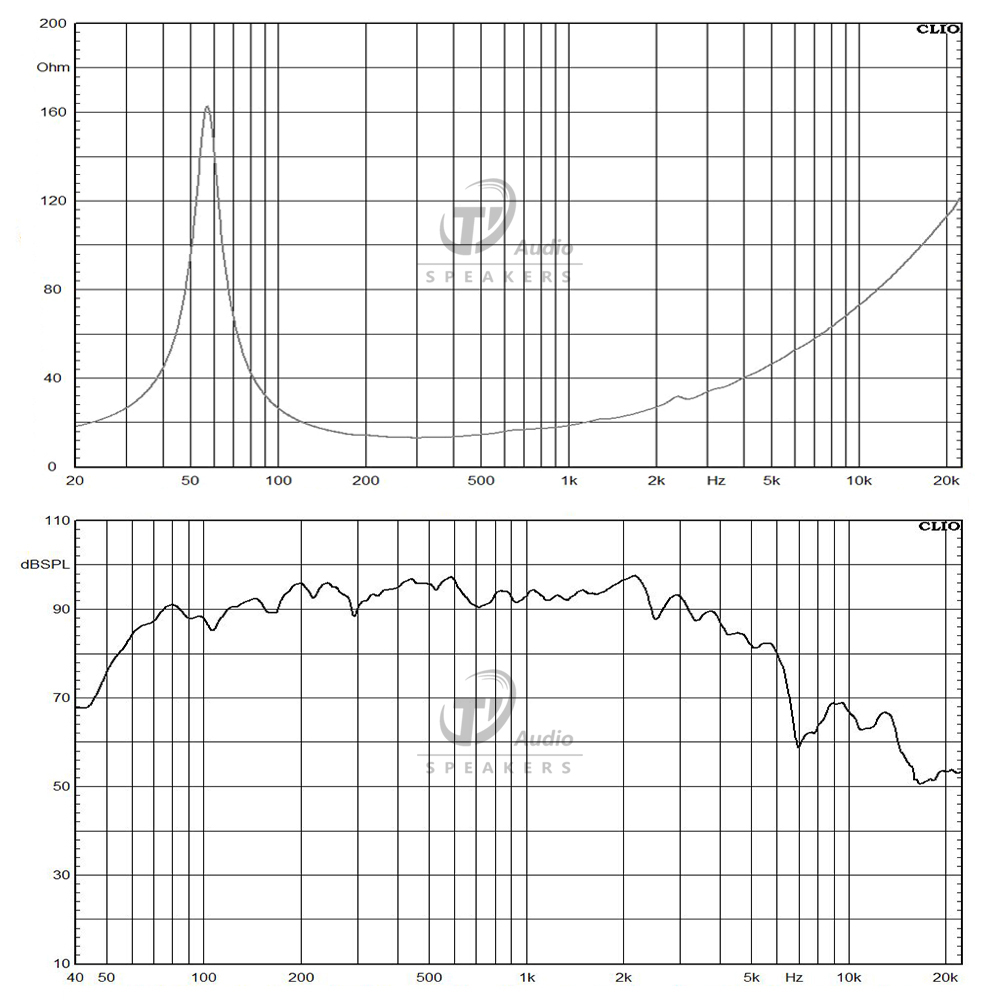

| 55-2000 Hz response | |||
| 65mm(2.5 in) Copper voice coil | |||
| 600W continuous program power capacity | |||
Specifications
| TYPE |
ND WOOFER |
Frequency Range | 55-2000 (Hz) | |
| Nominal Diameter |
250/10 (mm/in) |
Voice Coil Diameter | 65/2.5 (mm/in) | |
| Rated Impedance |
16 (ohm) | Winding Material |
Copper | |
| Minimum Impedance | 13 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 300 (Watts) | Winding Depth |
18.2/0.72 (mm/in) |
|
| Continuous Power Handling | 600 (Watts) | Magnetic Gap Depth |
8/0.31 (mm/in) |
|
| Sensitivity | 96 (dB) | Magnetic Material |
Neodymium Ring |
| MORE→ |
Thiele & Small Parameters
| Fs |
57 (Hz) | Mms |
45 (g) | |
| Re |
10.8 (ohm) | Vas |
30 (liters) | |
| Qms |
5.43 | Sd |
353 (cm2) | |
| Qes |
0.39 | L1kHz |
1.55 (mh) | |
| Qts |
0.36 | Xmax |
±7.1 (mm) | |
| Bl |
21.1 (T.M) | EBP |
146 (Hz) |
Mounting And Shipping
| Overall Diameter | 261/10.3 (mm/in) | Flange And Gasket Thickness | 14/0.55 (mm/in) | |
| Bolt Circle Diameter | 245/9.6 (mm/in) | N.W. (1 pc) | 3.0 / 6.7 (kg/lb) | |
| Mount Baffle Cut-out | 232/9.1 (mm/in) | G.W. (2 pcs) | 8.5 / 19.4 (kg/lb) | |
| Speaker Depth | 115/4.5 (mm/in) | Shipping Size (2 pcs) | 320x320x380 (mm) |
|
| Mounting Hole | 4 | |||
