Features
 |
97.5 dB sensitivity | |

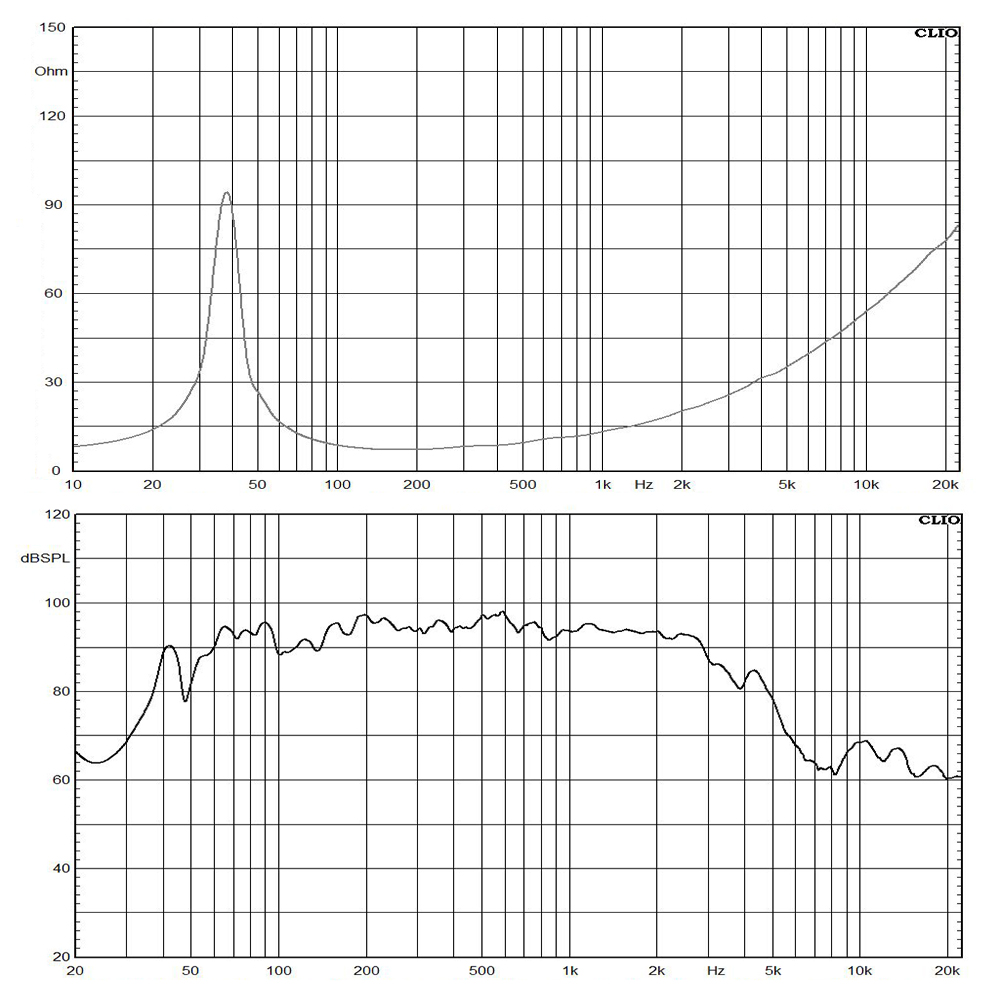

 40-2000 Hz response |
||
| 76mm(3.0 in) copper voice coil | ||
| 1000W continuous program power capacity | ||
Specifications
| TYPE |
FE WOOFER |
Frequency Range | 40-2000 (Hz) | |
| Nominal Diameter |
380/15 (mm/in) |
Voice Coil Diameter | 76/3.0 (mm/in) | |
| Rated Impedance |
8 (ohm) | Winding Material |
Copper | |
| Minimum Impedance | 7 (ohm) | Former Material |
Glass Fibre | |
| Nominal Power Handling | 500 (Watts) | Winding Depth |
16/0.62 (mm/in) |
|
| Continuous Power Handling | 1000 (Watts) | Magnetic Gap Depth |
11/0.43 (mm/in) |
|
| Sensitivity | 97.5 (dB) | Magnetic Material |
Ferrite ring |
| MORE→ |
Thiele & Small Parameters
| Fs |
38 (Hz) | Mms |
107 (g) | |
| Re |
5.3 (ohm) | Vas |
175 (liters) | |
| Qms |
5.9 | Sd |
876 (cm2) | |
| Qes |
0.35 | L1kHz |
1.3 (mh) | |
| Qts |
0.33 | Xmax |
±5.3 (mm) | |
| Bl |
19.5 (T.M) | EBP |
108 (Hz) |
Mounting And Shipping
| Overall Diameter | 395/15.5 (mm/in) | Flange And Gasket Thickness | 13/0.51 (mm/in) | |
| Bolt Circle Diameter | 374/14.7 (mm/in) | N.W. (1 pc) | 8.6 / 19.0 (mm/in) | |
| Mount Baffle Cut-out | 355/13.9 (mm/in) | G.W. (1 pc) | 11.9 / 26.2 (kg/lb) | |
| Speaker Depth | 169/6.65 (mm/in) | Shipping Size (1 pc) | 460x460x270 (mm) |
|
| Mounting Hole | 8 | |||
